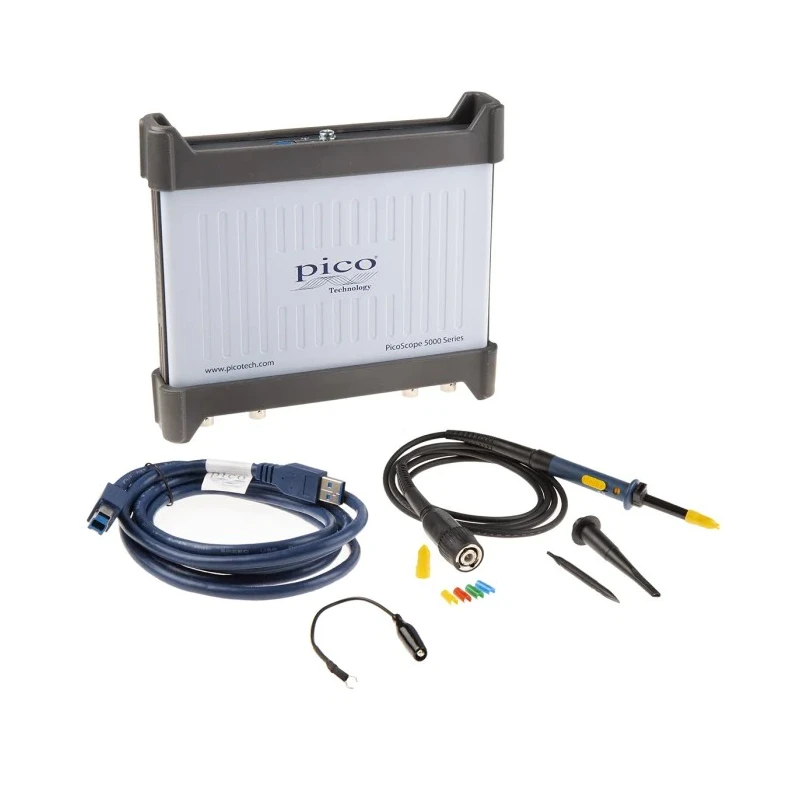

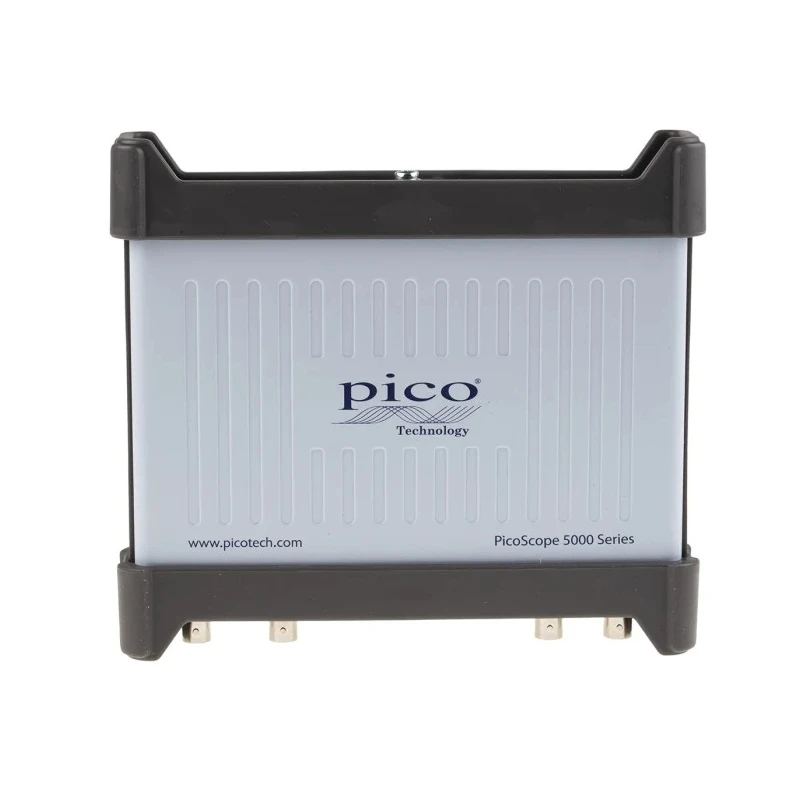

Pico Technology PicoScope 5000D Series PC Based Oscilloscope 2-Channel 100 MHz Bandwidth PicoScope 5243D
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Resolution | 8 bit |
| Brand | Pico Technology |
| Model | PicoScope 5243D |
| Bandwidth | 100MHz |
| Series | PicoScope 5000D |
| Number Of Channels | 2 |
| Vertical Resolution | 16 bit |
| Rise Time | 3.5ns |
| Interface Type | CAN, LIN, RS232, RS422, RS485, SPI, UART, USB |
| Oscilloscope Type | PC Based |
| Minimum Vertical Sensitivity | 2mV/div |
| Minimum Time Base | 1ns/div |
| Maximum Vertical Sensitivity | 4V/div |
| Maximum Time Base | 5000s/div |
Key Features
- The oscilloscope features a high bandwidth of 100 MHz for accurate signal analysis.

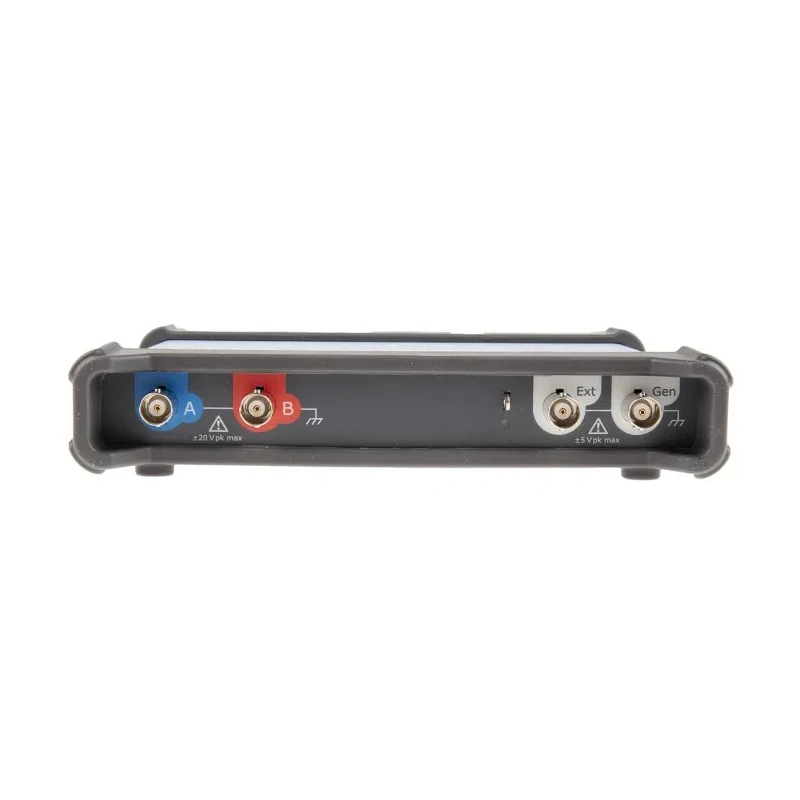

- It supports 2 independent input channels for versatile measurement capabilities.

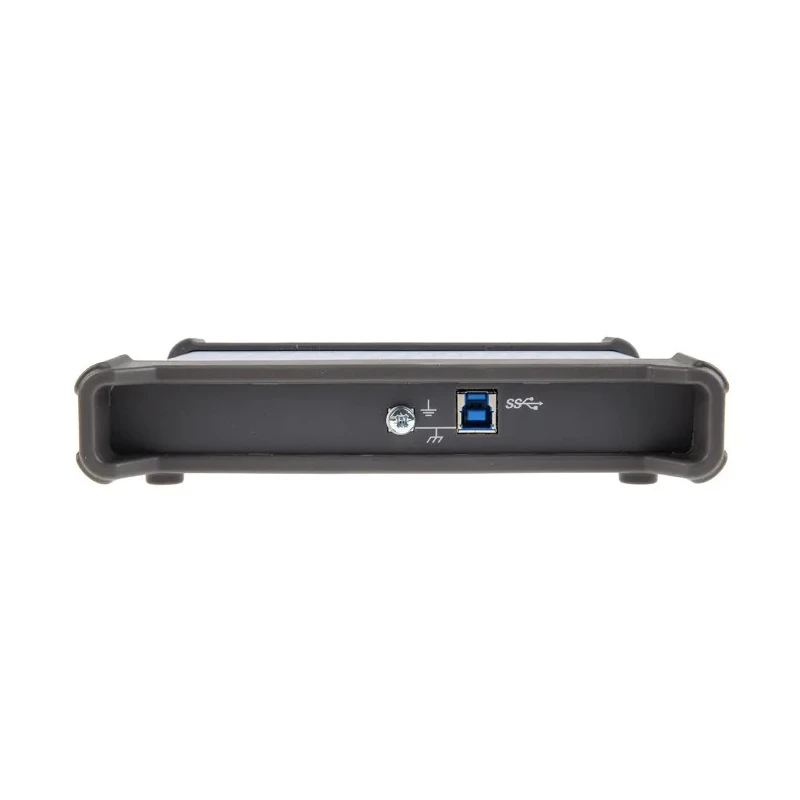

- The device operates as a PC based oscilloscope with multiple interface types, including CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB.
- It provides flexible hardware resolution switching from 8 to 16 bits for precision measurements.
- Sampling rates vary from 1 GS/s at 8 bit resolution to 62.5 MS/s at 16 bit resolution for detailed waveform capture.
- The large 512 MS buffer memory enables extensive data storage for long measurement sessions.
- Includes 200 MS/s arbitrary waveform generator to simulate complex signals.
- Compatible with Windows, Linux, and Mac operating systems for wide usability.
Product Description
Pico Technology PicoScope 5243D is a PC based oscilloscope from the 5000D series featuring a bandwidth of 100 MHz and two independent channels. It delivers advanced benchtop-level performance with high speed, resolution, and sampling rates suitable for industrial and laboratory environments.
This device offers flexible hardware resolution switching between 8 and 16 bits, a large 512 MS buffer memory, and high sampling rates ranging from 1 GS/s at 8 bit to 62.5 MS/s at 16 bit resolution. Its integrated 200 MS/s arbitrary waveform generator enhances testing capabilities, and the oscilloscope supports multiple serial decoding protocols including CAN, LIN, RS232, RS422, RS485, SPI, and UART, accessible through USB interface.
The oscilloscope’s intuitive user interface aids precise measurement and data visualization, making it suitable for electronics troubleshooting, embedded system design, mixed signal and video design, and automotive electronics testing. Its compatibility across Windows, Linux, and Mac operating systems ensures broad integration flexibility.
Typical use cases include educational laboratories, industrial electronics development, embedded electronics design, automotive diagnostics, and complex mixed signal analysis. The device originates from the United Kingdom, emphasizing quality manufacturing standards.
The oscilloscope has a bandwidth of 100 MHz allowing detailed signal analysis. It provides two independent channels enabling versatile data acquisition. Flexible hardware resolution from 8 to 16 bits enhances measurement precision.
High sampling rates support detailed capture of fast electronic events. Large 512 MS buffer memory supports extended data recordings. An inbuilt 200 MS/s arbitrary waveform generator provides custom waveform outputs. Compatible with multiple serial communication standards for broad interface coverage.
Runs on Windows, Linux, and Mac operating systems for versatile deployment. Ideal for industrial, laboratory, educational, automotive and embedded electronics applications. Explore the full range of Oscilloscopes and test instruments on EnvMart to find solutions tailored to your industrial and laboratory testing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PicoScope 5243D features a bandwidth of 100 MHz, allowing for detailed signal analysis.
This model supports two independent input channels, providing versatile measurement capabilities.
The maximum sampling rate is 1 GS/s at 8-bit resolution and 62.5 MS/s at 16-bit resolution, enabling detailed waveform capture.
It supports multiple interface types including CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB.
The oscilloscope offers flexible hardware resolution switching from 8 to 16 bits for precision measurements.
The rise time of the PicoScope 5243D is 3.5 ns, which is suitable for capturing fast electronic events.
It has a large buffer memory of 512 MS, allowing for extensive data storage during long measurement sessions.
The minimum vertical sensitivity is 2 mV/div, and the maximum is 4 V/div, accommodating a wide range of signal amplitudes.
The minimum time base is 1 ns/div, while the maximum time base is 5000 s/div, providing flexibility for various time measurements.
Yes, it is compatible with Windows, Linux, and Mac operating systems, ensuring broad usability.
It is suitable for applications such as electronics troubleshooting, embedded system design, automotive diagnostics, and mixed signal analysis.
The oscilloscope originates from the United Kingdom, reflecting quality manufacturing standards.
