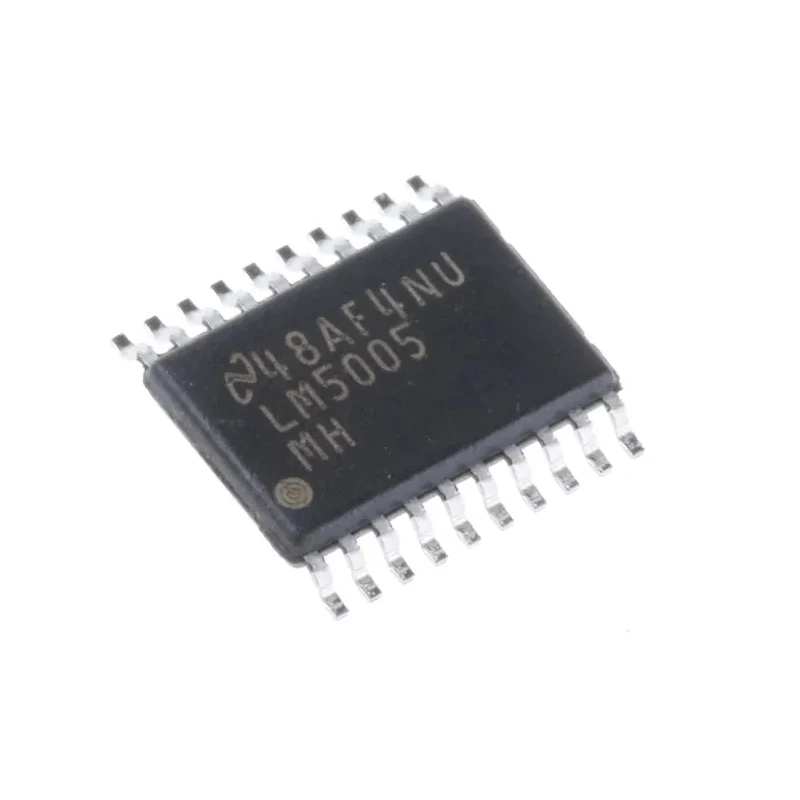

Texas Instruments Buck Converter Surface Mount 1.23V Output Voltage 2.5 A Output Current LM5005MH/NOPB

Texas Instruments LM5005MH/NOPB Buck Converter is a high-efficiency, surface-mount DC/DC step-down voltage regulator designed for industrial and electronic applications requiring stable low voltage outputs. It delivers a regulated output voltage of 1.23V at up to 2.5A output current, making it suitable for powering sensitive electronics in a compact PCB footprint.

This device features a 20-pin TSSOP package with dimensions of 6.5mm length, 4.4mm width, and 1.2mm depth that suits dense circuit layouts. It operates over a broad temperature range of -40°C to 125°C, ensuring robustness in harsh conditions. The converter supports a wide input voltage range from 7V to 75V, accommodating various power sources and providing flexibility in design.

The LM5005MH/NOPB incorporates advanced line regulation of 1% and load regulation of 0.1% with an efficiency rating around 90%, offering excellent power conversion performance. It complies with well-recognized industrial standards including JEDEC, RoHS, ANSI, ESDA, and REACH, ensuring quality and environmental safety.

As part of the LM5005 series, this buck converter is ideal for industrial power supplies, telecommunications equipment, electric vehicle charge controllers, and embedded systems requiring precise, reliable voltage regulation in a compact form factor.

This buck converter provides a stable 1.23V output voltage for power regulation. It supports an output current of up to 2.5 A for demanding applications. The device is designed for surface mounting on printed circuit boards.

With 20 pins and a TSSOP package, it facilitates compact and efficient circuit layouts. Operating temperature range spans from -40°C to 125°C ensuring reliability in diverse environments. Features high efficiency of 90%, minimizing power losses during voltage conversion.

It supports a wide input voltage range from 7V to 75V to accommodate various source voltages. The load and line regulation are tightly controlled at 0.1% and 1%, respectively. Adheres to international standards such as JEDEC, RoHS, ANSI, ESDA, and REACH for quality and environmental compliance.

This model LM5005MH/NOPB belongs to the LM5005 series by Texas Instruments.

This buck converter is widely used in industrial, telecommunications, automotive, and electronic manufacturing sectors where reliable and efficient DC voltage regulation is necessary. It is suitable for integration in power management circuits, embedded systems, and specialized electronic devices.
