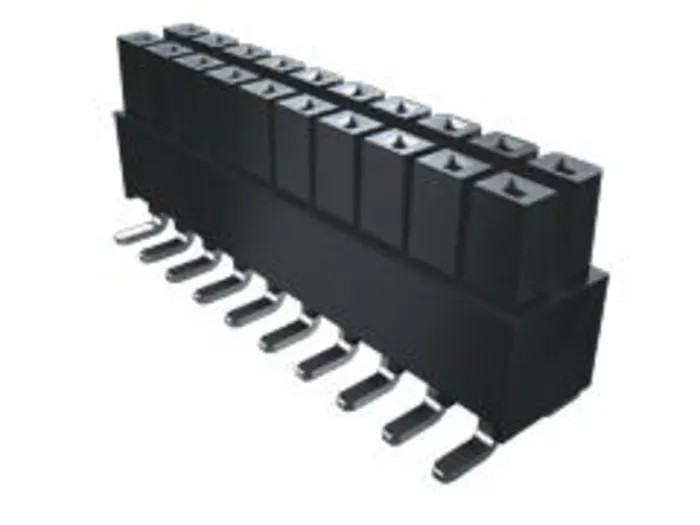

Samtec IPS1 Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch, 4.8A Current, Solder Termination IPS1

Samtec IPS1 Series Straight Through Hole PCB Socket, model IPS1, is a high-quality electronic component designed for reliable board-to-board connection with a 20-contact, 2-row configuration and 2.54 mm pitch. It features a robust liquid crystal polymer housing and a solder termination type optimized for through-hole mounting.

The socket supports a current rating of 4.8A at 95°C and operates efficiently within a wide temperature range of -55°C to 125°C. The female contacts are made of bronze and plated with gold ensuring excellent electrical performance and corrosion resistance in demanding environments.

This connector is engineered for straight orientation and a board-to-board connector system, making it suitable for various industrial electronics, power connectors, and PCB socket applications including electronic assemblies in commercial and industrial devices.

IPS1 series sockets meet RoHS environmental compliance and include features such as individually shrouded contacts for enhanced safety, with an optional locking clip for secure mechanical retention. The row pitch of 2.54 mm matches the contact pitch ensuring precision and easy PCB integration.

These connectors are ideal for reliable electrical connections in electronic manufacturing, industrial equipment, aerospace, and telecommunications systems. The product is new and designed for easy soldering onto printed circuit boards, providing a durable and efficient solution for high-density connections.

The socket features a liquid crystal polymer housing for durability and reliability. It supports a current rating of 4.8A at 95°C ensuring robust electrical performance. Gold-plated bronze female contacts provide excellent conductivity and corrosion resistance.

The connector adopts a solder termination type with vertical through-hole mount orientation. Suitable for operating temperatures ranging from -55°C to 125°C for versatile applications. The pitch between contacts is 2.54 mm with a row pitch also of 2.54 mm for precise PCB fit.

This IPS1 series socket is RoHS compliant, meeting environmental safety standards. Its straight orientation and board-to-board system ensure easy integration in electronic assemblies. Optional locking clip and individually shrouded contacts improve mechanical stability and safety.

Explore our extensive range of PCB Sockets and connectors at EnvMart to find the perfect match for your electronics production needs.
