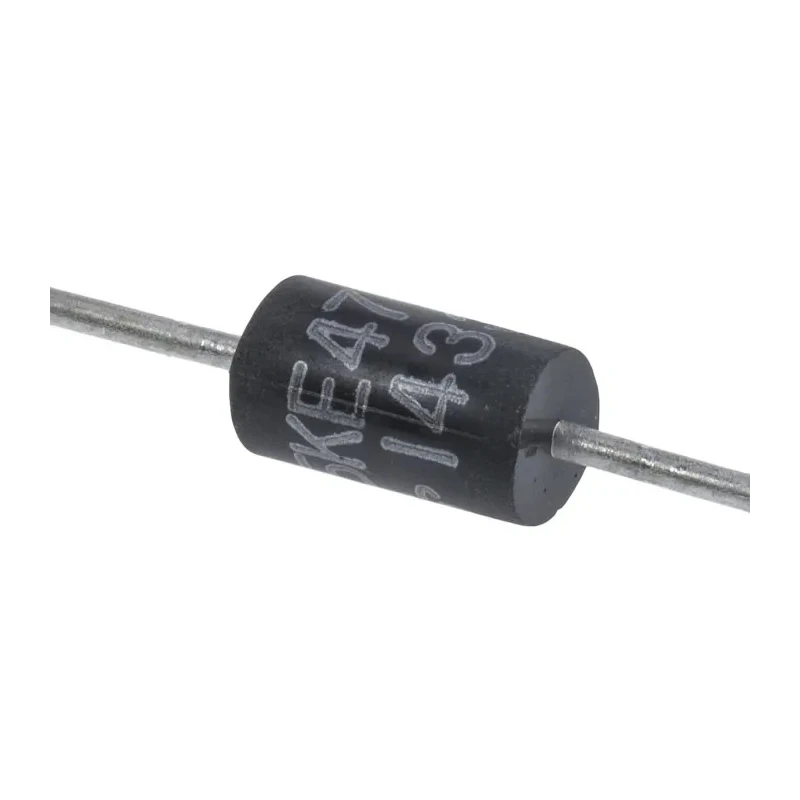

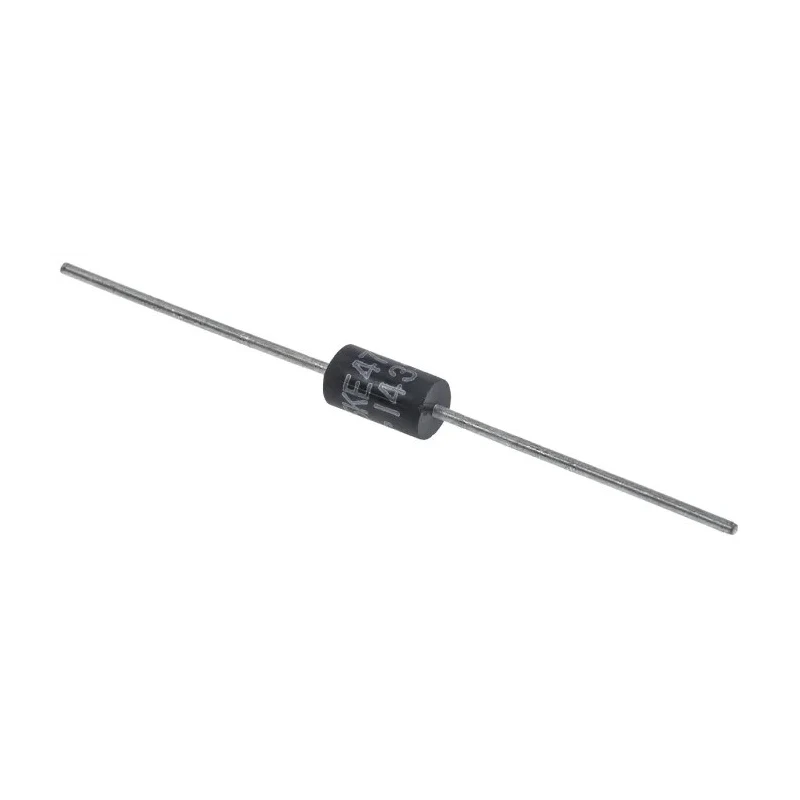

Vishay 1-Element Bi-Directional TVS Diode, 1.5 kW, 2-Pin Through Hole, TRANSZORB TVS Series 1.5KE47CA-E3/54

Vishay 1.5KE47CA-E3/54 is a premium 1-Element Bi-Directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic components from voltage surges, spikes, and transient events. This TVS diode provides a peak pulse power dissipation rating of 1.5 kW, making it suitable for industrial, automotive, and electronic semiconductor protection applications.

The device uses a single diode configuration in a bi-directional direction type, enabling symmetrical voltage transient suppression in both polarities. It features a minimum breakdown voltage (Vbr) of 44.7 volts and a maximum reverse stand-off voltage (Vwm) of 40.2 volts, ideal for protecting circuits operating around these voltage levels.

Its package type is axial through-hole with a compact footprint - 9.5 mm in length and 5.3 mm in diameter, allowing easy PCB insertion. The diode withstands operating temperatures from -55°C up to 175°C, ensuring reliable performance in harsh environments such as automotive systems and rugged industrial electronics.

The 1.5KE47CA-E3/54 TVS diode complies with the automotive AEC-Q101 standard, offering reliable Electrostatic Discharge (ESD) protection, with a maximum peak pulse current (Ippm) of 23.1 amperes. Its clamping voltage of 64.8 volts effectively limits transient voltages, preventing damage to protected circuits.

This Vishay diode series falls under the TRANSZORB TVS diode family known for robust transient voltage suppression across various electronics and power supply applications. The device’s compact dimensions and reliable protection characteristics make it an essential component in safeguarding sensitive electronics in automotive, industrial manufacturing, power supply equipment, and consumer electronics applications.

Single diode configuration for bi-directional protection ensuring symmetrical response. High peak pulse power rating (1.5 kW) for transient voltage surge robustness. Wide operating temperature range from -55°C to 175°C for demanding environments.

Compact axial through-hole package with small footprint and easy mounting. Automotive standard AEC-Q101 compliant for reliability in vehicle electronics. Efficient clamping voltage control to protect downstream circuitry.

Designed for industrial, automotive, electronic manufacturing, and power supply use cases. Explore further products in our TVS Diode category for additional transient voltage suppressors suited for diverse voltage ranges and power requirements on EnvMart.
