Vishay 1-Element Bi-Directional TVS Diode 1.5 kW, 2-Pin Surface Mount SMC SM15T27CA-E3/57T

Vishay SM15T27CA-E3/57T is a 1-element bi-directional TVS (Transient Voltage Suppressor) diode designed for surface mount applications with a compact 2-pin SMC package. It is engineered to absorb and suppress high energy voltage transients, protecting sensitive electronic circuits from damage.

Featuring a peak pulse power dissipation of 1.5 kW and a peak pulse current of 207 A, this diode efficiently clamps transient voltages up to 48.3 V, thus offering reliable protection against electrical surges and electrostatic discharges. It operates over a wide temperature range from -65°C to 150°C, making it suitable for industrial, automotive, and consumer electronics applications.

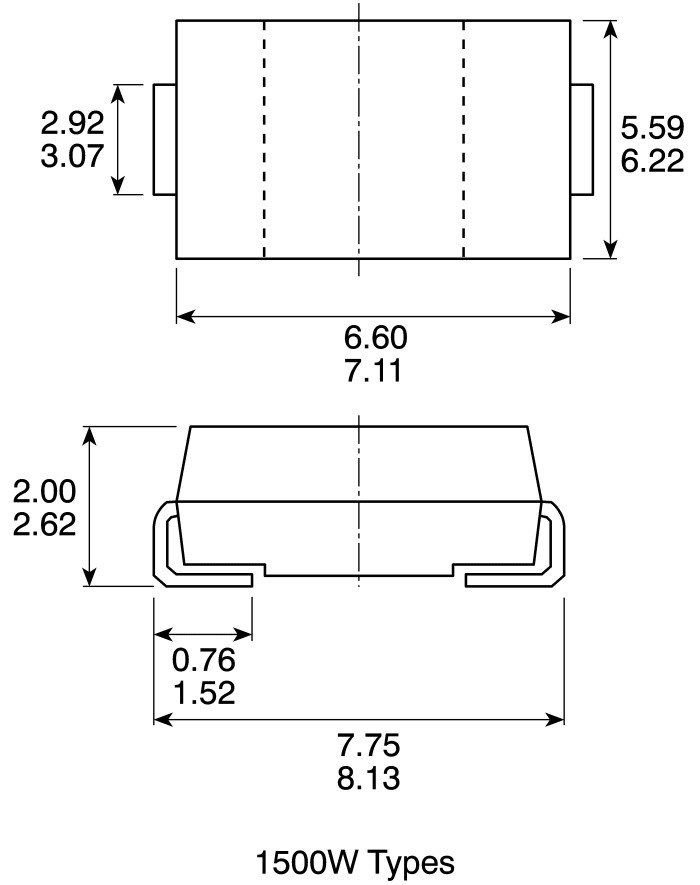

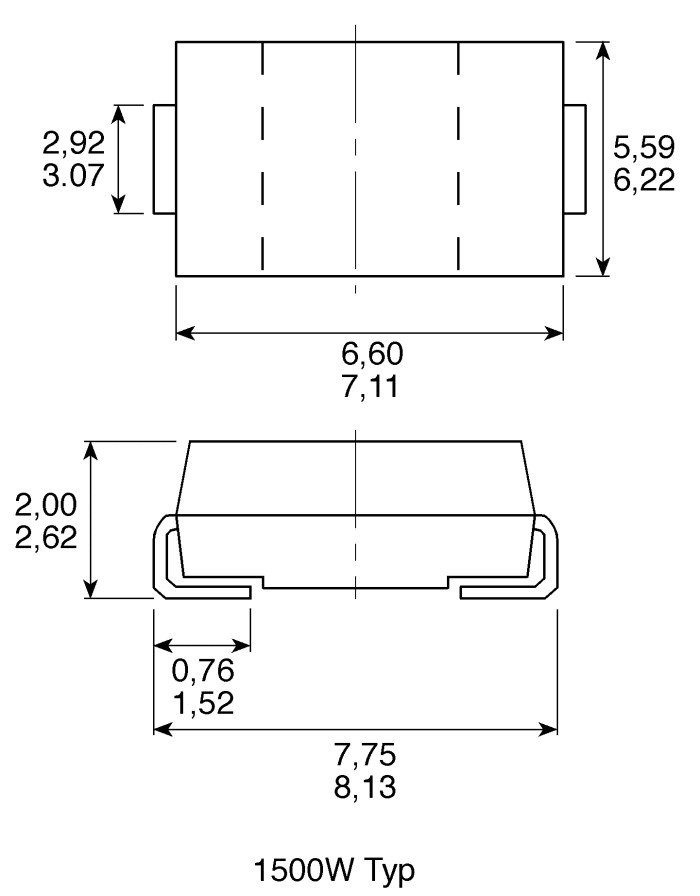

The device’s single diode configuration and bi-directional type allow it to protect circuits from both positive and negative voltage spikes. It has a minimum breakdown voltage of 25.7 V and a maximum reverse stand-off voltage of 23.1 V. Its compact physical dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height enable space-saving PCB layout integration.

Compliance with the AEC-Q101 automotive standard ensures the diode meets rigorous quality standards for automotive and harsh environment use cases. Its SMC surface mount package is fully compatible with automated PCB assembly processes, improving manufacturing efficiency.

Common industrial applications include power supply surge protection, semiconductor device protection, communication equipment safeguarding, and use in automotive electronic modules. The diode’s robust ESD protection makes it ideal for protecting interfaces and sensitive electronics in manufacturing and laboratory environments.

Offers single diode configuration for transient voltage suppression. Supports a minimum breakdown voltage of 25.7 V and maximum reverse stand-off voltage of 23.1 V. Designed to clamp voltage at 48.3 V effectively during transient events.

Provides ESD protection and operates within temperature range of -65°C to 150°C. Features a peak pulse current rating of 207 A for robust transient handling. Compact dimensions: 7.11 mm length, 6.22 mm width, and 2.42 mm height.

Complies with AEC-Q101 automotive standard for quality and reliability. Surface mount package type SMC suitable for automated PCB assembly. Explore the Vishay product range for advanced semiconductors and find reliable protection solutions for your industrial and commercial electronic applications at EnvMart.
