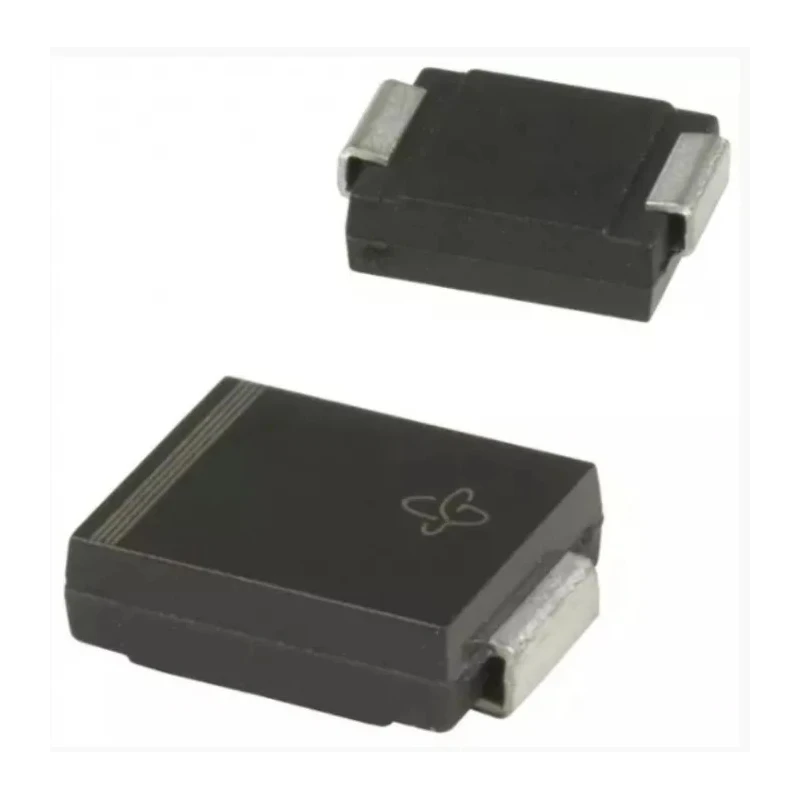

Vishay 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ36A-E3/52
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SMBJ36A-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 58.1V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 40V |
| Maximum Reverse Stand-off Voltage Vwm | 36V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 10.3A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This diode features a single element, uni-directional configuration for targeted voltage protection.
- It supports a maximum reverse stand-off voltage of 36 V and a minimum breakdown voltage of 40 V.
- The diode package is surface mount type in a compact DO-214 form factor.
- It has a low clamping voltage of 58.1 V enabling effective surge suppression.
- Rated for operation from -55°C to 150°C, suitable for harsh industrial environments.
- Provides electrostatic discharge protection and fast response time to transients.
- Its small size with dimensions 4.57 mm length, 3.94 mm width, and 2.24 mm height optimizes PCB space.
- Complies with automotive grade AEC-Q101 standard for reliability in automotive applications.
Product Description
Vishay SMBJ36A-E3/52 1-Element Uni-Directional TVS Diode is designed for transient voltage suppression in sensitive electronic circuits. This diode boasts a peak pulse power dissipation rating of 600 W and comes in a surface mount DO-214 package, making it suitable for automated assembly and compact PCB designs.
The diode features a single-element chip that offers uni-directional protection, essential for circuits that require positive polarity voltage clamping. It provides a minimum breakdown voltage of 40 V and a maximum reverse stand-off voltage of 36 V, effectively protecting components from voltage spikes.
It exhibits a clamping voltage of 58.1 V during surge events, ensuring a robust defense against transient voltage conditions. Rated to operate in wide temperature ranges from -55°C up to 150°C, the diode is ideal for use in demanding industrial, automotive, and telecommunications environments.
Its compact dimensions - 4.57 mm length, 3.94 mm width, and 2.24 mm height - reduce board space requirements, while the 2-pin DO-214 package design supports efficient soldering processes. It provides ESD protection and has a rapid response time to transient surges induced by inductive loads or lightning strikes.
The SMBJ36A-E3/52 is part of the TRANSZORB TVS diode series from Vishay, recognized for low incremental surge resistance and reliable clamping capabilities. The product meets the automotive standard AEC-Q101, confirming its suitability for automotive and other rigorous applications.
Typical applications include protection for MOSFETs, ICs, sensor line inputs, and consumer electronics against voltage surges and electrostatic discharge events. It is used extensively in industrial controls, telecommunication equipment, and computing hardware to improve circuit robustness and product longevity.
Set contains: 1 Pc 1-Element Uni-Directional TVS Diode SMBJ36A-E3/52. Explore a comprehensive selection of Vishay electronic components and semiconductors on EnvMart to enhance your design and manufacturing capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SMBJ36A-E3/52 has a peak pulse power dissipation rating of 600 W.
This model supports a maximum reverse stand-off voltage of 36 V.
The clamping voltage during surge events is 58.1 V.
The dimensions of this diode are 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
It is rated for operation from -55°C to 150°C, making it suitable for harsh environments.
This diode features a single element, uni-directional configuration for targeted voltage protection.
It complies with the automotive grade AEC-Q101 standard, confirming its reliability in automotive applications.
The minimum breakdown voltage is 40 V.
The maximum peak pulse current for this model is 10.3 A.
Typical applications include protection for MOSFETs, ICs, sensor line inputs, and consumer electronics against voltage surges.
This diode is designed for surface mounting, making it suitable for automated assembly.
The maximum reverse leakage current is 1 μA.
