Vishay 1-Element Bi-Directional TVS Diode 600W, 2-Pin DO-214AA Package SMBJ7.5CA-E3/52

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1-Element Bi-Directional TVS Diode 600W, 2-Pin DO-214AA Package SMBJ7.5CA-E3/52

Name: Vishay 1-Element Bi-Directional TVS Diode 600W, 2-Pin DO-214AA Package SMBJ7.5CA-E3/52
Brand: Vishay
SKU: 200707



Category TVS Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.24mm
Length	4.57mm
Model	SMBJ7.5CA-E3/52
Width	3.94mm
Mount Type	Surface
Series	TRANSZORB TVS
Maximum Operating Temperature	150°C
Package Type	DO-214AA (SMB)
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	12.9V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	8.33V
Maximum Reverse Stand-off Voltage Vwm	7.5V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	46.5A
Maximum Reverse Leakage Current	200μA
Magnatec SMBJ7.5CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AABrand	Magnatec

Key Features

This diode features bi-directional configuration for enhanced protection.
It supports peak pulse power dissipation of 600 watts.
Minimum breakdown voltage is 8.33 volts ensuring reliable operation.
Clamping voltage is 12.9 volts to protect sensitive circuits effectively.
Mount type is surface mount with a compact DO-214AA (SMB) package.
Operating temperature range from -55°C up to 150°C allows usage in harsh environments.
Maximum peak pulse current of 46.5 amperes offers robust surge handling.
Complies with Automotive Standard AEC-Q101 ensuring automotive grade reliability.

Product Description

Vishay SMBJ7.5CA-E3/52 1-Element Bi-Directional TVS Diode delivers 600 W of peak pulse power with a 2-pin surface mount DO-214AA (SMB) package. Designed for protection against transient voltage surges, it ensures high reliability for electronic circuits in diverse industrial and automotive applications.

This bi-directional diode configuration provides effective voltage suppression in both directions, making it suitable for AC/DC systems requiring transient voltage protection.

The device supports a minimum breakdown voltage of 8.33 V and maximum reverse standoff voltage of 7.5 V, clamping at 12.9 V to protect sensitive components from voltage spikes. It features a peak pulse current rating of 46.5 A and a low maximum reverse leakage current of 200 µA, enhancing efficiency.

Manufactured to Automotive Standard AEC-Q101, it withstands operating temperatures from -55°C to 150°C, making it ideal for use in automotive electronics, industrial machinery, and telecommunications equipment requiring rugged components.

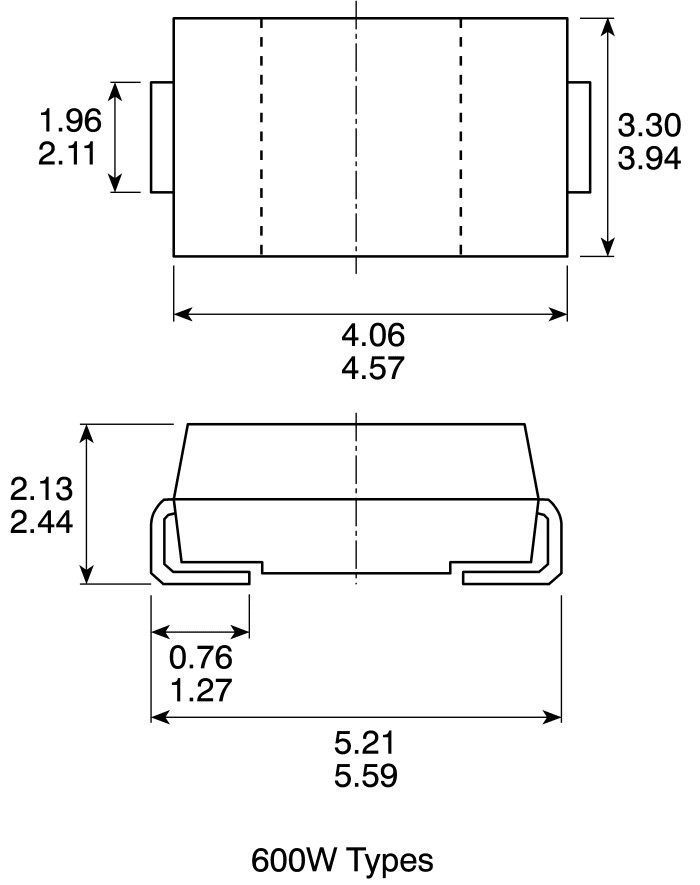

The compact DO-214AA package with dimensions 4.57 mm (L) x 3.94 mm (W) x 2.24 mm (H) enables easy integration on space-constrained printed circuit boards. This diode features bi-directional configuration for surge protection.

Supports 600 W peak pulse power dissipation. Minimum breakdown voltage of 8.33 V for effective voltage regulation. Low clamping voltage of 12.9 V protects circuits from transient spikes. Surface mount DO-214AA package ensures compact footprint.

Wide operating temperature range from -55°C to 150°C enables use in harsh environments. High peak pulse current of 46.5 A for surge robustness. Automotive Grade standard AEC-Q101 for enhanced reliability. Low reverse leakage current minimizes power loss.

Package dimensions support compact PCB design integration.

This Vishay TVS diode is engineered for industrial, automotive, telecommunications, and electronic component protection applications. It is ideal for transient voltage suppression in power supplies, control systems, and sensitive electronics to prevent damage from voltage spikes and electrostatic discharge (ESD).

Explore more TVS Diodes and semiconductor solutions at EnvMart for your industrial and commercial electronics needs.
