Vishay 600 V 1 A General Purpose 2-Pin DO-204AL Diode 1N4005-E3/54

Free Delivery in India | Lowest Global Shipping Charges

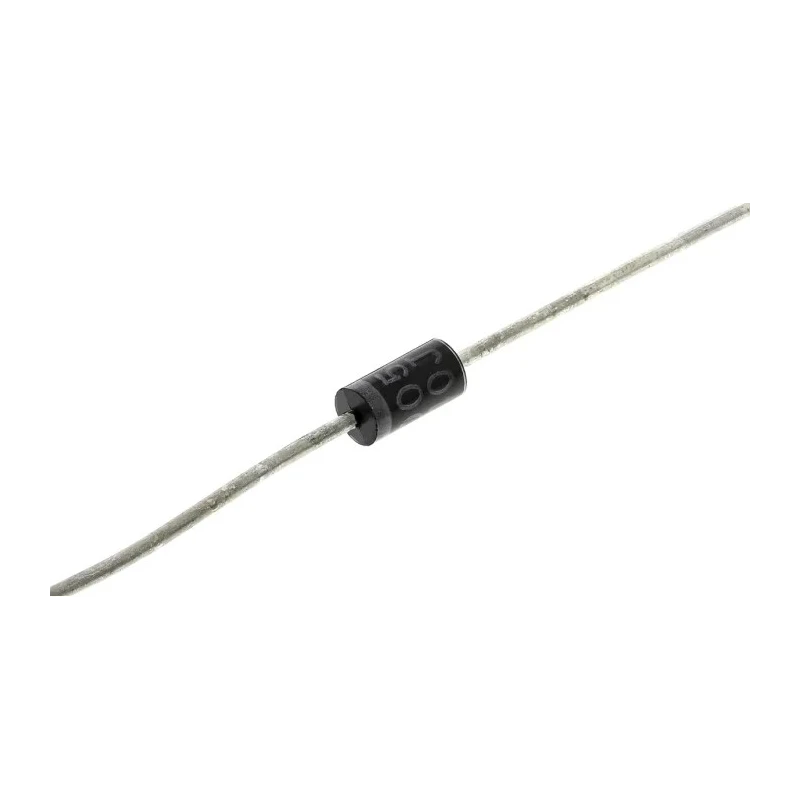

Vishay 600 V 1 A General Purpose 2-Pin DO-204AL Diode 1N4005-E3/54

Name: Vishay 600 V 1 A General Purpose 2-Pin DO-204AL Diode 1N4005-E3/54
Brand: Vishay
SKU: 200694
Price: 0.13 USD
Availability: InStock



Category Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Diameter	2.7mm
Brand	Vishay
Height	2.7mm
Length	5.2mm
Model	1N4005-E3/54
Width	2.7mm
Mount Type	Through Hole
Series	1N4005
Maximum Operating Temperature	150°C
Package Type	DO-204AL
Minimum Operating Temperature	-50°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	600V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	45A
Maximum Forward Voltage Vf	1.1V
Vishay 600V 1A, Diode, 2-Pin DO-204AL 1N4005Brand	Vishay

Key Features

Maximum continuous forward current of 1 ampere ensures efficient current conduction.
Peak reverse repetitive voltage rating of 600 volts for robust blocking capability.
Low forward voltage drop of 1.1 volts reduces power loss.
Capable of handling high surge current up to 45 amperes for transient loads.
Operates effectively between -50°C to 150°C junction temperature range.
Plastic DO-204AL (DO-41) package with 25.4 mm tin-plated leads for through-hole mounting.
Single diode configuration with two pins suited for general purpose applications.
Extremely low leakage current with peak reverse current of 5 microamperes.

Product Description

Vishay 1N4005-E3/54 is a general purpose plastic rectifier diode housed in a 2-pin DO-204AL (DO-41) plastic package, rated for 600 volts peak reverse repetitive voltage and 1 ampere maximum continuous forward current.

This diode offers a low forward voltage drop of 1.1 volts and high surge capability with a peak non-repetitive forward surge current of 45 amperes. It operates reliably across a wide junction temperature range from -50°C up to 150°C, making it suitable for rigorous industrial and commercial electronic applications.

Its compact dimensions of 5.2 mm length and 2.7 mm diameter with tin-plated leads enable easy through-hole mounting on printed circuit boards. The single diode configuration and low leakage current (peak reverse current 5 μA) enhance efficiency and reliability in electrical circuits.

Commonly used for rectification of power supplies, inverters, converters, and as freewheeling diodes, this component is essential in various industrial, laboratory, construction, and power electronics environments. The robust general purpose design by Vishay ensures dependable performance in demanding scenarios.

Maximum continuous forward current rating of 1 A supports moderate power levels. 600 V peak reverse repetitive voltage provides excellent blocking. Low forward voltage minimizes energy dissipation during conduction. High forward surge current capacity withstands transient overloads.

Wide operating temperature range enhances versatile deployment. Compact package facilitates standard through-hole assembly. Low leakage current improves overall circuit efficiency. Set includes one Vishay 1N4005-E3/54 general purpose rectifier diode in 2-pin DO-204AL package. This product is manufactured in China and supplied new.
