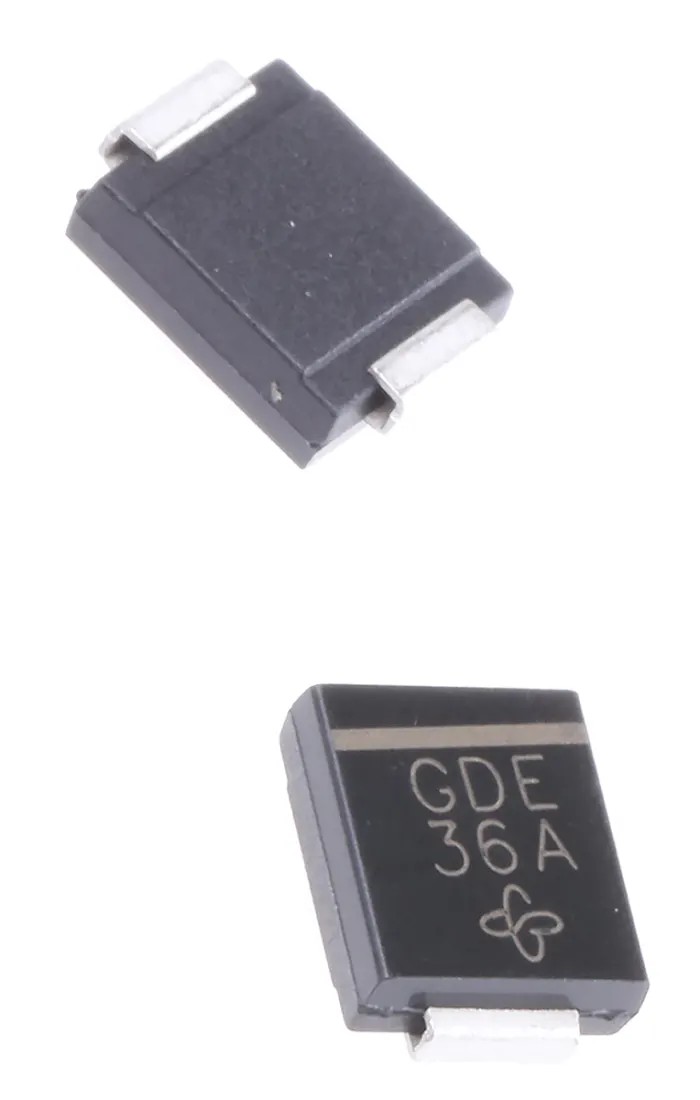

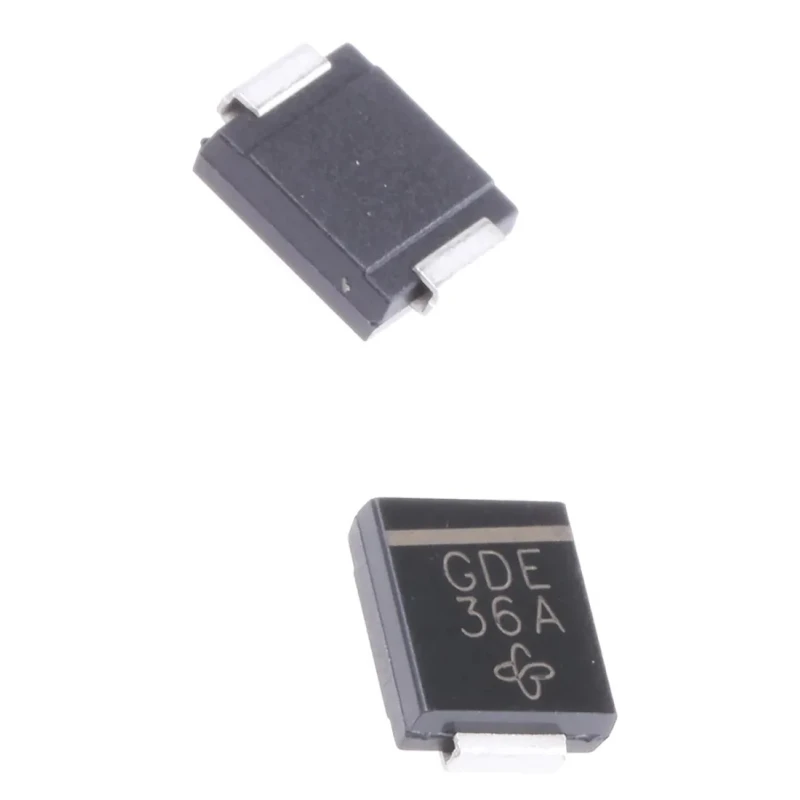

Vishay 1-Element Uni-Directional TVS Diode 1.5 kW Surface Mount 2-Pin SMC Package SMCJ5.0A-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ5.0A-E3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 163A |
| Maximum Reverse Leakage Current | 1mA |
Key Features
- Uni-Directional diode configuration for reliable surge protection.
- Surface mount package in SMC form factor with 2 pins.
- Minimum breakdown voltage of 6.4 V and maximum reverse stand-off voltage of 5 V.
- Clamping voltage of 9.2 V and maximum peak pulse current of 163 A.
- Operating temperature range from -55°C to 150°C suitable for harsh environments.
- Complies with Automotive Standard AEC-Q101 for automotive applications.
- ESD protection included to safeguard sensitive electronics.
Product Description
Vishay SMCJ5.0A-E3 is a high-performance 1-Element Uni-Directional Transient Voltage Suppressor (TVS) Diode, rated at 1.5 kW peak pulse power dissipation. This diode is engineered to protect sensitive electronic components from voltage spikes caused by transient disturbances. It is delivered in a compact surface mount SMC package with 2 pins, optimized for reliable PCB assembly.
The diode features a minimum breakdown voltage of 6.4 V and a maximum reverse stand-off voltage of 5 V, enabling it to clamp voltage spikes effectively at a clamping voltage of 9.2 V. It can safely handle peak pulse currents up to 163 A, ensuring robust surge protection in harsh electrical environments. The operating temperature range from -55°C to 150°C allows for versatile use across industrial, automotive, and commercial electronics applications.
Designed to meet the strict automotive standard AEC-Q101, the SMCJ5.0A-E3 assures quality and reliability in safety-critical automotive electronics systems. Its compact dimensions (7.11 mm length, 6.22 mm width, and 2.42 mm height) facilitate high-density PCB layouts in space-constrained designs. Furthermore, the diode incorporates ESD protection, making it ideal for protecting circuits from electrostatic discharges.
Uni-Directional diode configuration for efficient transient voltage suppression. Surface mount SMC package suitable for high-volume assembly. High peak pulse power rating of 1.5 kW for transient events. Operating temperature from -55° to 150°C for broad environmental suitability.
Automotive grade with AEC-Q101 certification. Compact size enables integration in miniature electronic designs.
Applications include automotive electronics, industrial machinery protection, power supply surge protection, telecommunications equipment, and consumer electronics. The SMCJ5.0A-E3 offers reliable safeguarding against voltage transients, enhancing system longevity and performance.
Explore EnvMart's extensive range of semiconductor TVS Diodes and related electronic components for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMCJ5.0A-E3 has a peak pulse power dissipation rating of 1.5 kW.
The clamping voltage for the SMCJ5.0A-E3 is 9.2 V.
This model operates within a temperature range of -55°C to 150°C.
The maximum reverse stand-off voltage for the SMCJ5.0A-E3 is 5 V.
The SMCJ5.0A-E3 features a 2-pin configuration.
It complies with the Automotive Standard AEC-Q101.
The minimum breakdown voltage is 6.4 V.
The SMCJ5.0A-E3 can handle a maximum peak pulse current of 163 A.
The dimensions are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
It uses a uni-directional diode configuration.
The maximum reverse leakage current is 1 mA.
This diode is suitable for automotive electronics, industrial machinery protection, power supply surge protection, telecommunications equipment, and consumer electronics.
