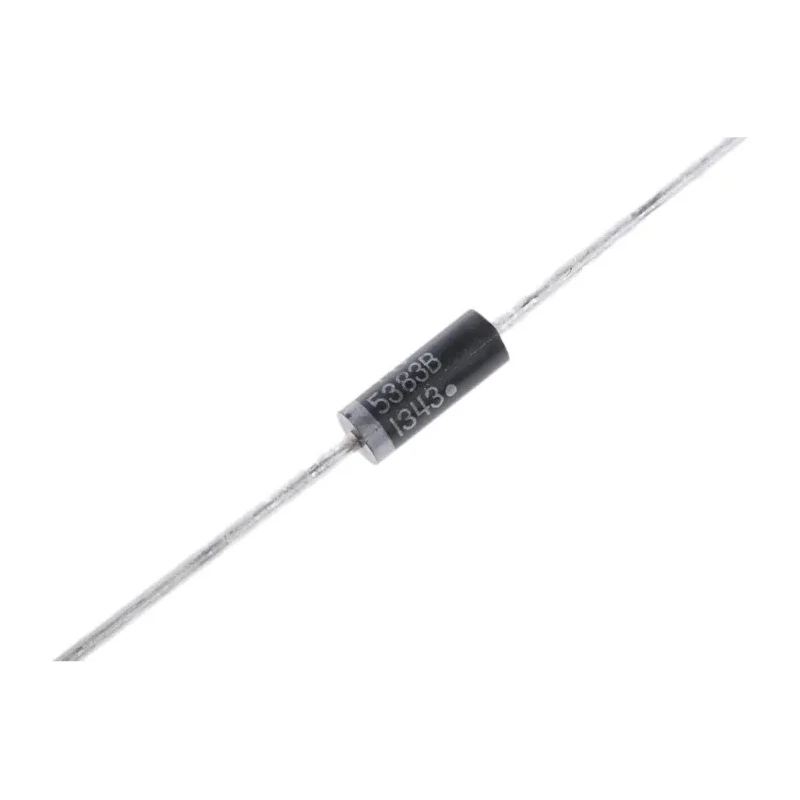

onsemi 150 V Zener Diode Single 5 W 5% Tolerance Through Hole 2-Pin Case 017AA 1N5383BRLG

onsemi 1N5383BRLG Zener Diode is a precision single-element semiconductor voltage regulator designed for industrial and electronic power applications. Rated for a nominal Zener voltage of 150 V and power dissipation of 5 W, it ensures reliable voltage stabilization in various circuits. This diode is provided in a through hole 2-pin Case 017AA package, facilitating sturdy mounting on printed circuit boards.

The device operates effectively with a test current of 8 mA and maintains a maximum Zener impedance of 330 Ω, limiting voltage variation under load conditions. It features a very low maximum reverse leakage current of just 500 nA, ensuring minimal leakage in reverse biased condition. The diode withstands extreme environments with an operating temperature range from -65°C up to 200°C, suitable for automotive, industrial, and laboratory settings.

Its compact size, with a length of 8.89 mm and height of 3.68 mm, allows versatile integration in dense electronic assemblies and power regulation modules. The 1N5383BRLG is part of the 1N5383B series from onsemi known for tight limits and improved operating characteristics, enhancing design consistency and performance stability.

This Zener diode supports voltage regulation applications across industrial automation, instrumentation, power supplies, and electronics manufacturing environments. Its robust specifications make it appropriate for use in both prototype development and high-volume production circuits.

Designed for voltage regulation applications. Features a 2-pin Case 017AA package for reliable through hole mounting. Operates with a nominal Zener voltage of 150 V and test current of 8 mA. Maximum power dissipation rating of 5 W ensures robust operation.

Maximum Zener impedance of 330 Ω and maximum reverse leakage current of 500 nA enhance performance. Wide operating temperature range from -65°C to 200°C for demanding environments. Compact physical dimensions: length 8.89 mm, height 3.68 mm.

Part of the 1N5383B series with improved operating characteristics.

Explore the full range of onsemi Zener Diodes on EnvMart to find components suited for your precision voltage regulation needs in industrial, laboratory, and manufacturing applications.
