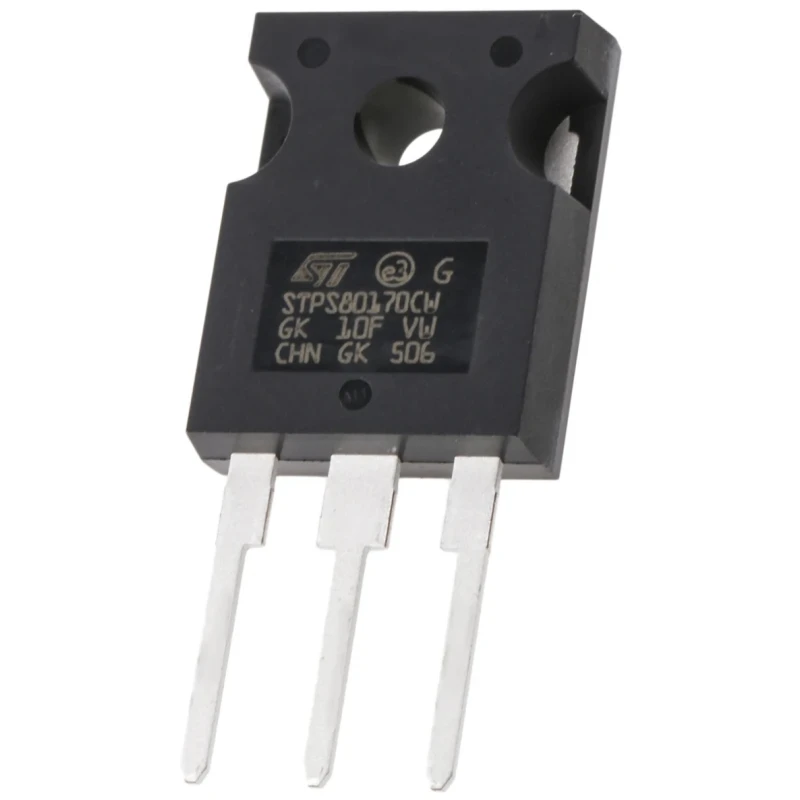

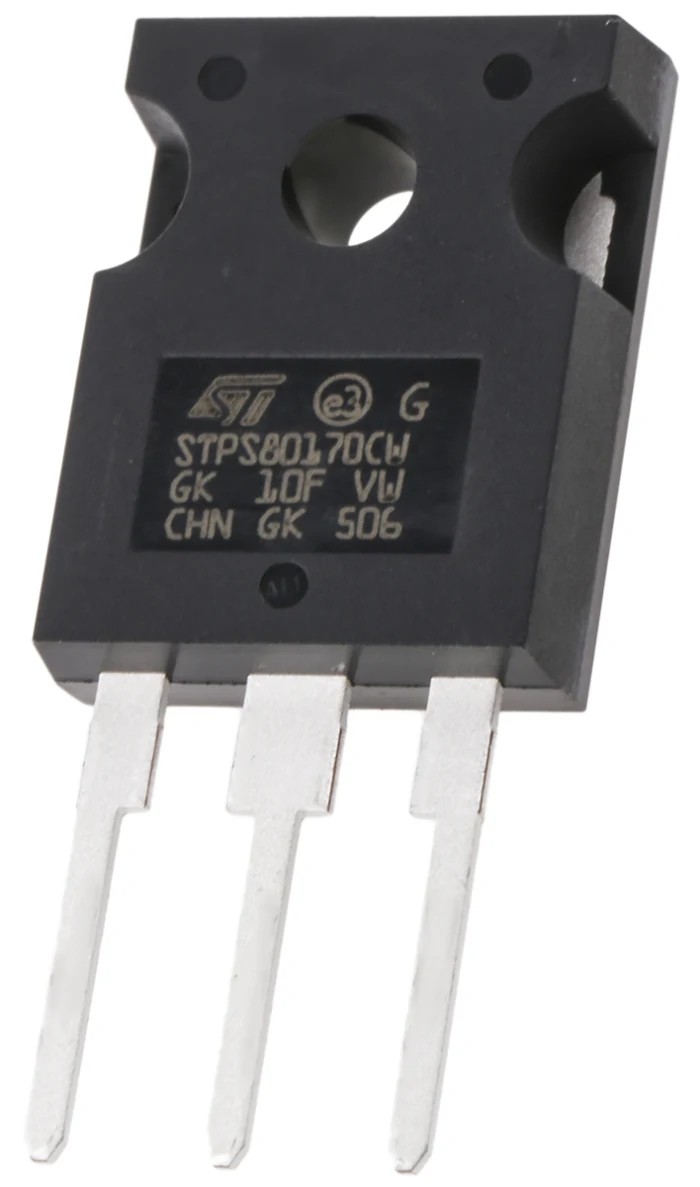

STMicroelectronics Schottky Diode 170 V 80 A 3-Pin TO-247 STPS80170CW
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STPS80170CW |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STPS80170C |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 80A |
| Peak Reverse Repetitive Voltage Vrrm | 170V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 80μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Maximum Forward Voltage Vf | 0.68V |
| - Capacitance | 45 pF |
| STMicroelectronics 150V 40A, Dual Schottky Diode, 3-Pin TO-247 STPS80150CWBrand | STMicroelectronics |
Key Features
- This diode features a maximum continuous forward current of 80 A.
- It has a peak reverse repetitive voltage rating of 170 V for robust blocking capability.
- The device is encapsulated in a TO-247 insulated package ensuring excellent insulation and mechanical strength.
- It offers low forward voltage drop of 0.68 V and low leakage current for improved efficiency.
- The diode withstands a peak non-repetitive forward surge current of 500 A.
- Operating temperature ranges from -65°C to 175°C safe for demanding power electronics.
- Its common cathode diode configuration with 3 pins is ideal for secondary rectification in switching supplies.
- The insulated ISOTOP package provides capacitance of 45 pF and isolated voltage of 2500 VRMS.
Product Description
STMicroelectronics STPS80170CW Schottky Diode 170 V 80 A 3-Pin TO-247 is designed for high frequency switch mode power supplies and power applications requiring efficient rectification.
Featuring a maximum continuous forward current of 80 A and a peak reverse voltage of 170 V, this diode delivers robust performance and reliability in industrial and commercial power electronics systems.
Its TO-247 insulated package (ISOTOP) offers an isolated voltage rating of 2500 VRMS and low package capacitance of 45 pF, reducing switching losses and enhancing system efficiency.
The device exhibits a low forward voltage drop of 0.68 V and a low leakage current (80 µA) combined with high surge tolerance of 500 A peak non-repetitive forward surge current, making it ideal for demanding applications.
Operating temperature from -65°C to 175°C enables use in harsh environments such as industrial automation, power supplies, renewable energy, and automotive power electronics (non-automotive certified).
Maximum continuous forward current: 80 A. Peak reverse repetitive voltage: 170 V. Low forward voltage drop of 0.68 V enhances efficiency. High surge current tolerance of 500 A. Insulated TO-247 ISOTOP package with 3 pins for easy mounting.
Operating temperature range of -65°C to 175°C for rugged use. Low leakage current of 80 µA for minimal losses. Low package capacitance of 45 pF reduces switching losses. This diode is perfectly suited for secondary rectification in switch mode power supplies, industrial power conversion, and electronic power modules.
Explore more semiconductors and diodes for your industrial and electronic applications with EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 80 A.
The peak reverse repetitive voltage rating is 170 V.
This model operates within a temperature range of -65°C to 175°C.
The forward voltage drop is 0.68 V.
It is encapsulated in a TO-247 insulated package.
This diode has 3 pins.
The diode can withstand a peak non-repetitive forward surge current of 500 A.
The capacitance of this diode is 45 pF.
The diode configuration is common cathode.
The peak reverse current is rated at 80 µA.
This diode is suitable for secondary rectification in switch mode power supplies and industrial power conversion.
The dimensions are 20.15 mm in height, 15.75 mm in length, and 5.15 mm in width.
