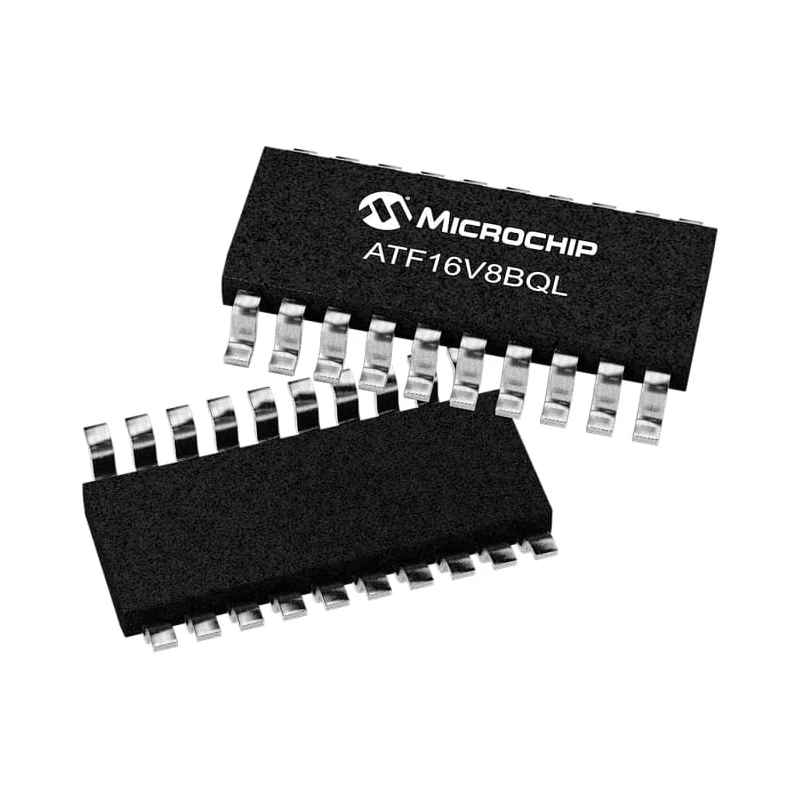

Microchip Electrically Erasable Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In System ATF16V8BQL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 6.6mm |
| Model | ATF16V8BQL |
| Mount Type | Surface |
| Series | ATF16V8BQL |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Pb/Halide-free/RoHS, PCI |
| Pin Count | 20 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 15ns |
| Number of Gates | 150 |
| Number of Macro Cells | 8 |
| Number of User I/Os | 8 |
| Maximum Internal Frequency | 62MHz |
Key Features
- High performance programmable logic device with 150 gates.
- In system programmability and re-programmability supported.
- Surface mount TSSOP 20-pin package for compact mounting.
- Operates at 4.5V to 5V supply voltage for stable operation.
- Wide temperature range from -40°C to 85°C for industrial use.
- Fast maximum propagation delay time of 15ns for rapid processing.
- Compact physical dimensions including 6.6mm length and 1.05mm height.
- Environmentally compliant with Pb/Halide-free and RoHS standards.
Product Description
Microchip ATF16V8BQL is an electrically erasable programmable logic device designed for advanced logic control in electronic systems. This device offers 150 gates and 8 macro cells along with 8 user input/output pins, delivering efficient logic implementation with a high maximum internal frequency of 62 MHz.
It supports in system programmability and re-programmability, enabling easy updates and modifications to the logic without device removal. The device is housed in a surface mount TSSOP package with 20 pins, facilitating integration into modern compact electronic designs.
Operating voltage ranges from 4.5V to 5V with a robust operating temperature span from -40°C to 85°C, making it suitable for industrial and commercial applications requiring reliable performance under varying environmental conditions.
The compact physical dimensions of 6.6mm length and 1.05mm height make it ideal for PCB areas where space is at a premium. It complies with Pb/Halide-free and RoHS standards to meet environmental regulations.
High performance programmable logic device with 150 gates. Supports in system programmability and re-programmability. Surface mount TSSOP 20-pin package. Wide operating voltage range: 4.5V to 5V. Operating temperature from -40°C to 85°C for harsh environments.
Maximum propagation delay time of 15ns for high-speed signals. Compact design with length 6.6mm and height 1.05mm. Compliant with Pb/Halide-free, RoHS, and PCI standards.
This programmable logic device is widely used in industrial automation, electronic manufacturing, digital signal processing, embedded systems, and other sectors requiring reliable and flexible logic solutions. Its combination of fast operating frequency, compact footprint, and environmental compliance makes it a practical component for modern electronics design.
Explore more Microchip programmable logic devices and electronic components at EnvMart to find optimal solutions for your design and production needs.
Explore more products in our Programmable Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum internal frequency of the ATF16V8BQL is 62 MHz, allowing for high-speed signal processing.
This model operates within a voltage range of 4.5V to 5V, ensuring stable performance across various applications.
The maximum propagation delay time is 15 ns, enabling rapid processing of signals.
The ATF16V8BQL features 150 gates and 8 macro cells, providing efficient logic implementation.
This unit has a length of 6.6 mm and a height of 1.05 mm, making it suitable for compact PCB designs.
It is housed in a surface mount TSSOP package with 20 pins, facilitating integration into modern electronic designs.
This model operates within a temperature range of -40°C to 85°C, suitable for industrial applications.
It complies with Pb/Halide-free and RoHS standards, ensuring environmental safety and compliance.
The device includes 8 user input/output pins, allowing for flexible interfacing in various applications.
This programmable logic device is widely used in industrial automation, electronic manufacturing, and embedded systems.
In-system programmability allows for easy updates and modifications to the logic without the need to remove the device, enhancing flexibility in design.
The country of origin for this device is India, reflecting its manufacturing location.
