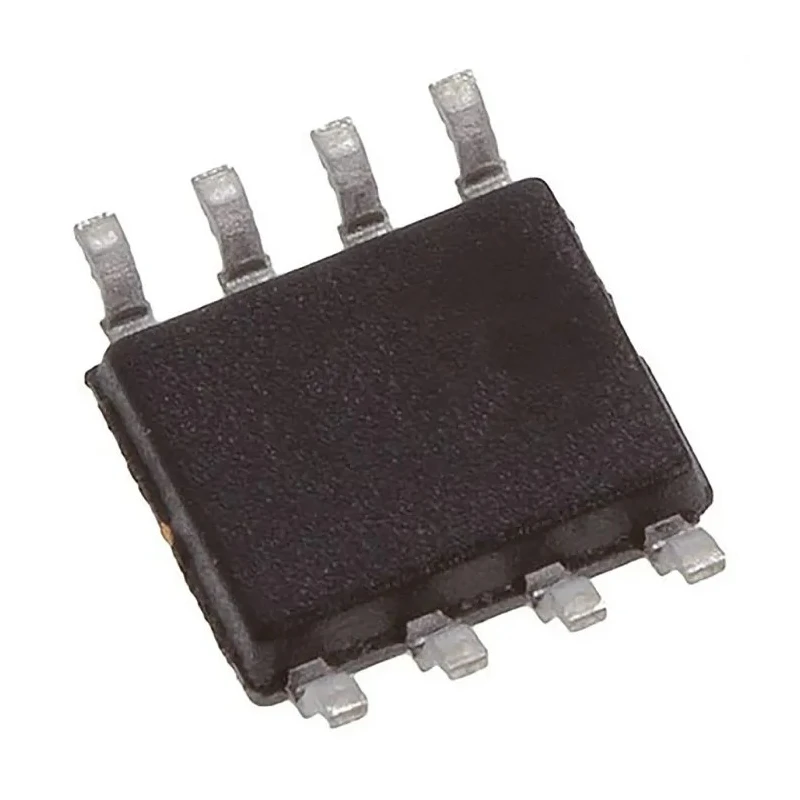

onsemi Operational Amplifier 350 kHz 8-Pin 0.3V SOIC NCS2333DR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Zero drift | 0.07 μV/°C Max |
| Length | 5mm |
| Model | NCS2333DR2G |
| Width | 4mm |
| Mount Type | Surface |
| Low Noise | 1.1 μV |
| Series | NCS2333 |
| Output Current | 11mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Power Supply Voltage | 1.8 V to 5.5 V |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 0.3V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 350kHz |
| Input Bias Current | 200 pA |
| Slew Rate | 0.15V/μs |
| Input Offset Current | 800 pA |
| Low Quiescent Current | 17 μA Typical at 3.3 V |
Key Features
- Low input offset voltage of 10 μV maximum enables precise signal amplification.
- Zero drift of 0.07 μV/°C maximum ensures stability over temperature variations.
- Low noise performance with 1.1 μV noise voltage for clean signal processing.
- Wide power supply range of 1.8 V to 5.5 V supports various system voltages.
- Rail-to-rail input and output voltages improve dynamic range in single-supply systems.
- Automotive standard AEC-Q100 qualified for high reliability in critical applications.
- Surface mount SOIC package offers compact footprint and easy PCB integration.
- Typical low quiescent current of 17 μA at 3.3 V conserves power in portable devices.
Product Description
onsemi NCS2333DR2G is a precision operational amplifier designed for demanding analog signal processing applications. It features a gain bandwidth product (GBP) of 350 kHz and is housed in a compact 8-pin SOIC surface mount package with a height of 1.5 mm, length of 5 mm, and width of 4 mm.
The device operates over a wide power supply range from 1.8 V to 5.5 V with a minimum supply voltage of 1.8 V and a maximum of 5.5 V, enabling use in low-voltage and battery-powered systems. Its low input offset voltage (10 μV max) combined with low offset drift (0.07 μV/°C max) ensures high precision and stability, making it suitable for instrumentation and sensor interface circuits.
The operational amplifier provides low noise levels of 1.1 μV and a low quiescent current of 17 μA typical at 3.3 V, making it ideal for noise-sensitive and power-conscious applications. It offers rail-to-rail input and output capability increasing the dynamic range in single-supply systems and can source or sink output current up to 11 mA.
It is qualified to the automotive AEC-Q100 standard, assuring robust performance in automotive and industrial environments with operating temperatures ranging from -40°C to 125°C.
This amplifier is suitable for use in a variety of industrial, automotive, and commercial electronics applications including sensor signal conditioning, data acquisition systems, portable instrumentation, and low-power analog front ends.
Low input offset voltage enables accurate signal amplification. Zero drift maximizes stability under temperature fluctuations. Low noise supports high-fidelity analog circuits. Wide supply voltage range for flexible power designs.
Rail-to-rail input/output for enhanced dynamic range. Automotive-grade to meet demanding reliability requirements. Compact surface-mount package saves PCB space. Energy-efficient low quiescent current extends battery life.
Broad operating temperature suits harsh industrial conditions. High output current capability drives diverse loads. Explore the wide range of Operational Amplifiers and semiconductor components at EnvMart to find the right solution that fits your design and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product (GBP) of this operational amplifier is 350 kHz.
It operates over a wide power supply range of 1.8 V to 5.5 V.
The input offset voltage is a maximum of 10 μV, enabling precise signal amplification.
It features a low noise performance with a noise voltage of 1.1 μV for clean signal processing.
This operational amplifier can source or sink output current up to 11 mA.
The dimensions of this model are 1.5 mm in height, 5 mm in length, and 4 mm in width.
The typical low quiescent current is 17 μA at 3.3 V, which helps conserve power.
It can operate within a temperature range of -40°C to 125°C, suitable for harsh environments.
Yes, it is qualified to the automotive standard AEC-Q100, ensuring high reliability in critical applications.
This model features a surface mount SOIC package, which allows for easy PCB integration.
The input bias current is specified at 200 pA.
It complies with RoHS standards, ensuring environmental safety and compliance.
