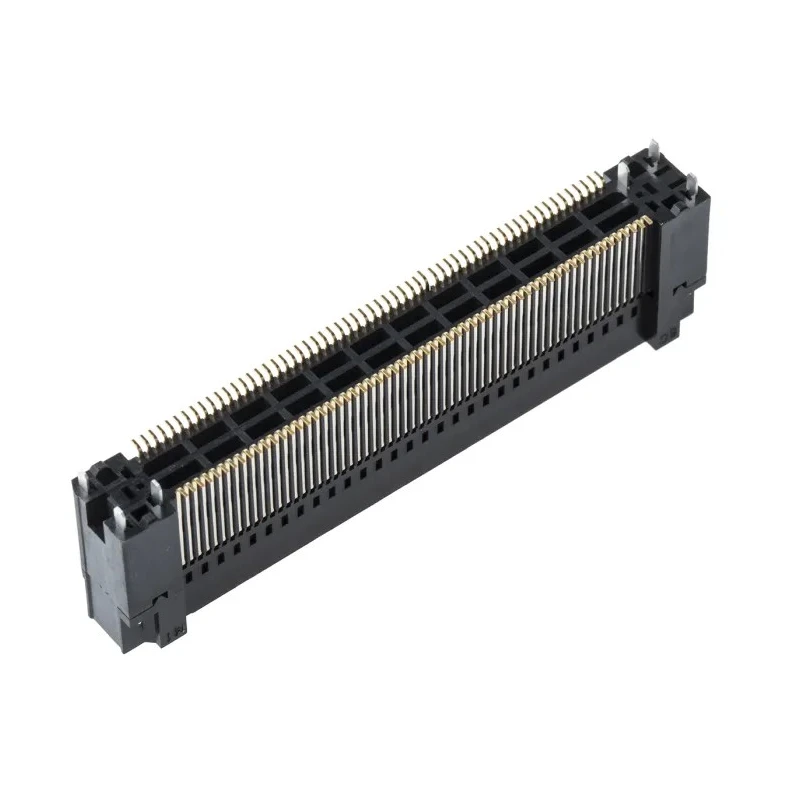

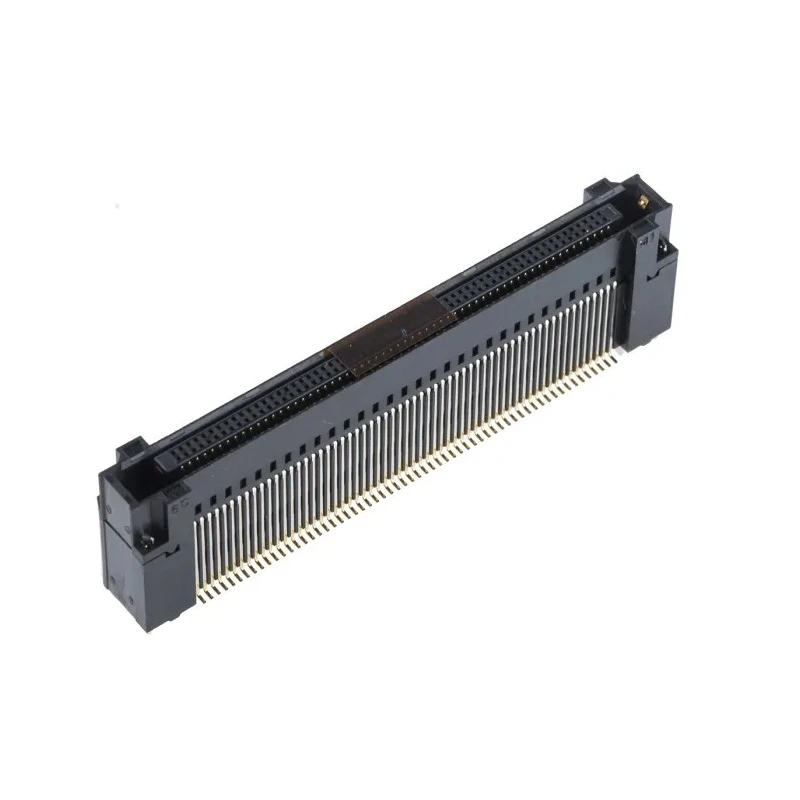

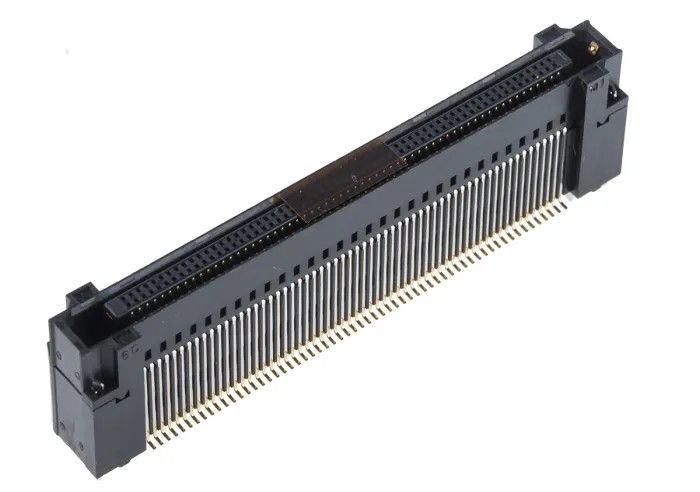

Hirose FunctionMAX FX18 Series Straight Surface PCB Socket, 120-Contact, 2 Row, 0.8 mm Pitch, 100V, 12,500A Current
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 12, 500A |
| Model | FX18 |
| Mount Type | Surface |
| Contact Material | Bronze |
| Series | FunctionMAX FX18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 120 |
| Connector System | Board-to-Board |
Key Features
- Supports 2-row, straight orientation for board-to-board connections.
- Designed for high-speed data transfer with signal integrity enhancement.
- Features advanced multifunctional contacts with dedicated ground and power supply pins.
- Houses 6 through-hole pins for enhanced mechanical retention on PCB.
- Suitable for coplanar, vertical, and parallel board stacking applications.
- Operates reliably between -55°C and 80°C temperature range.
- Constructed with durable bronze contact material compliant with RoHS standards.
- Supports PCI-Express Ver. 2.0 high-speed interface.
Product Description
Hirose FX18-120S-0.8SV20 FunctionMAX FX18 Series Straight Surface PCB Socket is a precision-engineered connector designed for high-speed board-to-board applications, featuring 120 contacts arranged in a 2-row straight layout with 0.8 mm pitch. Operating at 100V and able to carry currents up to 12,500A, it provides exceptional performance and durability for advanced electronic systems.
This connector supports multiple mating styles including coplanar and vertical stacking with enhanced grounding and power supply differentiation achieved via its multifunctional contact design. The ground contacts are strategically positioned to reduce cross talk next to differential pairs, improving signal integrity in high-speed applications. Power contacts carry up to 3A per pin, supporting a total of 12A, reducing pin count and saving PCB space.
The FX18 sockets feature six through-hole pins offering increased PCB retention and resistance to wrenching forces, complemented by large mating guides that facilitate connector alignment and reliable engagement. The robust bronze contacts resist wear and maintain conductivity under industrial operating temperatures ranging from -55°C to 80°C.
This PCB socket series complies with RoHS standards and is suitable for a variety of industrial and commercial uses including medical equipment, industrial motor controllers, servers, measurement devices, smart meters, base station transceivers, and programmable logic controllers (PLCs). It supports PCI Express Ver. 2.0 protocols for high-speed data transmission exceeding 10 Gbit/s.
Supports 2-row, straight orientation for board-to-board connections. Advanced multifunctional contacts for grounding, power, and sequential detection. Through-hole pins improve mechanical stability on PCBs. High-speed transmission up to 10+ Gbit/s for data integrity.
Versatile mounting with solder termination on surface mount PCBs. Robust operating temperature range from -55°C to 80°C. Complies with RoHS directive ensuring environmental safety. Manufactured in Malaysia to high industrial standards.
Explore more Hirose connectors and electronic components on EnvMart to find solutions for your specific PCB assembly and connectivity needs.
Explore more products in our PCB Sockets category.
