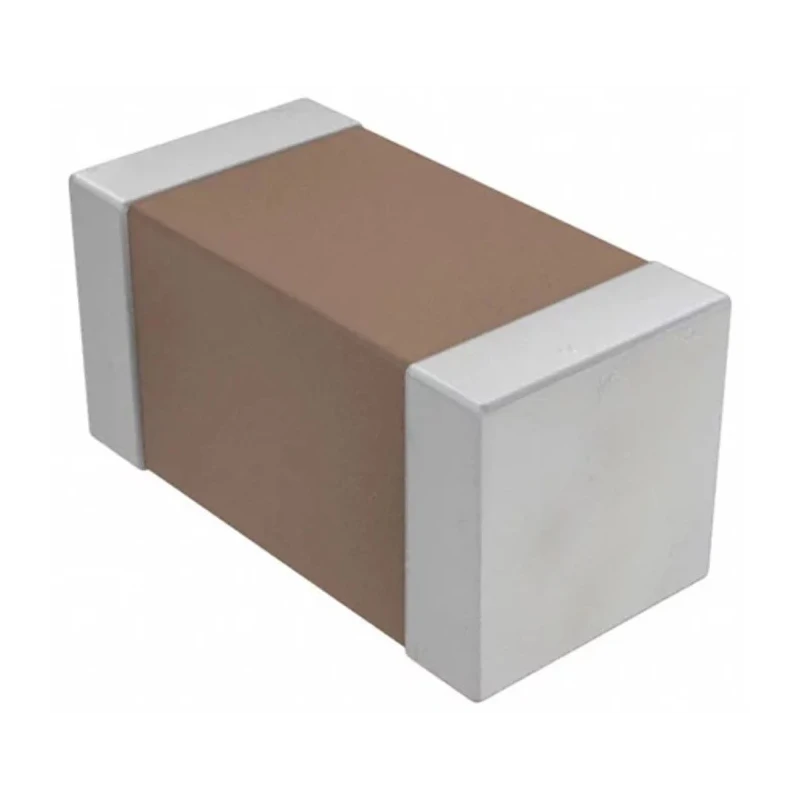

TDK 100 pF Multilayer Ceramic Capacitor, 50V dc, ±5 % Tolerance, Surface Mount CGA1A2C0G1H101J030BA

Free Delivery in India | Lowest Global Shipping Charges

TDK 100 pF Multilayer Ceramic Capacitor, 50V dc, ±5 % Tolerance, Surface Mount CGA1A2C0G1H101J030BA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.3mm
Length	0.6mm
Model	CGA1A2C0G1H101J030BA
Packaging	Tape & Reel
Width	0.3mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	100pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

Constructed using C0G dielectric for excellent temperature stability and low losses.
Complies with automotive standard AEC-Q200 ensuring high reliability.
Compact 0603 package dimension with 0.6 mm length and 0.3 mm width and height.
Features solder termination with tape and reel packaging for automated mounting.
Operates effectively over a temperature range of -55°C to 125°C.
Ideal for automotive systems including battery line smoothing, sensor modules, and engine control units.
Provides low equivalent series resistance and low self-heating for stable performance.
Designed for applications requiring high mechanical strength and superior reliability.

Product Description

TDK CGA1A2C0G1H101J030BA is a high-precision multilayer ceramic capacitor with 100 pF capacitance and rated for 50V dc operation, featuring a ±5 % capacitance tolerance and C0G dielectric. This surface mount device comes in a 0603 package, measuring 0.6 mm in length and 0.3 mm in width and height, making it suitable for compact electronic assemblies.

Designed to comply with AEC-Q200 automotive standards, this capacitor offers excellent thermal stability across a wide operating temperature range from -55°C to 125°C. Its solder termination and tape & reel packaging support high accuracy automatic mounting processes, facilitating efficient manufacturing.

The CGA series capacitors demonstrate low equivalent series resistance and low self-heating, ensuring reliable performance under ripple current conditions, with low equivalent series inductance and superior frequency characteristics. The devices are suitable for automotive applications such as battery line smoothing, sensor modules, engine control units, anti-lock systems, and infotainment systems.

Beyond automotive, this capacitor is valuable in industrial and electronic applications including smart meters, smart grids, solar inverters, AC-DC battery charging, transportation, and agriculture sectors. Its Class I C0G dielectric provides temperature-compensated performance beneficial for precision applications.

Excellent heat resistance and mechanical strength for long-term durability. Guaranteed performance from mature manufacturing processes. Low stray capacitance reduces interference and maintains signal integrity. Compatible with high accuracy automatic mounting equipment.

Provides stable capacitance over a wide temperature range. Tape & reel packaging enables efficient handling and mounting. AEC-Q200 qualification ensures suitability for automotive reliability standards. Explore the MLCCs - Multilayer Ceramic Capacitors category on EnvMart for additional options and specifications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a capacitance of 100 pF.

It is rated for 50V dc operation.

The tolerance for this unit is ±5 %.

The dimensions of the package are 0.6 mm in length and 0.3 mm in both width and height.

It operates effectively over a temperature range from -55°C to 125°C.

It uses a C0G dielectric, which provides excellent temperature stability and low losses.

This capacitor features a solder termination type.

Yes, it complies with the AEC-Q200 automotive standard, ensuring high reliability.

It is packaged in tape and reel format, which supports automated mounting processes.

It is suitable for automotive systems, including battery line smoothing, sensor modules, and engine control units, as well as various industrial applications.

This model provides low equivalent series resistance, ensuring stable performance under ripple current conditions.

The country of origin for this capacitor is India.
