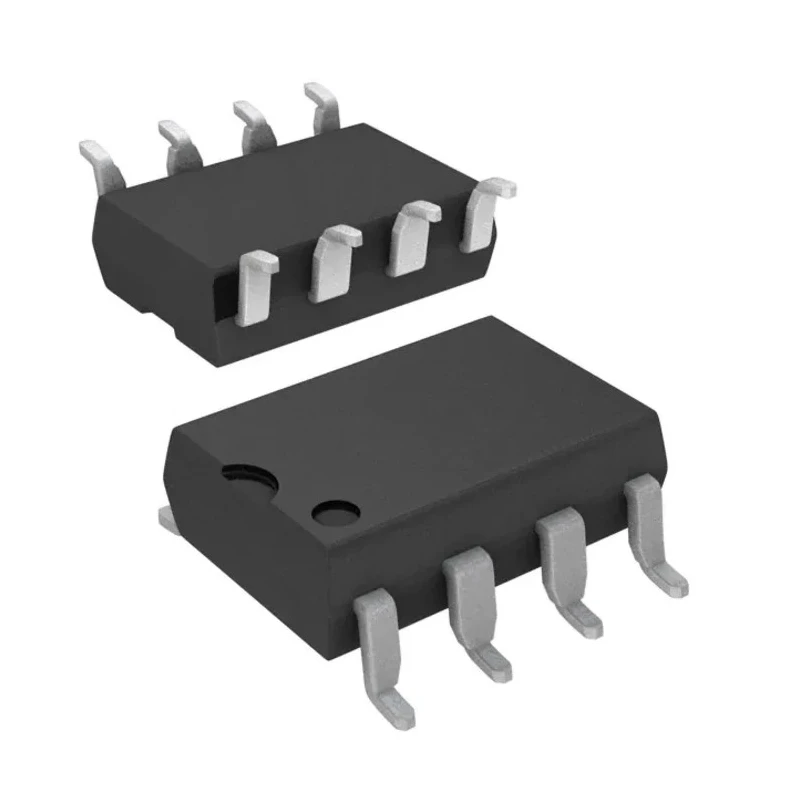

Vishay AC/DC Input Optocoupler Surface Mount 8-Pin SMD IL300-F-X007
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Vishay |
| Model | IL300-F-X007 |
| Packaging | Tube |
| Mount Type | Surface |
| Series | IL300 |
| Maximum Operating Temperature | 100°C |
| Package Type | SMD |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 8 |
| Input Current Type | AC/DC |
| Typical Rise Time | 1.75μs |
Key Features
- Features an AlGaAs infrared emitter and feedback photodiode for accurate control.
- Maximum forward voltage of 1.5 V and maximum input current of 60 mA.
- Operating temperature from -55°C to 100°C for robust performance.
- Isolation voltage rating of 5300 VRMS for superior safety and noise immunity.
- Typical rise and fall times of 1.75 microseconds enable fast switching.
- Complies with CQC, UL, FIMKO, cUL, BSI, and DIN EN 60747-5-5 standards.
- Packaged in tubes for convenient handling and surface mount assembly.
- Suitable for industrial, laboratory, and electronic signal isolation applications.
Product Description
Vishay IL300-F-X007 AC/DC Input Optocoupler is a high-performance linear optocoupler featuring a surface mount 8-pin SMD package suitable for precise AC and DC input coupling. This device includes an AlGaAs infrared emitter that radiates towards an output PIN photodiode and a feedback photodiode, which enables control of emitter output current for consistent performance.
The optocoupler features a maximum forward voltage of 1.5 V and supports a maximum input current of 60 mA, making it suitable for various electronic circuit applications. With operating temperature range from -55°C to 100°C, it ensures reliable operation under harsh industrial and electronic conditions.
The electrical isolation voltage rating of 5300 VRMS offers enhanced safety and noise immunity between input and output circuits. Typical rise and fall times of 1.75 microseconds assure fast and accurate signal transmission. The device meets international safety and quality standards such as CQC, UL, FIMKO, cUL, BSI, and DIN EN 60747-5-5 (VDE 0884-5).
Packaged as tubes containing multiple units for ease of manufacturing integration, the Vishay IL300-F-X007 is broadly used in industrial, laboratory instrumentation, manufacturing, and other electronic equipment requiring isolated signal transfer.
Features an AlGaAs infrared emitter with feedback photodiode for stable emitter output control. Maximum forward voltage of 1.5 V and maximum input current of 60 mA. Operating temperature range from -55°C to 100°C for reliability in diverse environments.
Isolation voltage rated at 5300 VRMS for high safety and noise immunity. Fast typical rise and fall times of 1.75 μs for efficient switching. Compliance with major international safety and quality approvals. Packaged in tubes suited for surface mount assembly processes.
This AC/DC input Optocoupler is ideal for electronic designs that require accurate, stable, and isolated signal coupling. It supports applications in industrial automation, laboratory instrumentation, power electronics, and communication devices.
Browse the Vishay product range and similar categories at EnvMart for reliable electronic components and optoelectronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 60 mA.
It operates within a temperature range of -55°C to 100°C.
The isolation voltage rating is 5300 VRMS, providing enhanced safety and noise immunity.
The typical rise and fall times are 1.75 microseconds, allowing for fast switching.
This model is packaged in tubes, which facilitates convenient handling and surface mount assembly.
It supports both AC and DC input types.
This unit features one channel.
The maximum forward voltage is 1.5 V.
It is designed for surface mount applications.
It complies with CQC, UL, FIMKO, cUL, BSI, and DIN EN 60747-5-5 standards.
The country of origin for this product is Malaysia.
This model belongs to the IL300 series.
