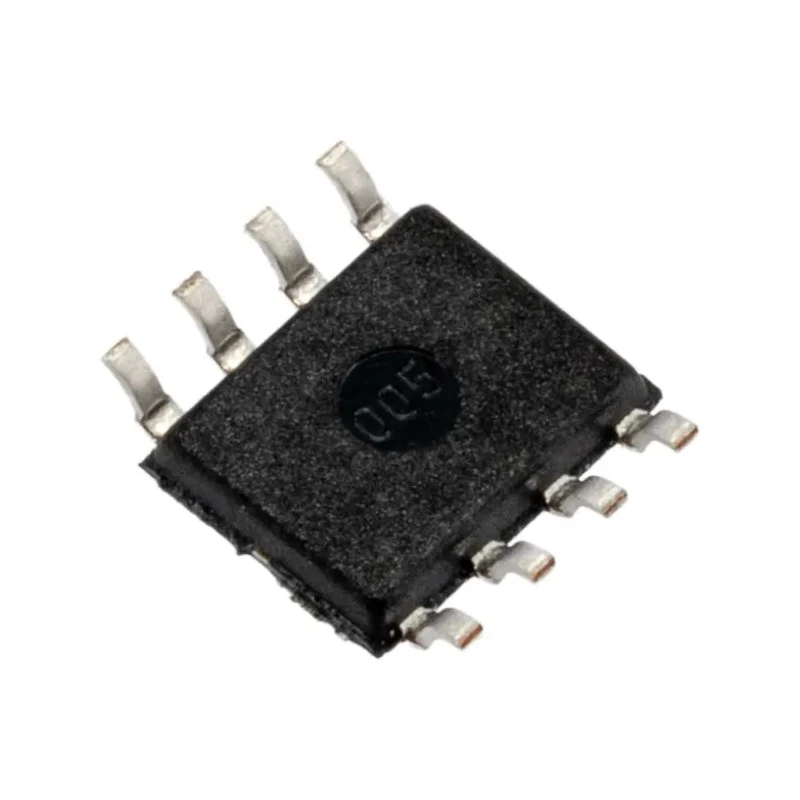

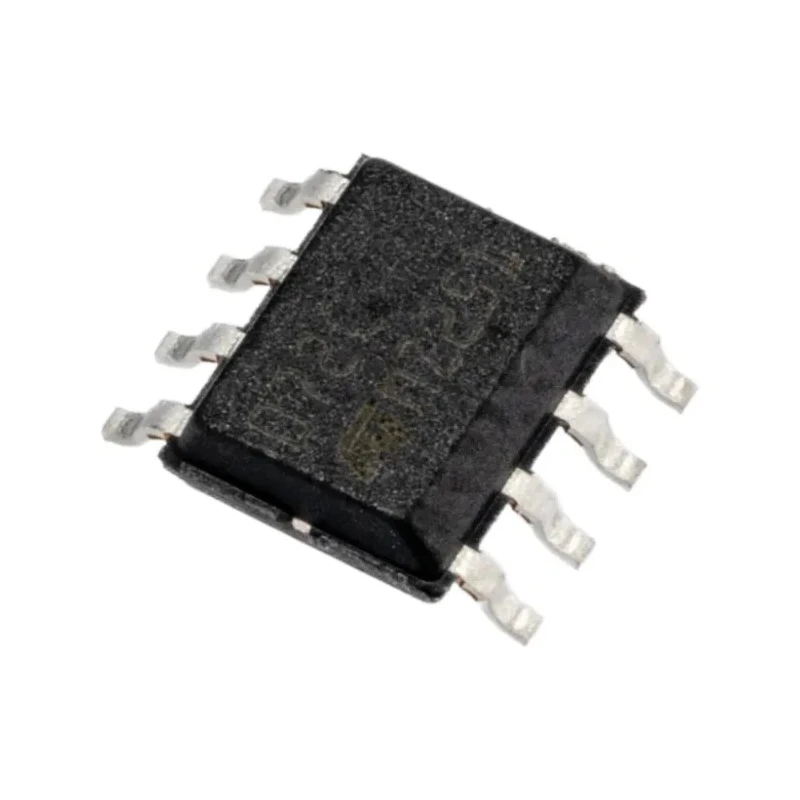

STMicroelectronics Operational Amplifier 4 MHz Gain Bandwidth, 8-Pin SOIC, 36V TL072CDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TL072CDT |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | TL072 |
| Output Current | 60mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Low Harmonic Distortion | 0.01% (TL07x) |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 20 nA |
| Vos - Input Offset Voltage | 10 mV |
| Slew Rate | 16V/μs |
| Input Offset Current | 10 nA |
| High Slew Rate | 16 V/μs (TL07x, TL08x), 3.5 V/μs (TL06x) |
Key Features
- High input impedance with JFET input stage ensures low input bias current.
- Wide supply voltage range of 6V to 36V supports versatile applications.
- Low noise performance with typical 15 nV/√Hz enhances signal fidelity.
- High slew rate of 16 V/μs enables fast response in dynamic circuits.
- Low input offset voltage of 10 mV minimizes signal distortion.
- Output short circuit protection enhances device reliability.
- RoHS compliant and meets automotive standard AEC-Q100.
- Compact dimensions with 4.9mm length, 3.9mm width, and 1.25mm height.
Product Description
STMicroelectronics TL072CDT is a high-performance operational amplifier featuring a 4 MHz gain bandwidth and dual JFET inputs providing low input bias currents. Packaged in an 8-pin SOIC surface mount format, it supports a wide supply voltage range from 6V to 36V, making it suitable for varied electronic applications across industrial, automotive, laboratory, and electronic manufacturing sectors.
The device offers a high slew rate of 16 V/μs ensuring rapid signal processing and low input offset voltage of 10 mV, which contributes to signal accuracy. Its low noise characteristic, typically 15 nV/√Hz, and low harmonic distortion of 0.01% make it ideal for precision analog signal amplification.
Reliability is enhanced by built-in output short circuit protection and internal frequency compensation, with operation compliant to RoHS and the automotive standard AEC-Q100. Its compact size with dimensions 4.9 mm length, 3.9 mm width, and 1.25 mm height allows integration in space-constrained designs.
The TL072CDT is optimized for applications requiring dual operational amplifiers with low power consumption and high performance, including industrial control systems, audio signal processing, and instrumentation.
High input impedance with JFET inputs ensures minimal loading on previous stages. Wide common-mode and differential voltage ranges improve application flexibility. Low input bias current of 20 nA supports precision low-current measurements.
Low offset voltage temperature coefficient maintains accuracy under temperature variations. High slew rate of 16 V/μs supports rapid signal changes. Output short circuit protection prevents damage during faults. Package type SOIC enables automated PCB assembly.
Dual channel amplifier ideal for stereo or differential circuits.
EnvMart offers this STMicroelectronics TL072CDT operational amplifier for diverse applications in electronics and industrial machine control. Explore more Operational Amplifiers and semiconductors in our Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL072CDT has a gain bandwidth product of 4 MHz, allowing for effective signal amplification in various applications.
The TL072CDT features two channels, making it ideal for stereo or differential circuit applications.
The dimensions of this operational amplifier are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
The TL072CDT has a low input offset voltage of 10 mV, which helps minimize signal distortion.
This operational amplifier can operate at a maximum temperature of 70°C, ensuring performance in various environments.
The slew rate of this model is 16 V/μs, enabling fast response times in dynamic circuits.
It is packaged in an 8-pin SOIC format, suitable for surface mount applications.
The TL072CDT has an input bias current of 20 nA, which supports precision low-current measurements.
Yes, it is RoHS compliant and meets the automotive standard AEC-Q100, ensuring it adheres to relevant regulations.
This operational amplifier can provide an output current of up to 60 mA, suitable for various applications.
The TL072CDT features a low harmonic distortion of 0.01%, enhancing signal fidelity in amplification tasks.
