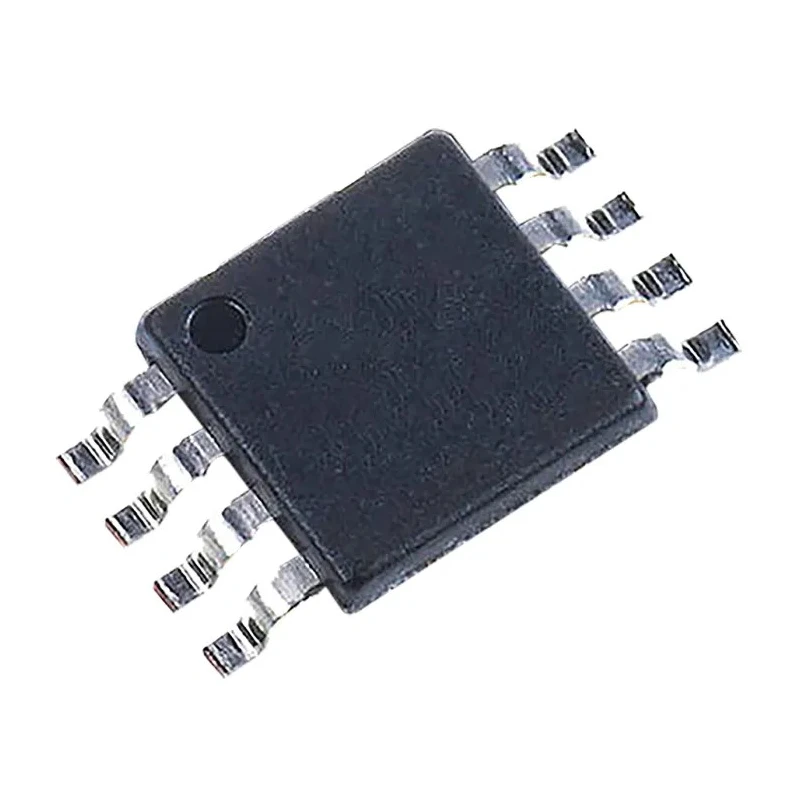

onsemi Operational Amplifier, Surface Mount, 8-Pin MSOP, 350 kHz Gain Bandwidth, 0.3V Max Supply Voltage NCS2325DMR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.95mm |
| Length | 3.1mm |
| Model | NCS2325DMR2G |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | NCS2325 |
| Output Current | 35μA |
| Maximum Operating Temperature | 150°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 0.3V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 350kHz |
| Input Bias Current | 50 pA |
| Slew Rate | 0.16V/μs |
| Input Offset Current | 100 pA |
Key Features
- Provides a low input offset voltage of 50 μV for precise operation.
- Supports dual channels with low quiescent current of 35 μA maximum.
- Operates within a wide voltage supply range from 0.3V to 1.8V.
- Designed for automotive applications with AEC-Q100 compliance.
- Exhibits low input bias and offset currents suitable for sensitive measurement circuits.
- RoHS compliant for environmental safety and regulatory compliance.
- Wide operating temperature range from −40°C to +150°C for harsh environments.
Product Description
onsemi NCS2325DMR2G is a state-of-the-art operational amplifier designed for precision analog applications in automotive, industrial, and electronic measurement systems. This dual-channel amplifier features zero-drift input technology with a maximum input offset voltage of 50 μV and low noise performance of 1 μV peak-to-peak, making it ideal for sensitive signal processing.
The device supports rail-to-rail input and output operation with a low quiescent current of only 35 μA, ensuring energy-efficient performance in battery-powered devices. Packaged in a compact 8-pin MSOP surface mount package (3.1 mm × 3.1 mm × 0.95 mm), it fits well in space-constrained PCB layouts.
Operating over a supply voltage range from 0.3 V up to 1.8 V, the NCS2325DMR2G is suitable for low-voltage systems. It complies with the automotive standard AEC-Q100, emphasizing its robustness and reliability in automotive and harsh industrial environments, with operating temperatures from -40°C to +150°C.
This onsemi amplifier exhibits a gain bandwidth product of 350 kHz and a slew rate of 0.16 V/μs, providing stable and responsive operation for a variety of analog signal conditioning tasks.
Additional key electrical parameters include a maximum output current of 35 μA, input bias current of 50 pA, and input offset current of 100 pA, supporting precision applications such as sensor signal amplification and instrumentation.
Low input offset voltage and bias current for accurate signal amplification. Compact MSOP package enables flexible PCB design. Automotive grade qualification ensures high reliability in demanding environments. Wide temperature and voltage range suitable for diverse industrial applications.
Ideal for industrial control, automotive electronics, portable medical instrumentation, and general analog circuit design, the onsemi NCS2325DMR2G operational amplifier sets a high standard for precision, efficiency, and reliability.
Explore EnvMart for a wide range of semiconductors and Operational Amplifiers to suit your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 350 kHz, allowing for stable and responsive operation in various analog signal conditioning tasks.
It operates within a supply voltage range from 0.3 V to 1.8 V, making it suitable for low-voltage applications.
The dimensions of the MSOP package are 3.1 mm in length, 3.1 mm in width, and 0.95 mm in height.
The maximum operating temperature for the NCS2325DMR2G is 150°C, suitable for harsh environments.
This operational amplifier supports dual channels, enabling versatile signal amplification.
The input offset voltage is a maximum of 50 μV, providing precise operation for sensitive measurement circuits.
The input bias current for this operational amplifier is 50 pA, which is beneficial for precision applications.
The slew rate of this operational amplifier is 0.16 V/μs, allowing for quick response to input signal changes.
Yes, it complies with the automotive standard AEC-Q100, emphasizing its reliability in automotive applications.
This model uses surface mount technology, making it suitable for compact PCB designs.
The maximum output current of this operational amplifier is 35 μA, which supports various applications.
It is RoHS compliant, ensuring it meets environmental safety and regulatory standards.
