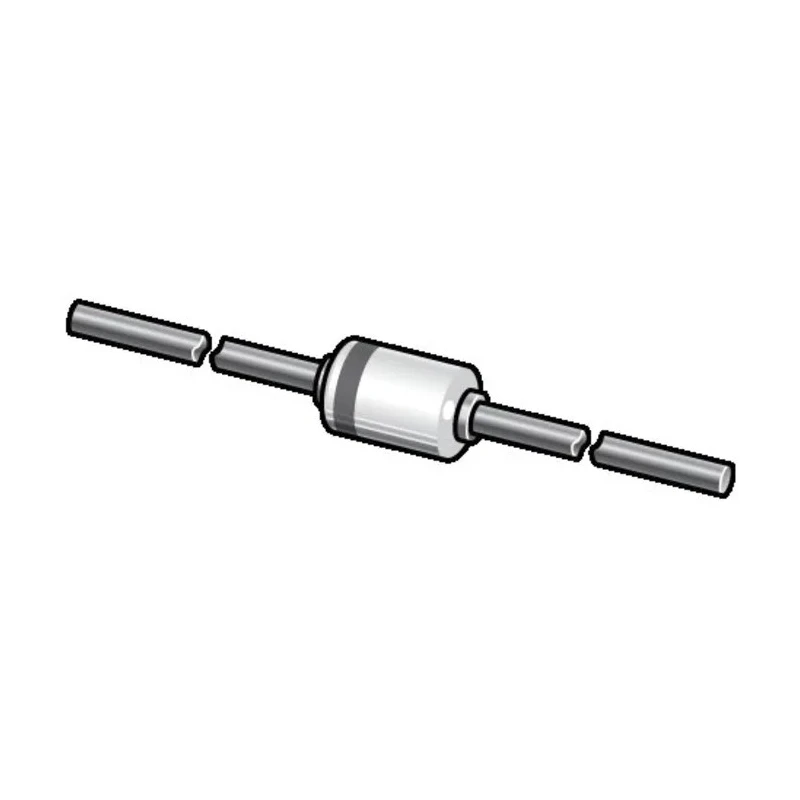

Nexperia 12.2 V 500 mW Surface Mount 2-Pin Voltage Regulator Zener Diode BZV85-C12,113

Name: Nexperia 12.2 V 500 mW Surface Mount 2-Pin Voltage Regulator Zener Diode BZV85-C12,113
Brand: Nexperia
SKU: 155570
Price: 0.06 USD
Availability: InStock



Category Zener Diode Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	2.6mm
Length	4.8mm
Model	BZV85-C12,113
Mount Type	Surface
Series	BZV85
Maximum Operating Temperature	200°C
Working voltage range	nominal 3.3 V to 75 V (E24 range)
Package Type	SOD-80
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	12.2V
Zener Type	Voltage Regulator
Maximum Zener Impedance	25Ω
Typical Voltage Temperature Coefficient	8.4mV/K
Total power dissipation	max. 1.3 W
Non-repetitive Peak reverse power dissipation	max. 60 W
onsemi 1, 12 V Zener Diode, Single 1 W 5 % Through Hole 2-Pin DO-41Brand	onsemi
Tolerance series	approximately ±5 %

Key Features

Single diode configuration designed for voltage regulation.
Nominal Zener voltage of 12.2 volts with a tolerance of ±5%.
Maximum power dissipation rated at 500 mW for medium power applications.
Compact surface mount SOD-80 package with 2 pins for efficient PCB integration.
Operating temperature range from -65°C to 200°C suitable for harsh environments.
Maximum reverse leakage current of 100 nA ensuring low leakage losses.
Maximum Zener impedance of 25 Ω for stable voltage regulation.
Test current set at 5 mA to verify performance under nominal conditions.

Product Description

Nexperia BZV85-C12,113 is a single 12.2 V voltage regulator Zener Diode packaged in a compact 2-pin surface mount SOD-80 format, designed for use in electronics requiring precise voltage regulation and protection.

This diode features a moderate power dissipation capacity of 500 mW, making it suitable for medium power density circuits in industrial, commercial, and electronic component applications. It is built for operation across a wide temperature range from -65°C to 200°C, supporting robust usage in demanding environments.

The device exhibits a nominal Zener voltage of 12.2 volts with a tolerance of ±5%, providing reliable voltage reference and regulation. Its maximum Zener impedance of 25 Ω and low maximum reverse leakage current of 100 nA improve efficiency and stability in voltage regulation tasks.

The SOD-80 package size (length 4.8 mm, height 2.6 mm) supports high-density PCB layouts, optimizing spatial use in compact electronic designs. The pin count of 2 enables straightforward integration in voltage regulation circuits.

This diode is well-suited for applications such as voltage clamping, over-voltage protection, and voltage reference in power management and electronic signal conditioning, including industrial controls, instrumentation, and consumer electronics.

Single diode configuration designed for voltage regulation. Nominal Zener voltage of 12.2 volts with ±5% tolerance. Maximum power dissipation of 500 mW for medium power applications. Compact surface mount SOD-80 package with 2 pins.

Operating temperature range from -65°C to 200°C. Maximum reverse leakage current of 100 nA. Maximum Zener impedance of 25 Ω for voltage stability. Test current at 5 mA for performance verification. Typical voltage temperature coefficient of 8.4 mV/K.

Manufactured in China adhering to industrial standards.

This component provides versatile and reliable voltage regulation for industrial, laboratory, manufacturing, and electronic system design applications. Explore the EnvMart catalog for more semiconductor components and voltage regulation devices.
