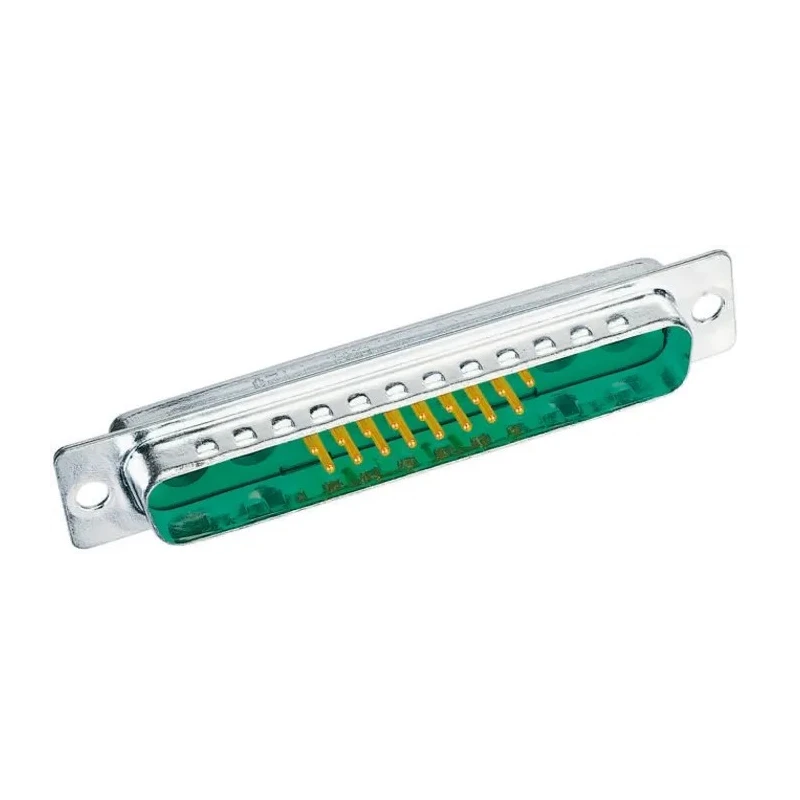

HARTING D-Sub 7 Way Straight Panel Mount D-Sub Connector Male/Female 09692117072
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder Cup |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | DIN 41 652 T1 |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Connector Gender | Male/Female |
| Mixed Contact Layout | 7W2 |
Key Features
- Features 7 contacts rated for 5A current carrying capacity.
- Designed with a straight orientation and panel mount type for secure installation.
- Supports operating temperature range from -55°C to 125°C for harsh environments.
- Connector includes a mixed gender configuration with male/female contacts.
- Contact plating with tin ensures corrosion resistance and durability.
- Termination via solder cup allows reliable wiring connections.
- Compliant with DIN 41 652 T1 standards, ensuring quality and compatibility.
Product Description
HARTING 09692117072 D-Sub 7 Way Straight Panel Mount D-Sub Connector Male/Female is engineered for reliable and efficient electrical connection in industrial, manufacturing, and electronic equipment assemblies. This connector features a robust steel shell housing that offers strength and durability, protected with a plated steel shell designed for panel mounting.
The product utilizes copper alloy contacts plated with tin, providing optimal conductivity and corrosion resistance. Its mixed contact layout (7W2) enables versatile signal and power wiring configurations. Termination is achieved via solder cup contacts which are pre-mounted to facilitate quick and secure wire termination.
Operating at a voltage rating of 1000V and current capacity of 5A, the connector performs well in high-demand electrical environments. It supports a temperature range from -55°C minimum to 125°C maximum, suitable for harsh environmental conditions in industrial and laboratory settings.
With male/female mixed connector gender design and straight orientation, it fits securely in panel mount applications, enabling easy assembly and maintenance. The flange through-hole of 3.1 mm ensures solid mounting stability.
Conforming to DIN 41 652 T1 standards, this D-Sub Connector meets recognized industry norms for electronic component reliability and interoperability. 7 contacts with current rating of 5A and voltage rating of 1000V. Steel housing and plated steel shell offer durability and electromagnetic compatibility.
Contact plating with tin for corrosion resistance. Solder cup termination enables strong wire connections. Operating temperature from -55°C to 125°C supports industrial use. Panel mount type with straight connector orientation.
Suitable for electronics, industrial machinery, HVAC, and manufacturing applications.
This connector helps improve production efficiency by providing reliable signal and power connections in control panels, embedded systems, and machinery. It is designed for use in electronics, power distribution, and industrial automation.
Explore more high-quality connectors and electronic components in the Electronics & Electricals category at EnvMart.
