Bourns SMT Schottky Bridge Rectifier, 100 V Peak Reverse Voltage, 30 A Forward Surge Current, 4-Pin Single CD-HD01

Free Delivery in India | Lowest Global Shipping Charges

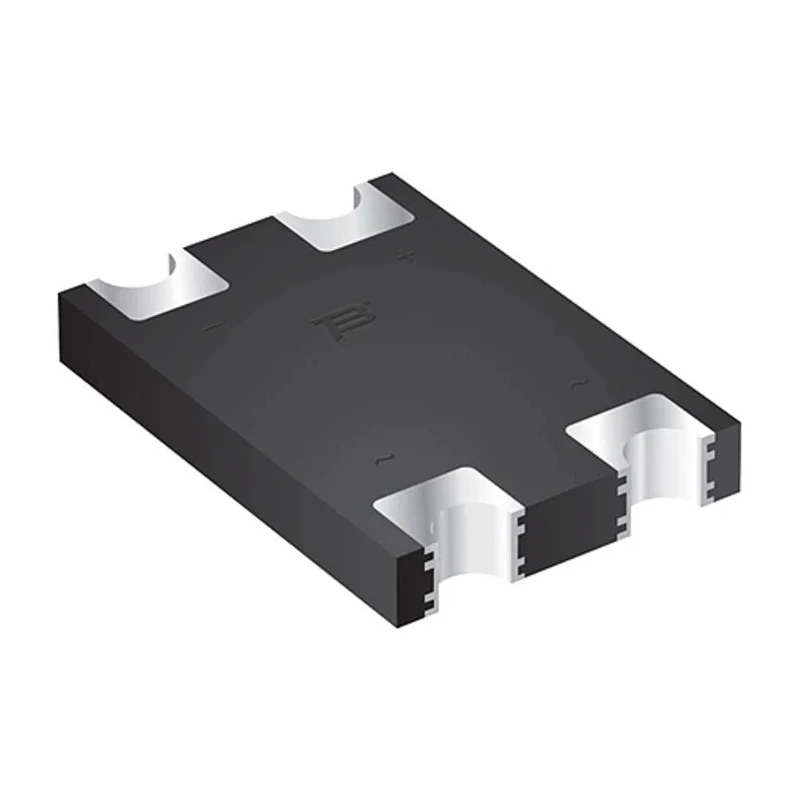

Bourns SMT Schottky Bridge Rectifier, 100 V Peak Reverse Voltage, 30 A Forward Surge Current, 4-Pin Single CD-HD01

Name: Bourns SMT Schottky Bridge Rectifier, 100 V Peak Reverse Voltage, 30 A Forward Surge Current, 4-Pin Single CD-HD01
Brand: BOURNS
SKU: 199083
Price: 0.37 USD
Availability: InStock



Category Bridge Rectifier Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	1.22mm
Length	6.25mm
Model	CD-HD01
Width	4.85mm
Mount Type	Surface
Series	CD-HD0
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	SMT
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	100V
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Forward Current If	1A
Peak Forward Voltage Vf	850mV

Key Features

The device features a compact surface-mount SMT package suitable for automated assembly.
Rated for a forward current of 1 ampere and peak non-repetitive forward surge current of 30 amperes.
Operating temperature range from -55°C to 125°C ensures stable performance.
Includes 4 pins arranged in a single-phase bridge configuration.
Ultra-low forward voltage drop of 850 mV increases efficiency.
Built with Schottky barrier technology for fast switching and minimal losses.
Designed for high-efficiency rectification in electronic power supplies and circuits.

Product Description

Bourns CD-HD01 is a surface-mount SMT Schottky bridge rectifier designed to convert alternating current (AC) to direct current (DC) efficiently. This 4-pin single-phase bridge rectifier is rated to handle a peak reverse repetitive voltage of 100 V and a maximum forward current of 1 A, with a peak surge current rating of 30 A.

The device incorporates Schottky barrier technology that delivers ultra-low forward voltage drop of 850 mV, resulting in higher efficiency and reduced heat dissipation compared to conventional rectifiers. It is housed in a compact surface mount package with dimensions of 6.25 mm length, 4.85 mm width, and 1.22 mm height, making it suitable for densely packed electronic assemblies.

Operating over a wide temperature range from -55°C to 125°C, this bridge rectifier is reliable for industrial, automotive, telecommunications, and consumer electronics applications. It supports efficient power conversion in compact power supplies, voltage regulation circuits, and other DC power generation uses.

The device features a compact surface-mount SMT package suitable for automated assembly. Rated for a forward current of 1 ampere and peak non-repetitive forward surge current of 30 amperes. Operating temperature range from -55°C to 125°C ensures stable performance.

Includes 4 pins arranged in a single-phase bridge configuration. Ultra-low forward voltage drop of 850 mV increases efficiency. Built with Schottky barrier technology for fast switching and minimal losses. Dimensions approximately 6.25 mm length, 4.85 mm width, and 1.22 mm height.

Designed for high-efficiency rectification in electronic power supplies and circuits.

This Bourns CD-HD01 Bridge Rectifier is ideal for use in industrial machinery controls, power management modules, laboratory test equipment, automotive electronics, and consumer device power supplies. It provides precise rectification performance, reliability, and integration ease for modern electronic systems.

Explore more power semiconductors and electronic components on EnvMart to support your design and manufacturing needs.
