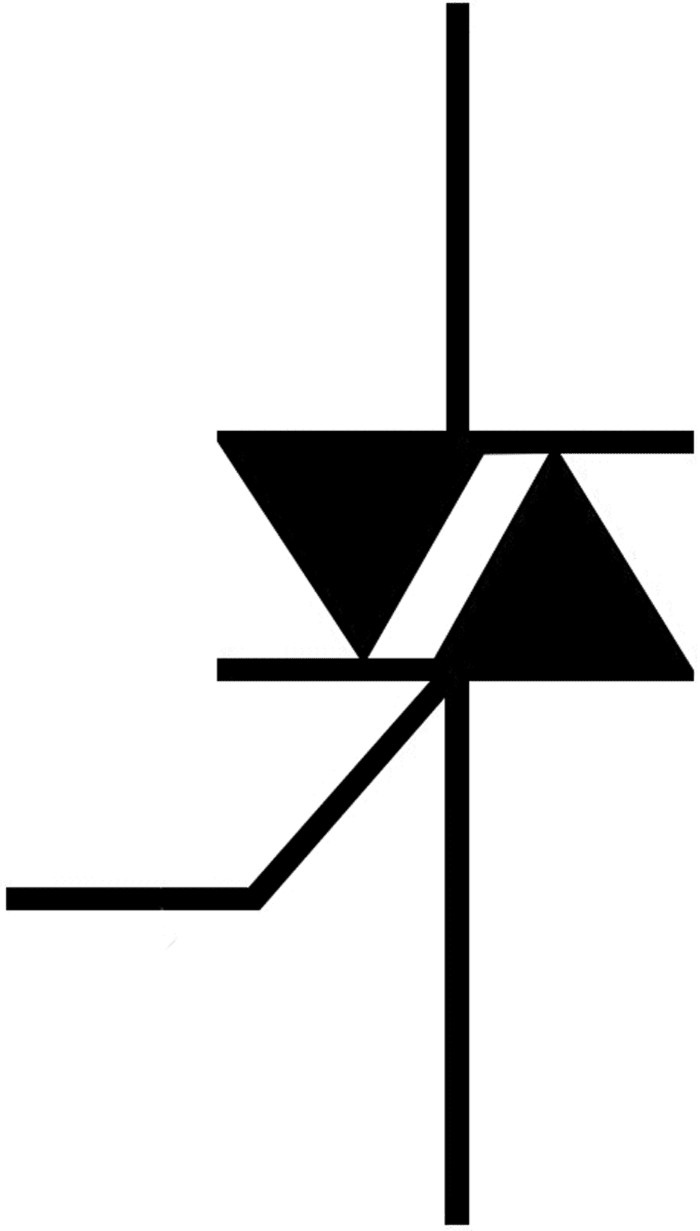

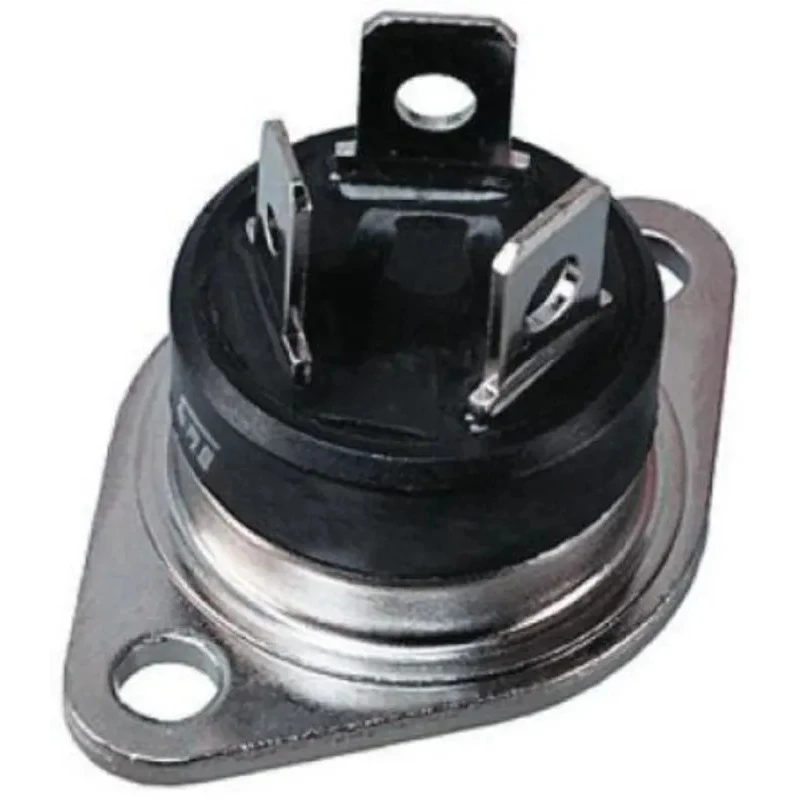

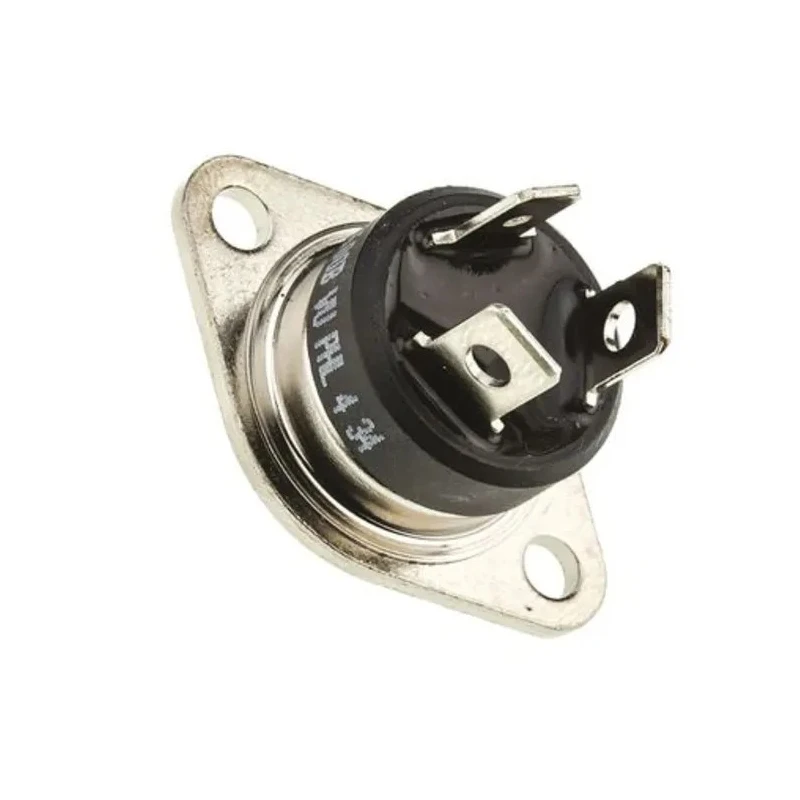

STMicroelectronics Through Hole 3-Pin TRIAC 25A 800V Gate Trigger 1.3V BTA25-800BW
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | BTA25-800BW |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | RD-91 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 260A |
| Maximum Gate Trigger Current Igt | 50mA |
| Maximum Holding Current Ih | 75mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak Gate Power Dissipation | 1W |
Key Features
- Features a maximum gate trigger voltage of 1.3V for efficient triggering.
- Surge current rating up to 260A providing robustness in load conditions.
- Compact package type RD-91 with length 10.4mm and height 15.9mm.
- Operates reliably in temperature range from -40°C to 125°C.
- RoHS compliant ensuring environmental safety standards.
- Peak gate power dissipation of 1W supports stable operation.
- Single configuration device with 3 pins suitable for through hole mounting.
- Maximum gate trigger current specified at 50mA for accurate control.
Product Description
STMicroelectronics BTA25-800BW is a reliable through hole 3-pin TRIAC suitable for AC power control applications across industrial, domestic, and commercial sectors. It supports a rated average on-state current of 25A and repetitive peak reverse voltage of 800V, making it ideal for switching medium power loads efficiently.
The device features a gate trigger voltage of 1.3V and gate current of 50mA, allowing precise triggering in varied environments. Its surge current rating of 260A ensures robustness under transient load conditions. Packaged in a compact RD-91 format with a length of 10.4mm and height of 15.9mm, it enables easy integration into PCB designs with through hole mounting.
Operating temperature range from -40°C to 125°C facilitates reliable performance in diverse industrial and environmental conditions. The TRIAC is RoHS compliant, conforming to environmental safety standards.
Maximum gate trigger voltage of 1.3V enhances low-voltage activation. Peak gate power dissipation of 1W ensures operational stability. Single configuration with 3 pins suitable for through hole mounting. Maximum holding current of 75mA secures stable conduction.
Compact dimensions facilitate space-efficient design. Suitable for use in industrial machinery, HVAC systems, and power control applications. Designed for robust performance in electrical semiconductor circuits.
This STMicroelectronics TRIAC model BTA25-800BW supports efficient and reliable control of AC power switching. It is widely used in industrial controls, lighting regulation, motor speed control, and other power switching components.
Explore more semiconductor components and TRIACs by STMicroelectronics in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum gate trigger voltage for this model is 1.3V, allowing for efficient triggering.
The rated average on-state current for the BTA25-800BW is 25A, making it suitable for medium power loads.
This TRIAC has a surge current rating of 260A, providing robustness under transient load conditions.
The BTA25-800BW operates reliably within a temperature range of -40°C to 125°C.
This model has a length of 10.4mm and a height of 15.9mm, packaged in a compact RD-91 format.
The maximum gate trigger current is specified at 50mA, allowing for accurate control.
It is packaged in an RD-91 format, suitable for through hole mounting.
The maximum holding current for the BTA25-800BW is 75mA, ensuring stable conduction.
Yes, this model is RoHS compliant, adhering to environmental safety standards.
The peak gate power dissipation is 1W, which supports stable operation.
This TRIAC is suitable for AC power control applications in industrial machinery, HVAC systems, and lighting regulation.
The repetitive peak reverse voltage for this model is 800V, making it suitable for switching applications.
