TDK Wirewound Shielded Surface Mount Inductor 10 μH ±20/±30 % 1.26 A Idc Ferrite Core VLCF4018T-100MR74-2

TDK VLCF4018T-100MR74-2 is a high-quality wirewound shielded surface mount inductor featuring a ferrite core, providing a nominal inductance of 10 μH with a tolerance of ±20% to ±30%. Designed for use in electronic circuits requiring stable inductance and current handling capabilities, this component supports a maximum DC current of 1.26 A. It has been constructed using wirewound technology to deliver low noise and high reliability.

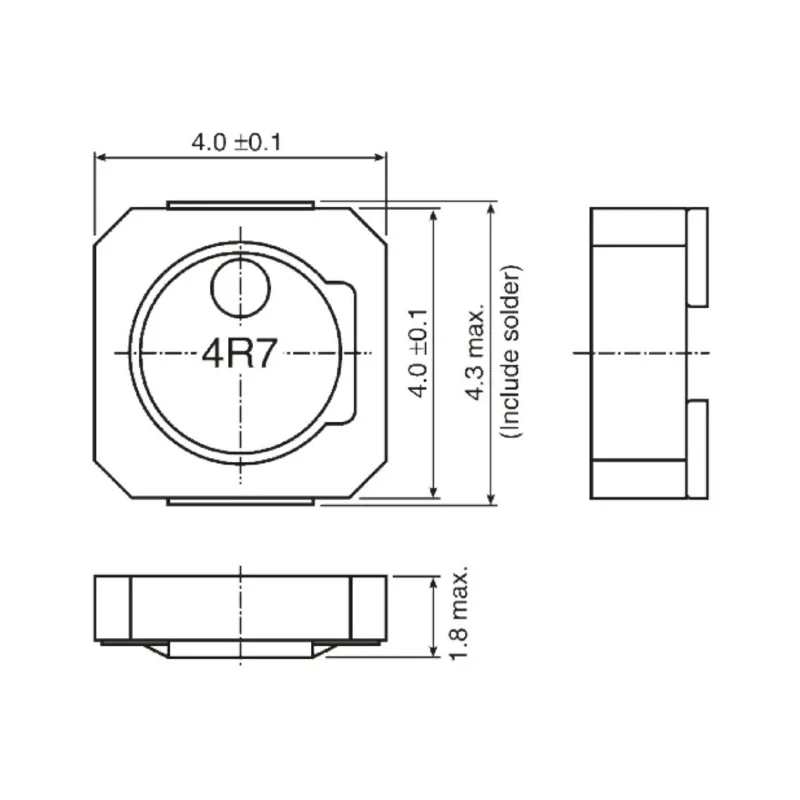

The inductor is housed in a compact 4018 package dimension, measuring 4.3 mm in length, 1.8 mm in height, and 4 mm in depth, offering easy integration into high-density PCB layouts. Its magnetic shielding minimizes electromagnetic interference, making it ideal for portable DC to DC converters and other sensitive electronic equipment. The surface mount termination style enables efficient automated assembly.

This TDK inductor operates within a broad temperature range from -40°C minimum to 105°C maximum, making it suitable for various industrial and commercial applications. Its core is molded and made from ferrite material, ensuring stable magnetic properties and durability. The maximum DC resistance is 188 mΩ, which helps maintain energy efficiency and reduces losses within the circuit.

The product complies with the RoHS Directive, confirming its environmental safety. It is supplied in Tape & Reel packaging, facilitating high-volume manufacturing with automated pick-and-place machines. Typical applications include power management in electronics, industrial controls, telecommunications, and automotive electronic systems.

TDK is recognized for its innovation and quality in electronic components, making this VLCF4018T-100MR74-2 series inductor an excellent choice for engineers looking for reliable and compact surface mount inductors.

High magnetic shield construction for minimized electromagnetic interference. Wirewound inductor construction enhances reliability and performance. Ferrite core material ensures efficient magnetic properties. Surface mount termination style suitable for automated PCB assembly.

Operates reliably between -40°C and 105°C temperature range. Compact 4018 package dimensions: 4.3 mm length, 1.8 mm height, and 4 mm depth. Inductance tolerance of ±20% to ±30% suitable for varied applications. Maximum DC resistance of 188 mΩ maintains low power loss.

Compliant with RoHS Directive for environmental safety standards. Packaging on Tape & Reel facilitates high-volume manufacturing processes. Explore more in the Electronics Components category at EnvMart for a broad range of surface mount Inductors from leading brands including TDK.
