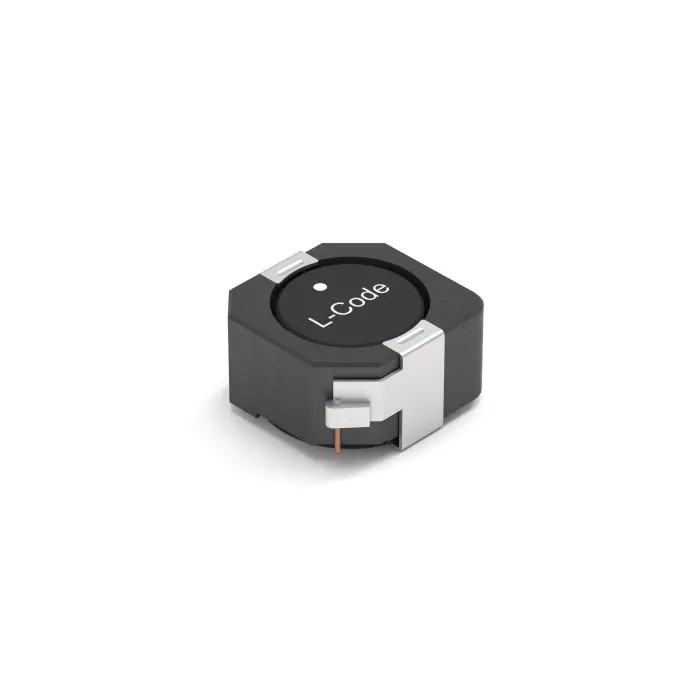

Wurth Elektronik Shielded Wirewound Surface Mount Inductor 22 μH ±20 % 2.9 A IDC 1245 WE-PD 7447715220
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.5mm |
| Length | 12mm |
| Depth | 12mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 22μH |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Package/Case | 1245 |
| Maximum DC Current | 2.9A |
| Maximum DC Resistance | 65mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 15.5MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Wirewound construction ensures high current capacity and stability.
- Magnetically shielded design reduces leakage magnetic fields.
- Compact 1245 package size with dimensions 12mm (length) x 4.5mm (height) x 12mm (depth).
- Suitable for surface mounting with tape and reel packaging.
- Operating temperature ranges from -40°C to 125°C for robust performance.
- Maximum DC resistance of 65 mΩ for efficiency.
- Maximum self-resonant frequency of 15.5 MHz supports high-frequency applications.
- Complies with Automotive Standard AEC-Q200 and IPC/JEDEC J-STD-020D standards.
Product Description
Wurth Elektronik 7447715220 is a high-quality shielded wirewound surface mount inductor from the WE-PD series, providing 22 μH inductance with a ±20 % tolerance and supporting a maximum DC current of 2.9 A. It comes in a compact 1245 package case, measuring 12mm in length, 4.5mm in height, and 12mm in depth, with tape and reel packaging suitable for automated assembly processes.
This magnetically shielded wirewound inductor is designed for applications demanding low magnetic leakage and high current handling capability. Its construction ensures stable inductance and efficient energy storage, optimized for switching regulators with high efficiency above 86%, integrated DC-DC converters, and graphic card power supplies.
The inductor operates reliably within a temperature range of -40°C to 125°C, and features a maximum DC resistance of 65 mΩ, reducing power losses. It also meets the automotive standard AEC-Q200 and IPC/JEDEC J-STD-020D for quality and reliability compliance.
Typical use cases include switching regulators with low operating voltages, high-efficiency power supply designs, and other industrial and electronic applications requiring robust inductors with shielding to minimize interference.
Key product features include magnetic shielding, wirewound construction, and surface mount termination style, making it suitable for surface mount technology PCB assembly in industrial, automotive, and commercial electronic manufacturing.
Wirewound construction ensures high current capacity and stability. Magnetically shielded design reduces leakage magnetic fields. Compact 1245 package size with dimensions 12mm (length) x 4.5mm (height) x 12mm (depth). Suitable for surface mounting with tape and reel packaging.
Operating temperature ranges from -40°C to 125°C for robust performance. Maximum DC resistance of 65 mΩ for efficiency. Maximum self-resonant frequency of 15.5 MHz supports high-frequency applications. Complies with Automotive Standard AEC-Q200 and IPC/JEDEC J-STD-020D standards.
Ideal for switching regulators, integrated DC-DC converters, and graphic cards. Explore more high-quality Inductors, capacitors, and electronic components at EnvMart for your industrial and commercial electronics needs.
