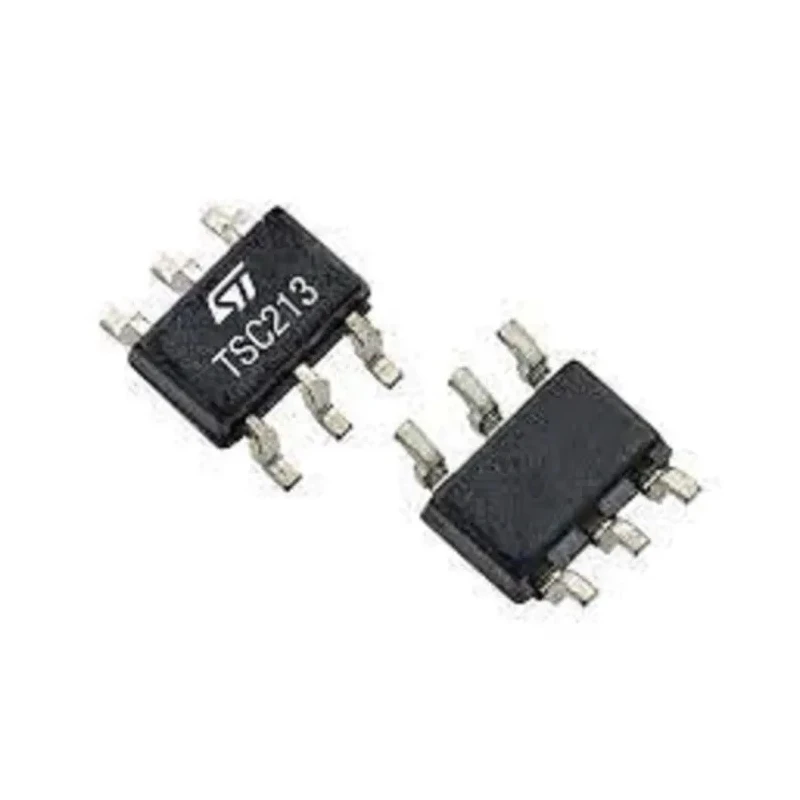

STMicroelectronics Current Sensing Amplifier Single 6-Pin SC-70-6 TSC213IYCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | TSC213IYCT |
| Mount Type | Surface |
| Series | TSC213 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70-6 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 5mA |
| GBP - Gain Bandwidth Product | 100kHz |
| CMRR - Common Mode Rejection Ratio | 105dB |
Key Features
- Operates on single power supply with voltage ranging from 2.7V to 26V.
- Common Mode Rejection Ratio (CMRR) of 105dB ensures accurate current sensing.
- Low quiescent supply current of 5mA providing energy efficiency.
- Compact surface mount package type SC-70-6 with a pin count of 6.
- Temperature operating range from -40°C up to 125°C suitable for automotive applications.
- Gain Bandwidth Product (GBP) of 100kHz suitable for telecom and industrial use cases.
- Series TSC213 built with zero-drift technology for high precision current monitoring.
- Conforms to automotive standard AEC-Q100 ensuring quality and reliability.
Product Description
STMicroelectronics TSC213IYCT is a high precision Current Sensing Amplifier designed for single power supply operation ranging from 2.7V to 26V. Featuring a zero-drift architecture, this 6-pin surface mount device in SC-70-6 package offers low offset drift of 0.1 μV/°C and gain drift of 20 ppm/°C, enabling precise current sensing through shunt resistors.
This current sensing amplifier operates effectively over a wide common mode voltage range from -0.3 V to +26 V and demonstrates a high Common Mode Rejection Ratio (CMRR) of 105 dB, making it suitable for demanding applications in telecom, automotive, and industrial sectors.
The TSC213IYCT's low quiescent current of 5 mA ensures energy-efficient performance, while its temperature rating from -40°C to +125°C meets automotive grade requirements, specifically the AEC-Q100 standard.
The device’s gain bandwidth product of 100 kHz supports fast response and stability in signal amplification. Its compact dimensions with a length of 2.2mm and height of 1.1mm facilitate integration into space-constrained PCBs and electronic assemblies.
Wide supply voltage range: 2.7V to 26V for flexible application use. High accuracy zero-drift amplifier architecture minimizes offset and gain errors. Low supply current enhances overall power efficiency in electronic circuits.
Surface mount SC-70-6 package with 6 pins suitable for compact design. Automotive compliance via AEC-Q100 certification guarantees durability and reliability. Gain bandwidth product of 100kHz enables precise drop detection across shunt resistors.
Operation temperature range covers tough industrial environments.
This Current Sensing Amplifier is ideally suited for industrial machines, automotive systems, telecom infrastructure, and manufacturing environments requiring precise current monitoring and control. Its broad voltage range and high common mode rejection make it well-suited for usage in power management and measurement circuits where accuracy and reliability are critical.
Explore more Current Sensing Amplifiers and advanced semiconductor products to optimize your electronic design projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This current sensing amplifier operates on a single power supply with a voltage range from 2.7V to 26V.
The TSC213IYCT features a Common Mode Rejection Ratio (CMRR) of 105 dB, ensuring accurate current sensing.
It operates effectively within a temperature range of -40°C to 125°C, making it suitable for automotive applications.
The gain bandwidth product (GBP) of the TSC213IYCT is 100 kHz, which supports fast response and stability in signal amplification.
This model features a pin count of 6 and comes in a compact SC-70-6 surface mount package.
The quiescent supply current for this amplifier is 5 mA, contributing to its energy-efficient performance.
It conforms to the AEC-Q100 automotive standard, ensuring quality and reliability for automotive applications.
This current sensing amplifier is designed for surface mounting, facilitating integration into compact electronic assemblies.
The dimensions of this model are 1.1 mm in height and 2.2 mm in length, making it suitable for space-constrained designs.
This current sensing amplifier has a single channel configuration, allowing for precise current monitoring.
It has a low offset drift of 0.1 μV/°C, enabling high precision in current sensing applications.
This model is ideally suited for industrial machines, automotive systems, telecom infrastructure, and manufacturing environments requiring precise current monitoring.
