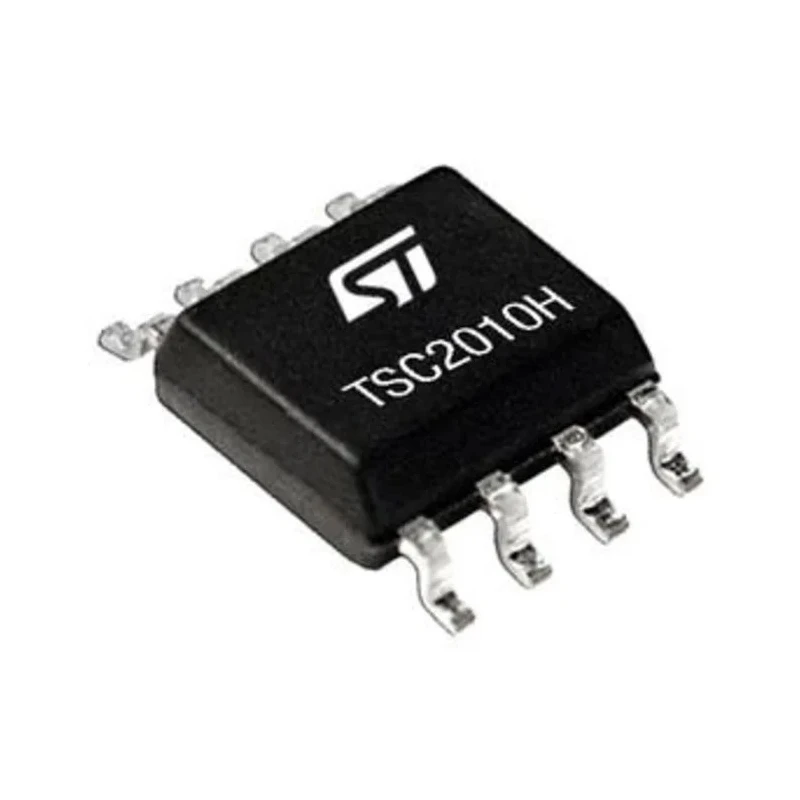

STMicroelectronics Current Sensing Amplifier Single 8-Pin SO-8 2.7V-5.5V Supply TSC2010HYDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TSC2010HYDT |
| Mount Type | Surface |
| Series | TSC2010 |
| Maximum Operating Temperature | 150°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 5mA |
| GBP - Gain Bandwidth Product | 820kHz |
| CMRR - Common Mode Rejection Ratio | 80dB |
Key Features
- The device features a wide common mode voltage range from -20V to +70V ensuring application versatility.
- It detects low drop voltages as low as 10 mV full scale minimizing measurement error.
- Offset voltage is tightly controlled at ±200 μV maximum for precision sensing.
- Supplies low supply current of 5 mA for efficient operation.
- Operating temperature range from -40°C to 150°C accommodates harsh environments.
- Gain Bandwidth Product (GBP) is 820 kHz supporting fast response signals.
- Complies with automotive standard AEC-Q100 guaranteeing reliability for automotive applications.
- Package form factor is compact surface mount SO-8 with 8 pins for easy PCB integration.
Product Description
STMicroelectronics TSC2010HYDT is a precision bidirectional current sensing amplifier designed to measure current through a shunt resistor over a wide common mode voltage range of -20V to +70V. This versatile amplifier operates with supply voltages from 2.7V up to 5.5V and consumes a low 5 mA supply current, making it suitable for power-sensitive applications. The device offers excellent accuracy with offset voltage limited to ±200 μV max and gain error of 0.3% max, ensuring precise current measurement even at low drop voltages down to 10 mV full scale, which minimizes overall measurement error.
Featuring a Gain Bandwidth Product of 820 kHz, it supports rapid measurement responses required in dynamic current monitoring scenarios. The amplifier comes in a compact surface-mount SO-8 package with an 8-pin configuration facilitating straightforward PCB assembly. Designed to operate reliably over a broad temperature range from -40°C to 150°C, the TSC2010HYDT is also certified to the automotive AEC-Q100 standard, making it suitable for automotive and industrial environments demanding high reliability.
This component is ideally used in industrial control systems, automotive motor controllers, battery monitoring, power supplies, and instrumentation circuits requiring precise current sensing. The device enables enhanced energy efficiency and safety diagnostics by providing precise current feedback for system monitoring and control.
The device features a wide common mode voltage range from -20V to +70V ensuring application versatility. It detects low drop voltages as low as 10 mV full scale minimizing measurement error. Offset voltage is tightly controlled at ±200 μV maximum for precision sensing.
Supplies low supply current of 5 mA for efficient operation. Operating temperature range from -40°C to 150°C accommodates harsh environments. Gain Bandwidth Product (GBP) is 820 kHz supporting fast response signals. Complies with automotive standard AEC-Q100 guaranteeing reliability for automotive applications.
Package form factor is compact surface mount SO-8 with 8 pins for easy PCB integration. Ideal for industrial, automotive, and power electronics current sensing applications.
Explore more electronic components like Current Sensing Amplifiers and semiconductors in the Electronics & Electricals category on EnvMart for high quality and reliable products suited to industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with supply voltages ranging from 2.7V to 5.5V.
It features a wide common mode voltage range from -20V to +70V, allowing for versatile applications.
The maximum operating temperature for this unit is 150°C.
It supplies a low current of 5 mA for efficient operation.
The Gain Bandwidth Product (GBP) is 820 kHz, supporting fast response signals.
The offset voltage is tightly controlled at ±200 μV maximum, ensuring precision sensing.
This component comes in a compact surface mount SO-8 package with 8 pins.
It complies with the automotive standard AEC-Q100, guaranteeing reliability for automotive applications.
The minimum operating temperature is -40°C, accommodating harsh environments.
This model features a single channel for current sensing applications.
The Common Mode Rejection Ratio (CMRR) is 80dB, enhancing measurement accuracy.
It is suitable for applications such as industrial control systems, automotive motor controllers, and battery monitoring.
