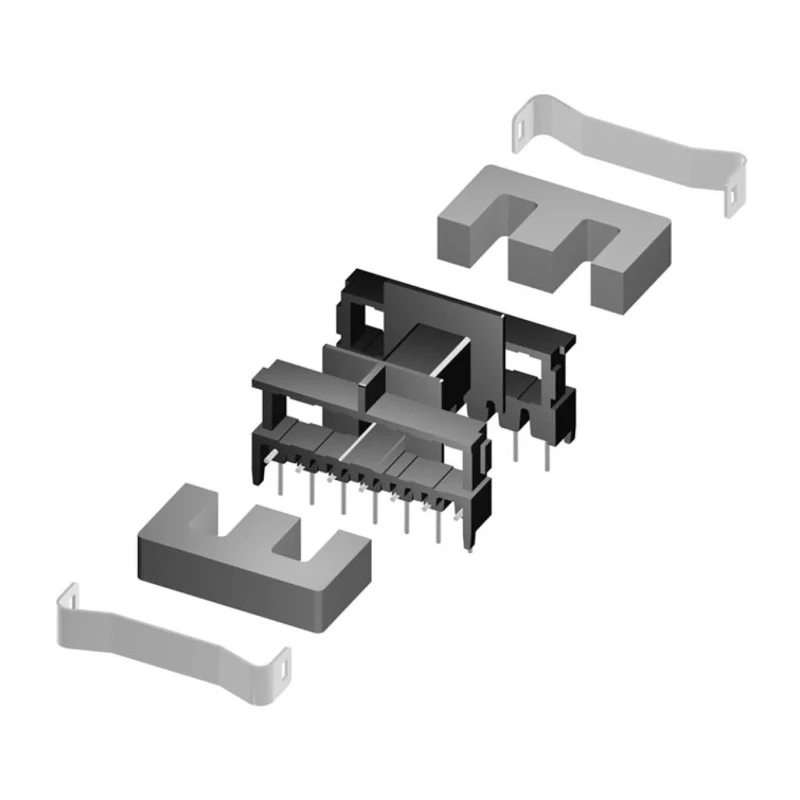

TDK Transformer Ferrite Core E 20/10/6, N87 Material, AL Rating 171nH, Max Temp 155°C B66311G0250X187

TDK B66311G0250X187 Transformer Ferrite Core E 20/10/6 is engineered specifically for power transformer applications, providing efficient magnetic performance with its high-quality N87 ferrite material.

This ferrite core features a rectangular centre leg with compact mounting dimensions, measuring 20.4mm in length, 10.1mm in depth, and 5.9mm in width, allowing versatility in transformer design.

The N87 material utilized in this core provides a high saturation flux density combined with low power loss, making it ideal for power applications within a frequency range of up to 100 kHz.

The core has an AL rating of 171nH, supporting precise inductance characteristics necessary for proper transformer operation.

It complies with IEC 61246 standards, ensuring high-quality manufacturing and reliability under typical operating conditions. The maximum operating temperature is rated at 155°C, suitable for demanding thermal environments.

Manufactured in India by TDK, this core is suitable for industrial, electronic component manufacturing, power supply design, and HVAC transformer assemblies. The core has compact mounting dimensions for easy integration into power transformers.

Made from N87 ferrite material, offering excellent magnetic properties and low loss. AL rating of 171nH supports accurate inductance essential for transformer efficiency. Maximum operating temperature of 155°C ensures durability under thermal stress.

Complies with IEC 61246 for industrial standards. Ideal for power transformers operating up to 100 kHz in frequency. For high-performance transformer design requiring reliable ferrite cores, browse our extensive electronics components category at EnvMart.
