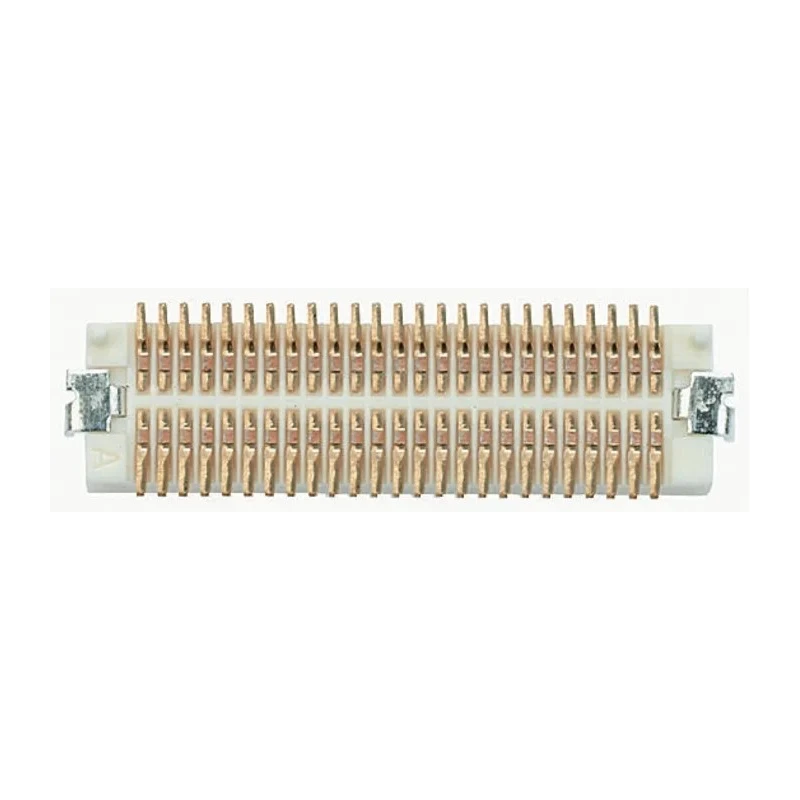

Hirose DF12 Series Straight Surface PCB Socket 30-Contact 2 Row 0.5mm Pitch Solder

Hirose DF12(3.0)-30DS-0.5V(86) PCB Socket is a high-performance, straight surface mount board-to-board connector with 30 female contacts arranged in two rows at a 0.5 mm pitch. The connector's polyamide housing provides excellent mechanical stability and UL94V-0 flame resistance. Gold-plated copper contacts ensure low contact resistance and excellent corrosion protection, supporting a maximum current of 300 mA and voltage rating of 50 V.

This connector supports a stacking height of 3 mm, making it suitable for compact electronic device assemblies. Operating reliably between -55°C and 125°C, it is designed for harsh industrial, telecommunications, consumer electronics, and medical instrumentation environments.

The DF12 series offers board-to-board interconnection with precise mating at a fine pitch, suitable for ultra-miniature applications where PCB space optimization is critical. The surface mount termination type enhances automated assembly processes.

Additional features include retention hardware and location posts available to aid soldering and mechanical stability of the mating connector pair. The connector's design includes board guide bosses and metal fittings for secure solder retention, improving manufacturing yields and product lifecycle.

This PCB socket features 30 contacts arranged in 2 rows for compact connections. The 0.5 mm pitch allows ultra-miniature, precise mating with headers. Gold plated copper contacts ensure reliable electrical conductivity. The polyamide housing material offers UL94V-0 flammability rating for safety.

Designed for surface mount technology (SMT) with straight orientation. Operating temperature range spans from -55°C to 125°C for versatile use. Supports a current rating of 300 mA and voltage of 50 V. The connector has a stacking height of 3 mm suitable for compact assemblies.

Ideal for board-to-board applications requiring a durable and precise connection.

This Hirose DF12 PCB socket is widely used in electronics manufacturing, industrial control systems, consumer device assembly, telecommunications equipment, and laboratory instrumentation requiring precise, compact PCB interconnections. Its robust design ensures longevity and reliable operation under varied environmental conditions.
