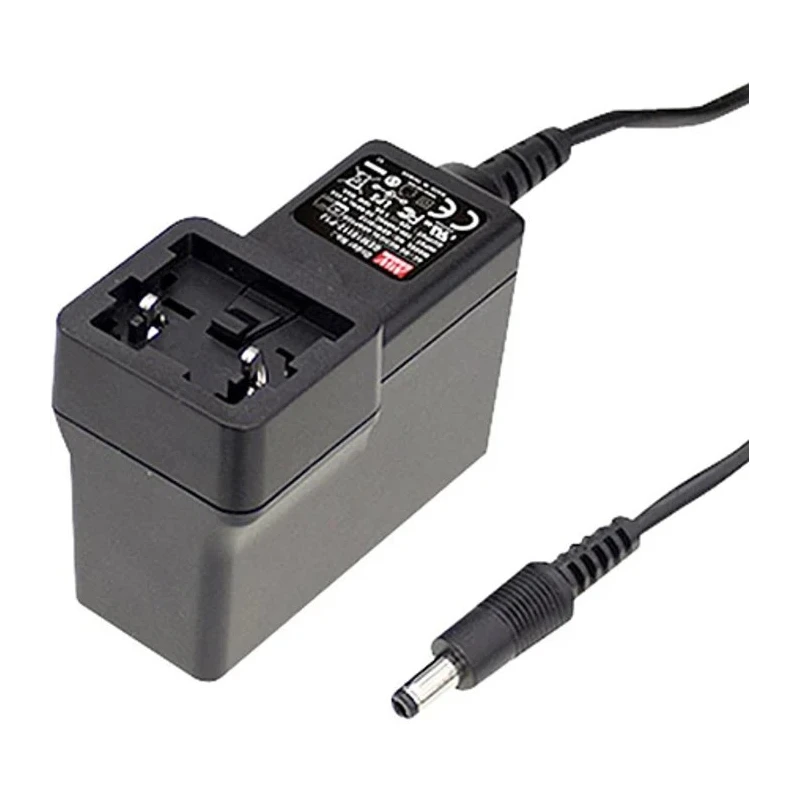

MEAN WELL AC/DC Adapter Type C 264V AC Input Output 750 mA 24 V DC GEM18I24-P1J

MEAN WELL GEM18I24-P1J is an AC/DC adapter designed for medical applications requiring reliable, compact, and safe power supplies. Compatible with Type C EU plugs, it accepts a wide input range of 100V to 264V AC and delivers a steady output current of 750 mA at 24 V DC suitable for diverse portable medical equipment.

Its compact dimensions (39.1mm x 75.5mm x 56.2mm) combined with a 1.5 meter cable facilitate flexible deployment and transport. The unit is housed in a fully enclosed plastic casing with flame retardant 94V-0 rating to ensure electrical safety and user protection.

The adapter meets stringent medical safety standards including ANSI/AAMI ES60601-1 and TÜV EN60601-1, alongside EMC compliance for emissions and immunity, making it suitable for critical healthcare environments.

Features such as short circuit, overload, and over voltage protection reinforce its reliability and longevity. The low leakage current feature makes it safe for sensitive medical devices. Compliance with Level VI energy efficiency and a standby power consumption below 0.1 W demonstrate the adapter's energy-saving characteristics.

The interchangeable AC plug compatibility provides versatility across regions through separate accessory plugs for UK, US, and Australian sockets. This makes the GEM series a universal solution for medical device power needs worldwide.

This power supply is ideal for applications like blood glucose meters, blood pressure monitors, inhalers, nebulisers, and sleep apnea devices, providing consistent power with safety and regulatory compliance.

The adapter features a Type C EU plug with a 1.5 meter cable length for flexible installation. It supports a wide input voltage range from 100V AC to 264V AC, suitable for global use. Operating temperature range up to 50°C ensures reliability in demanding environments.

Compact dimensions with overall length 39.1mm, width 75.5mm, and depth 56.2mm allow easy transport and installation. Compliance with IEC 60950-1, UL 60950-1, CE and medical safety standards ANSI/AAMI ES60601-1 ensures safety and regulatory conformity.

Low leakage current below 100 μA and level VI energy efficiency minimize power consumption. The unit includes protections for short circuit, overload, and over voltage, enhancing operational safety. It is a Class II power supply with fully enclosed 94V-0 flame retardant plastic casing, designed for medical devices.

Interchangeable AC plugs (sold separately) make the adapter versatile for different regional sockets. Ideal for powering portable medical devices including blood glucose meters, nebulisers, and sleep apnea devices. Explore EnvMart for a wide range of power supplies and adapters tailored for industrial, medical, and commercial applications.
