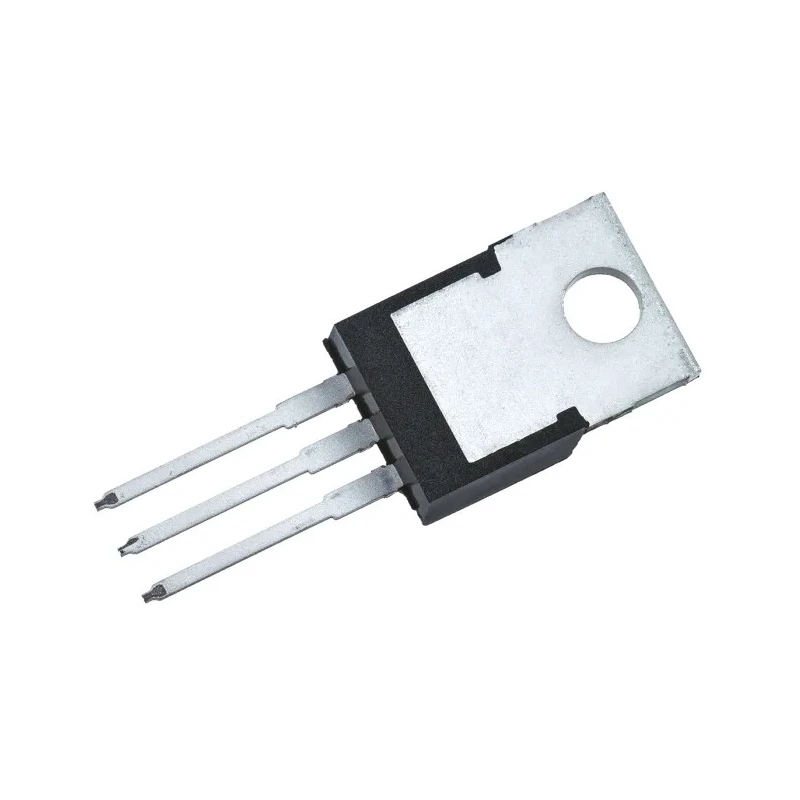

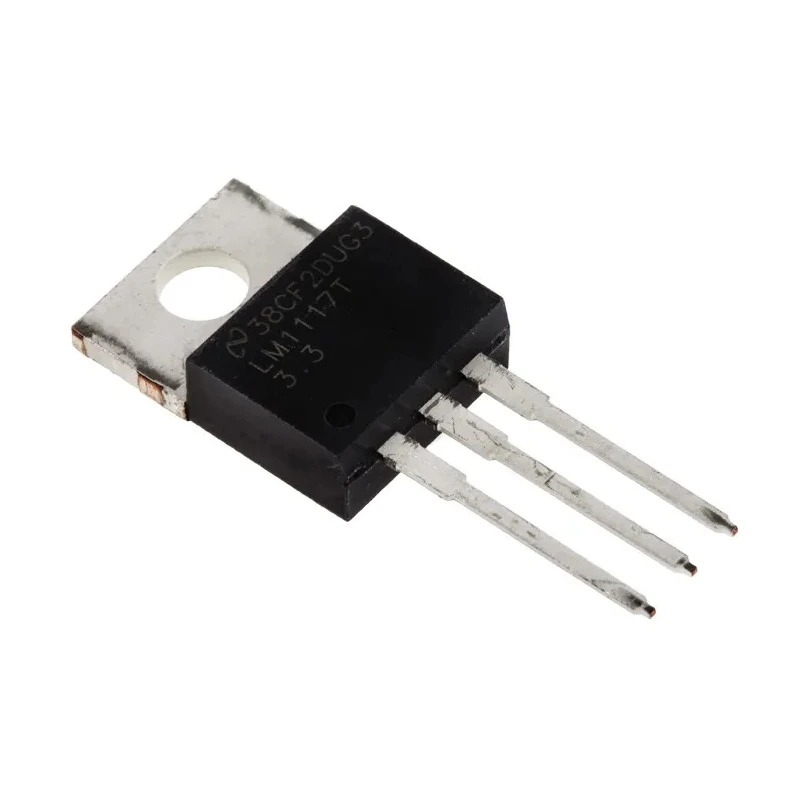

Texas Instruments Voltage Regulator TO-220 3-Pin 15V Maximum Input Voltage LM1117T-3.3/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments, Voltage Regulator 15V TO-220 3-Pin RS Stock No |
| Brand | Texas Instruments |
| Height | 8.89mm |
| Length | 10.16mm |
| Model | LM1117T-3.3/NOPB |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | LM1117 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 15V |
| Quiescent Current | 5mA |
| Pin Count | 3 |
Key Features
- Maximum input voltage rating of 15V suitable for low dropout voltage regulation.
- Features a quiescent current of 5mA to ensure efficient power usage.
- Packaged in a TO-220 through-hole mount type for easy PCB integration.
- Designed to operate up to a maximum temperature of 125°C for reliable performance.
- Suitable for industrial, electronics component, and power management IC applications.
- 3-pin configuration supports straightforward circuit design and implementation.
- Provides positive polarity voltage regulation with high precision and stability.
Product Description
Texas Instruments LM1117T-3.3/NOPB is a low dropout (LDO) linear voltage regulator packaged in a TO-220 3-pin design, ideal for applications requiring precise voltage regulation with a maximum input voltage of 15V. This regulator is designed for positive polarity and provides reliable power management with a low quiescent current of 5mA, enhancing overall energy efficiency.
The device's compact form factor measures 10.16mm in length, 8.89mm in height, and 4.7mm in width, with a robust TO-220 package suitable for through-hole mounting. It supports operation up to 125°C, making it suitable for a wide range of electronics and industrial circuits exposed to varying thermal conditions.
Texas Instruments’ LM1117 series of LDO voltage regulators provide low dropout voltage levels, reduced output noise, and excellent line voltage regulation with high power supply rejection ratio (PSRR). This makes it a preferred choice for power management IC applications requiring stable voltage supply with minimized noise interference.
This voltage regulator supports diverse industrial and electronic component applications including communications, instrumentation, and embedded systems where precise power regulation is critical.
Maximum input voltage of 15V ensures wide compatibility with varying power sources. Low quiescent current of 5mA helps reduce power loss and thermal dissipation. TO-220 package facilitates easy mounting and heat dissipation.
Compact and reliable 3-pin configuration simplifies circuit design. High maximum operating temperature rating of 125°C for durability. Positive polarity operation for standard voltage regulation needs. Excellent stability and low noise operation enhances system performance.
Widely used in industrial, laboratory, and consumer electronics for power management. Explore the broad selection of Texas Instruments Voltage Regulators and power management ICs at EnvMart for reliable and high-performance electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the LM1117T-3.3/NOPB is 15V.
This voltage regulator has a quiescent current of 5mA, which helps ensure efficient power usage.
It is designed to operate up to a maximum temperature of 125°C.
The LM1117T-3.3/NOPB is packaged in a TO-220 type, suitable for through-hole mounting.
This model measures 10.16mm in length, 8.89mm in height, and 4.7mm in width.
It features a 3-pin configuration, which simplifies circuit design and implementation.
This voltage regulator is suitable for industrial, electronics component, and power management IC applications.
It provides positive polarity voltage regulation.
It offers excellent line voltage regulation with a high power supply rejection ratio (PSRR), minimizing output noise.
This model is part of the LM1117 series of low dropout (LDO) voltage regulators.
Low dropout voltage levels ensure that the regulator can maintain output voltage even when the input voltage is close to the output voltage, enhancing efficiency.
The LM1117T-3.3/NOPB is manufactured in India.
