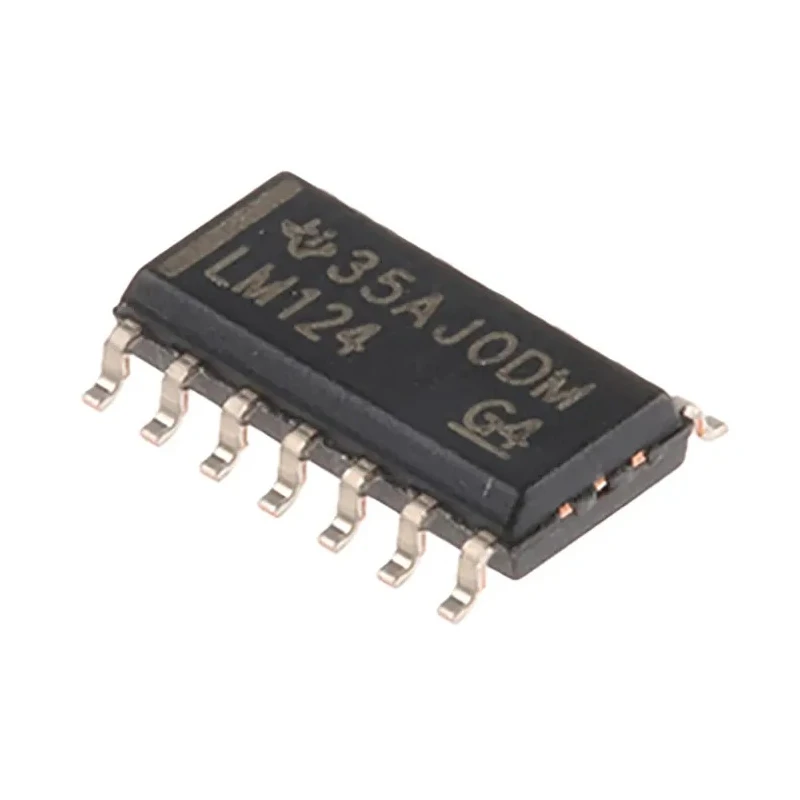

Texas Instruments Operational Amplifier 1.2 MHz Gain Bandwidth, 14-Pin SOIC 4-Channel Surface Mount LM124DR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | LM124DR |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LM124 |
| Output Current | -10mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | -300 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 100 nA |
Key Features
- Features a maximum supply voltage of 30V suitable for various electronic applications.
- Input offset voltage is low at 7 mV for precision signal amplification.
- Operates over a wide temperature range from -55°C to 125°C.
- Gain bandwidth product of 1.2 MHz supports medium frequency applications.
- Compact dimensions of 8.65mm length and 3.91mm width fit on small PCBs.
- Compliant with RoHS standards ensuring environmental safety.
- Low input bias current of -300 nA minimizes signal distortion.
- Includes four operational amplifier channels in one package for multifunctional circuit designs.
Product Description
Texas Instruments LM124DR is a general purpose operational amplifier featuring four channels integrated in a compact 14-pin SOIC surface mount package. It provides a gain bandwidth product (GBP) of 1.2 MHz, a maximum supply voltage of 30V, and operates reliably across the temperature range -55°C to 125°C. This amplifier is suitable for a wide range of industrial, laboratory, and electronic circuit applications requiring moderate frequency signal processing.
The device has low input offset voltage of 7 mV and input bias current of -300 nA which contribute to its accuracy in signal amplification. It also has a balanced slew rate of 0.5 V/μs, providing responsive yet stable output signals. The compact form factor with dimensions 8.65mm by 3.91mm facilitates space-saving PCB design with surface mount technology.
This part conforms to RoHS standards, ensuring compliance with environmental regulations by minimizing hazardous substances. Its four operational amplifiers in a single device enable multifunctional circuit designs, reducing component count and saving board space. The LM124DR’s specifications meet typical performance demands in analog signal conditioning, filtering, and voltage amplification tasks in industrial, laboratory, and consumer electronics environments.
Maximum supply voltage of 30V allows flexibility in power supply configurations. Operational temperature range from -55°C to 125°C ensures robust performance under harsh conditions. Input offset current at 100 nA further improves precision by reducing error currents.
Compact height of 1.58 mm suits low-profile mounting requirements. Output current capability includes -10 mA ensuring sufficient drive strength.
For professionals designing electronic assemblies requiring reliable Operational Amplifiers with moderate bandwidth and low power consumption, the LM124DR series by Texas Instruments is a cost-effective choice. Explore more amplifiers and semiconductor devices in the Electronics & Electricals category on EnvMart for comprehensive sourcing options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the LM124DR is 30V, allowing flexibility in power supply configurations.
This model operates over a wide temperature range from -55°C to 125°C, ensuring robust performance in various conditions.
The LM124DR features four operational amplifier channels integrated into a single package, enabling multifunctional circuit designs.
The dimensions of the LM124DR are 8.65 mm in length, 3.91 mm in width, and it has a height of 1.58 mm, making it suitable for compact PCB designs.
The input offset voltage of the LM124DR is low at 7 mV, contributing to its precision in signal amplification.
The input bias current for this model is -300 nA, which helps minimize signal distortion.
The output current capability of the LM124DR is -10 mA, providing sufficient drive strength for various applications.
Yes, the LM124DR is compliant with RoHS standards, ensuring it minimizes hazardous substances in its construction.
The slew rate of the LM124DR is 0.5 V/μs, which provides responsive yet stable output signals.
The LM124DR comes in a 14-pin SOIC surface mount package, suitable for surface mount technology applications.
The LM124DR is suitable for a wide range of industrial, laboratory, and electronic circuit applications requiring moderate frequency signal processing.
