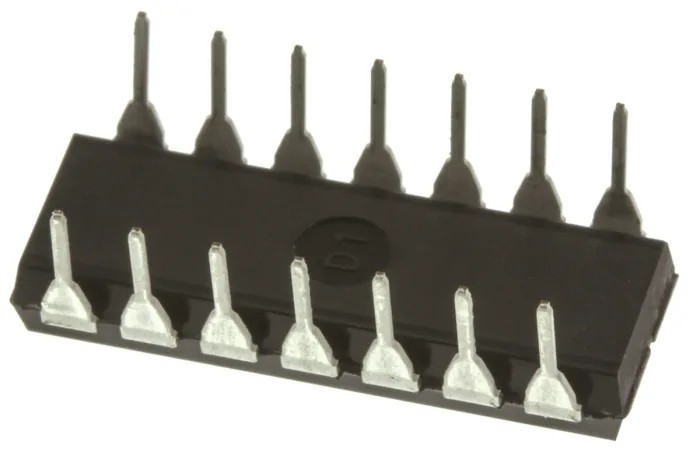

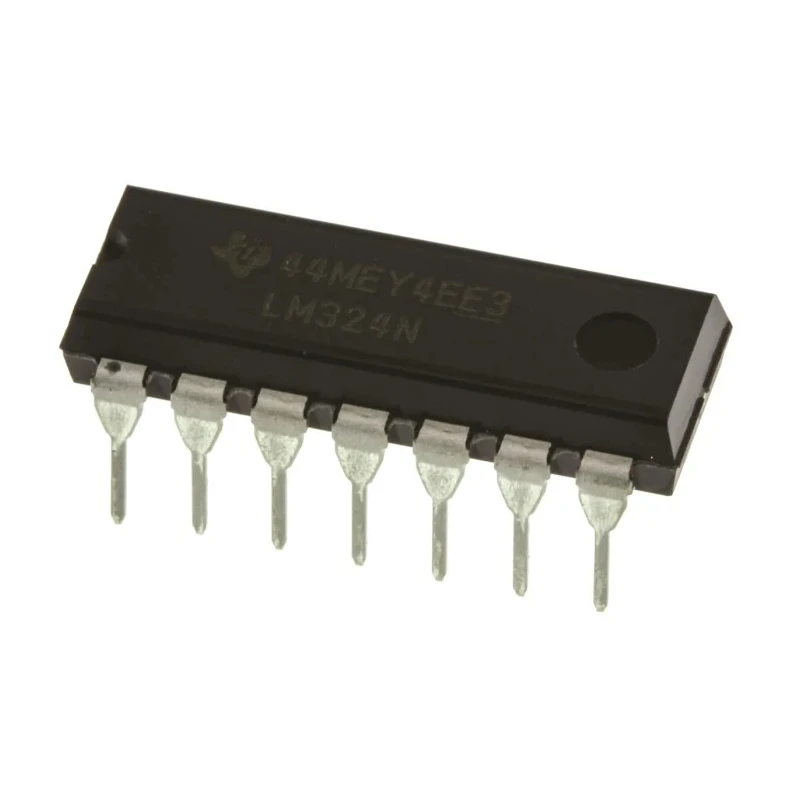

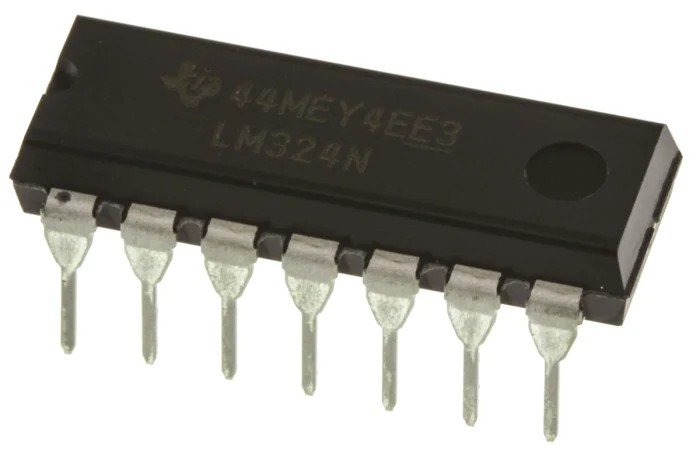

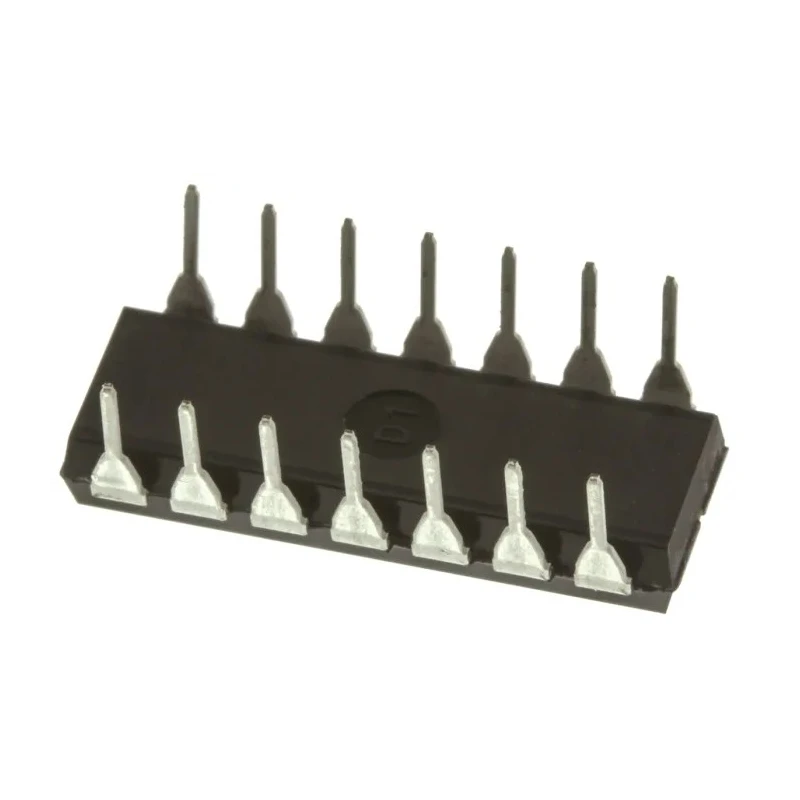

Texas Instruments Operational Amplifier 1.2 MHz 14-Pin 30V PDIP LM324N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | LM324N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LM324 |
| Output Current | -10mA |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | -500 nA |
| Vos - Input Offset Voltage | 9 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 150 nA |
Key Features
- Single supply operation with a voltage range from 5V to 30V.
- Contains 4 independent operational amplifier channels.
- Designed with a low input bias current of -500 nA.
- Features an input offset voltage of 9 mV and an input offset current of 150 nA.
- Slew rate of 0.5 V/μs and a maximum operating temperature of 70°C.
- Compliant with RoHS standards, ensuring environmental safety.
- General purpose amplifier well-suited for various electronic applications.
Product Description
Texas Instruments LM324N is a general-purpose operational amplifier with a gain bandwidth product of 1.2 MHz, housed in a 14-pin PDIP package capable of operating up to 30V. It provides four independent amplifier channels suitable for a wide range of electronic circuits and applications.
This low-power device operates on a single supply voltage as low as 5V and up to a maximum of 30V, making it flexible for various power conditions. It features low input bias current (-500 nA) and input offset voltage of 9 mV, ensuring precise signal amplification with minimal drift.
The amplifier supports a slew rate of 0.5 V/μs and can function reliably in ambient temperatures from 0°C to 70°C. The product complies with RoHS environmental standards, emphasizing sustainability in electronics manufacturing.
Its physical dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height facilitate easy integration into through-hole PCB designs. The LM324 series is recognized for its reliability and versatility across industrial, laboratory, and educational electronics setups.
Applications include signal conditioning, sensor interfacing, audio amplification, and control systems in embedded electronics projects. The LM324N offers cost-effective performance suited for non-specialized operational amplifier requirements.
Single supply voltage operation from 5V to 30V. Four independent op-amp channels integrated in one package. Low input bias current and offset voltage for precision amplification. Slew rate of 0.5 V/μs suitable for moderate frequency signals.
Compliant with RoHS for environmental safety. Compact 14-pin PDIP through-hole package for easy mounting. Operational across 0°C to 70°C temperature range. Ideal for use in electronics prototyping, industrial, and laboratory applications.
Explore additional Operational Amplifiers and related semiconductor components at EnvMart for your electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.2 MHz.
It operates on a single supply voltage ranging from 5V to 30V.
This operational amplifier contains four independent amplifier channels.
The maximum operating temperature is 70°C.
The dimensions are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
The input bias current is -500 nA.
The slew rate is 0.5 V/μs.
The input offset voltage is 9 mV.
It is housed in a 14-pin PDIP package.
Yes, it is compliant with RoHS standards.
The minimum operating temperature is 0°C.
It is suitable for applications such as signal conditioning, sensor interfacing, audio amplification, and control systems.
