TDK Surface Mount Common Mode Line Filter with Ferrite Core, 400 mA Idc, 2012 Case ACM2012

Free Delivery in India | Lowest Global Shipping Charges

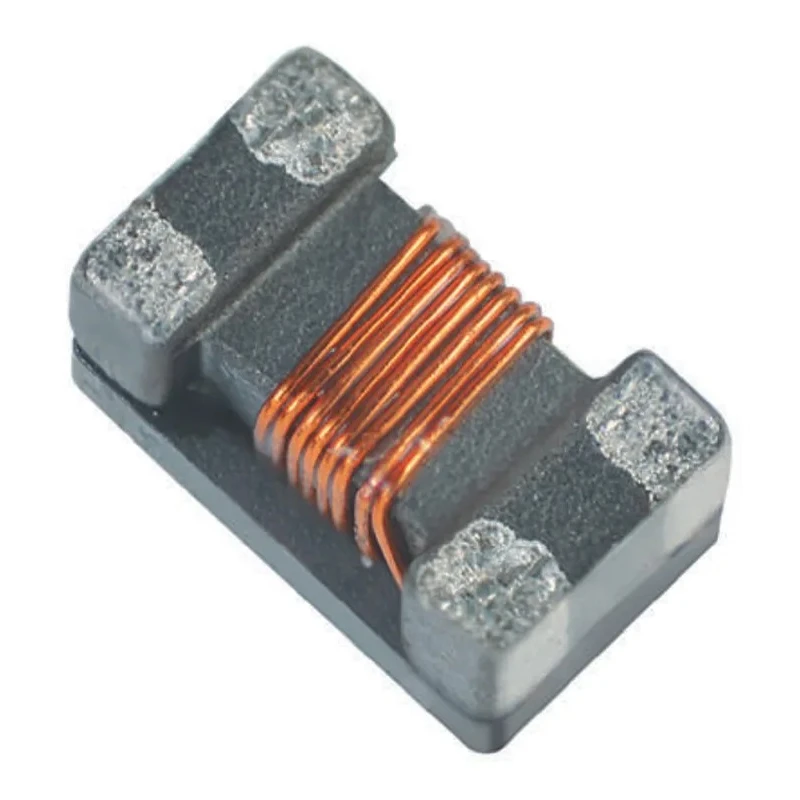

TDK Surface Mount Common Mode Line Filter with Ferrite Core, 400 mA Idc, 2012 Case ACM2012



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	Japan
Brand	TDK
Height	1.3mm
Length	2mm
Model	ACM2012
Depth	1.2mm
Series	ACM2012
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Interfaces	USB and IEEE1394 computer lines, LVDS panel link lines
Core Material	Ferrite
Standards/Approvals	RoHS Directive
Package/Case	2012
Maximum DC Current	400mA
Pin Count	4
Maximum DC Resistance	190mΩ
Termination Style	Surface Mount
Inductor Construction	Wirewound

Key Features

Miniature surface mount design suitable for high-density PCBs.
Ferrite core ensures effective common-mode noise suppression.
Maximum DC resistance of 190 mΩ minimizing signal loss.
Wide operating temperature range from -40°C to 85°C for reliable performance.
Wirewound inductor construction for durability and stable operation.
4-pin configuration designed for easy PCB integration.
Complies with RoHS Directive environmental standards.
Designed to support interfaces such as USB, IEEE1394 computer lines, and LVDS panel link lines.

Product Description

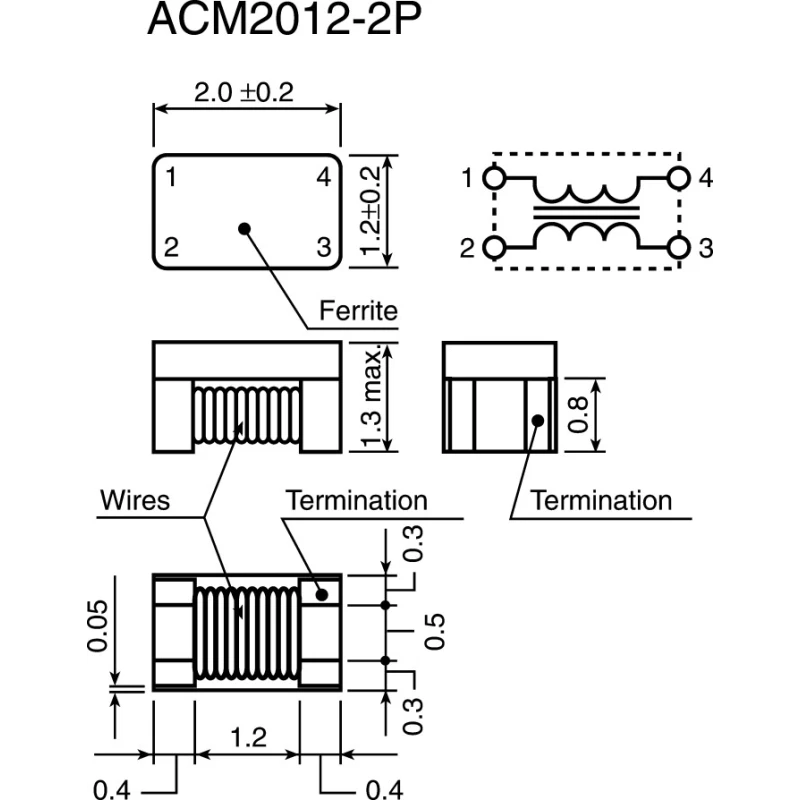

TDK ACM2012 Surface Mount Common Mode Line Filter features a compact 2012 package size with a 2 mm length, 1.3 mm height, and 1.2 mm depth, designed specifically for PCB surface mounting in industrial and electronic applications.

This filter employs a ferrite core and wirewound inductor construction, providing excellent common-mode impedance greater than 1000 Ω at 100 MHz, ensuring effective suppression of common-mode noise affecting sensitive signals.

It is rated for a maximum DC current of 400 mA with a low maximum DC resistance of 190 mΩ, making it ideal for high-speed digital circuits where signal integrity is critical. With an operating temperature range from -40°C up to 85°C, the ACM2012 series is suitable for use in harsh industrial, automotive, and commercial environments.

The component is designed for two-line and three-line configurations, supporting interfaces such as USB and IEEE1394 computer lines, and LVDS panel link lines. Its low differential mode impedance minimizes impact on high-speed signals.

This common mode choke complies with the RoHS Directive, promoting environmentally friendly electronics manufacturing. Miniature SMD common-mode wire wound chip filters provide reliable noise suppression. Common-mode impedance exceeds 1000Ω at 100MHz frequency.

Low differential mode impedance ensures signal fidelity with minimal interference. Operating temperature range from -40°C to 85°C supports diverse environments. Applications include radiation suppression on USB, IEEE1394, and LVDS lines.

Compact 2012 package size facilitates high-density PCB layouts. Ferrite core material enhances electromagnetic interference filtering. Manufactured in Japan, assures quality and reliability. This filter is suitable for use in electronic, industrial, and communication equipment applications requiring robust EMI noise suppression within compact PCB footprints.
