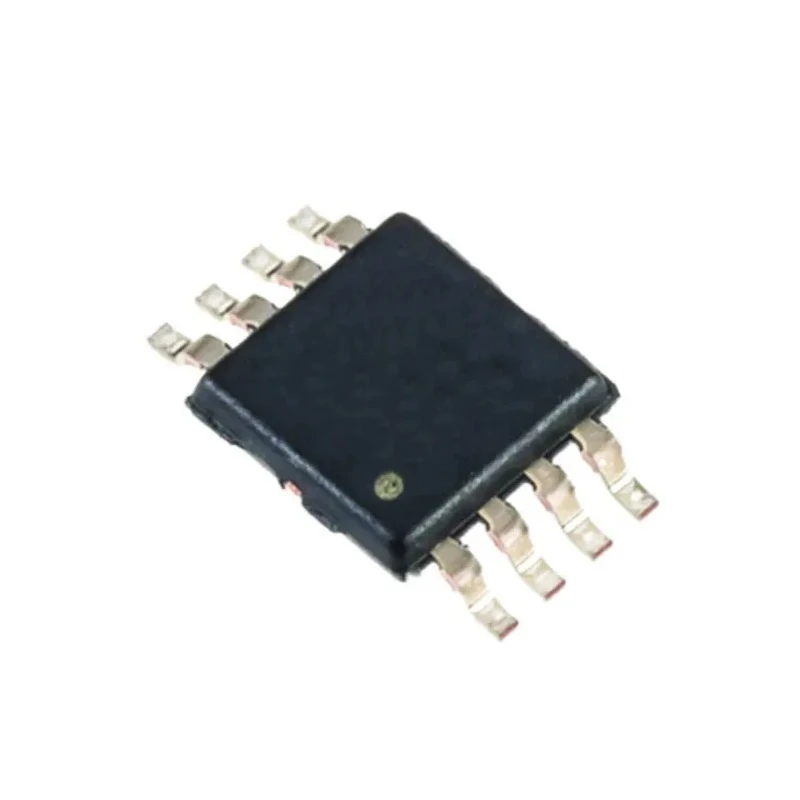

Texas Instruments Analogue Switch Dual SPST CMOS 8-Pin VSSOP TS5A23166DCUR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 850μm |
| Length | 2.3mm |
| Model | TS5A23166DCUR |
| Width | 2mm |
| Mount Type | Surface |
| Output type | CMOS |
| Configuration | Dual SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | VSSOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 1.65V |
| Maximum On State Resistance | 1.2Ω |
Key Features
- Operates with supply voltages from 1.65V to 5.5V.
- Features a maximum on-state resistance of 1.2 ohms ensuring low signal distortion.
- Supports a wide operating temperature range from -40°C to 85°C.
- Compact 8-pin VSSOP surface-mount package with dimensions 2.3mm length, 2mm width, and 850μm height.
- Contains two independent SPST switches for efficient signal multiplexing.
- Designed with CMOS logic family for high reliability and low power consumption.
- RoHS compliant, suitable for environmentally conscious design.
- Ideal for industrial, instrumentation, communication, and consumer electronics signal routing.
Product Description
Texas Instruments TS5A23166DCUR analogue switch is a dual SPST CMOS device designed for efficient analogue signal routing and switching with excellent electrical performance. It comes in a compact 8-pin VSSOP surface-mount package, making it suitable for dense PCB layouts.
Operating over a wide voltage range of 1.65V to 5.5V and with a low maximum on-state resistance of 1.2Ω, the switch ensures minimal signal loss and distortion, critical for high fidelity applications.
The device supports industrial temperature ranges (-40°C to 85°C) ensuring reliable performance in harsh environments. Its CMOS logic family allows low quiescent current, further aiding power-sensitive applications.
This analogue switch is RoHS compliant, supporting environmentally friendly manufacturing processes. The dual SPST configuration allows two independent signal paths to be controlled with a single device.
Typical applications include industrial controls, communications equipment, instrumentation, medical devices, and consumer electronics where precision signal routing is required. Operates with supply voltages from 1.65V to 5.5V.
Maximum on-state resistance of 1.2 ohms ensures signal integrity. Wide operating temperature (-40°C to 85°C) for industrial use. Compact 8-pin VSSOP surface-mount package. Dual SPST configuration provides two independent switches.
CMOS logic for low power operation. RoHS compliant for environmental safety. Ideal for industrial, communication, instrumentation, and medical electronics. Enables compact design with surface-mount packaging. Explore the extensive Texas Instruments range on EnvMart for reliable semiconductor components enhancing your electronic projects and industrial systems.
Explore more products in our Power Switch IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with supply voltages ranging from 1.65V to 5.5V.
The maximum on-state resistance is 1.2 ohms, ensuring low signal distortion.
It supports a wide operating temperature range from -40°C to 85°C.
It comes in a compact 8-pin VSSOP surface-mount package.
This model contains two independent SPST switches.
It is designed with a CMOS logic family for high reliability and low power consumption.
Yes, the TS5A23166DCUR is RoHS compliant, suitable for environmentally conscious design.
The dimensions are 2.3mm in length, 2mm in width, and 850μm in height.
It is ideal for applications in industrial controls, communication equipment, instrumentation, and consumer electronics.
The TS5A23166DCUR has a pin count of 8.
The maximum operating temperature is 85°C, suitable for industrial applications.
It provides a CMOS output type, which is beneficial for low power operation.
