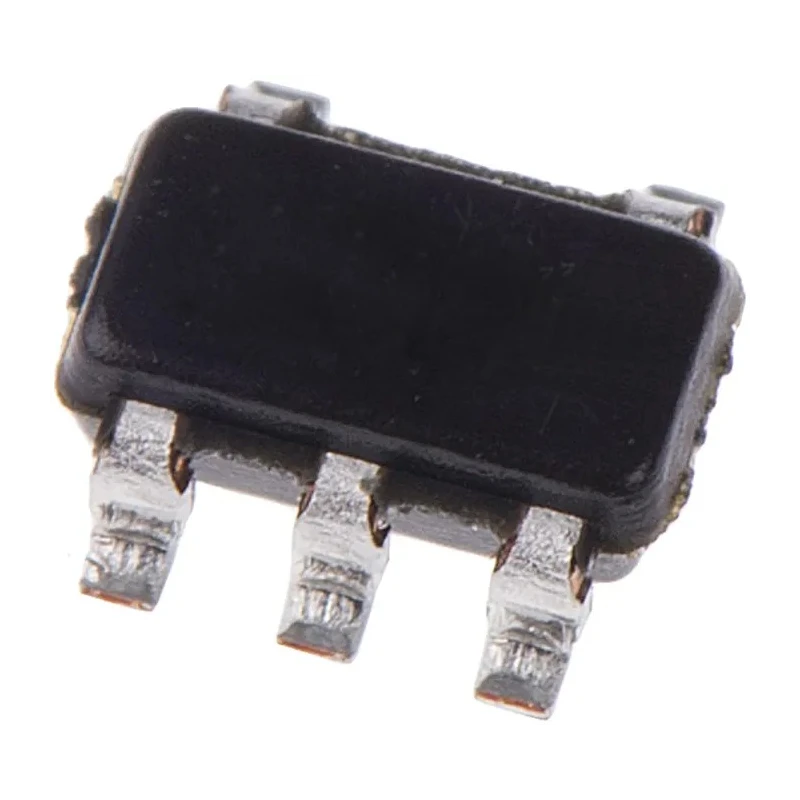

STMicroelectronics STMPS2161STR High Side Power Switch IC, SOT-23, 5-Pin, 2.7 - 5.5V, 1A, 90mΩ, STMPS2161STR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | STMPS2161STR |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | STMPS2161 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 1A |
| Number of outputs | 5 |
| Standards/Approvals | UL (E354278) |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Switch On Resistance RdsOn | 90mΩ |
| Enable Input | CMOS and TTL compatible |
Key Features
- High-side power switch IC with low 90 mΩ switch on resistance for efficient power delivery.
- Supports continuous output current up to 1 A, suitable for demanding applications.
- Wide voltage supply range of 2.7 to 5.5 V allows flexible circuit design.
- SOT-23 surface mount package with 5 pins enables compact integration in PCBs.
- Integrated thermal and short circuit protection for safe operation and reliability.
- CMOS and TTL compatible enable input for versatile system compatibility.
- Maximum standby supply current of just 12 μA ensures energy efficiency.
- UL approved component for enhanced safety compliance.
Product Description
STMicroelectronics STMPS2161STR is a high-side power switch IC engineered for effective power distribution in electronic circuits. With a low RdsOn value of 90 mΩ, this IC provides efficient power switching capabilities, minimizing power losses and heat generation. The STMPS2161STR supports a continuous output current of up to 1 ampere, making it ideal for applications involving heavy capacitive loads and short-circuit protection.
This device operates within a supply voltage range of 2.7 V to 5.5 V, offering flexibility for integration into a wide variety of power management scenarios. It is delivered in an industry-standard SOT-23 surface mount package, featuring five pins for easy PCB mounting and space-saving design. Multiple built-in protective features, including thermal shutdown and short circuit protection, help maintain operational reliability under demanding conditions.
The STMPS2161STR is compatible with both CMOS and TTL level enable inputs, enabling seamless operation with multiple microcontroller and logic systems. This intelligent power switch incorporates under voltage lockout (UVLO) to safeguard circuits during voltage drops. Its maximum standby supply current of 12 μA promotes energy-efficient designs, especially in portable and low-power electronics.
Additional features include UL (E354278) approval, robust operational temperature range from -40°C to 85°C, and a compact dimensional profile with height 1.3 mm, length 3 mm, and width 1.75 mm. It does not fulfill automotive standards, focusing instead on industrial and commercial electronics requirements. Series designation is STMPS2161, reflecting its enhanced single-channel architecture within the STMPS21xx family.
Applications for the STMPS2161STR high-side power switch IC include industrial and commercial power management, laboratory instrumentation, portable devices, and manufacturing control systems. Its reliability and protective functions make it suitable for environments where power efficiency and safety are critical.
For further selection of Power Switch ICs and related solutions from STMicroelectronics, explore the EnvMart electronics and semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMPS2161STR supports a continuous output current of up to 1 ampere.
It operates within a supply voltage range of 2.7 V to 5.5 V.
The switch on resistance (RdsOn) is 90 mΩ, which allows for efficient power switching capabilities.
This model is delivered in a SOT-23 surface mount package with five pins.
The dimensions are height 1.3 mm, length 3 mm, and width 1.75 mm.
It has an operational temperature range from -40°C to 85°C.
Yes, it features CMOS and TTL compatible enable inputs for versatile system compatibility.
This model includes integrated thermal shutdown and short circuit protection for operational reliability.
The maximum standby supply current is just 12 μA, promoting energy efficiency.
It is suitable for industrial and commercial power management, laboratory instrumentation, and portable devices.
Yes, it is UL approved (E354278), ensuring enhanced safety compliance.
The series designation is STMPS2161, indicating its single-channel architecture within the STMPS21xx family.
