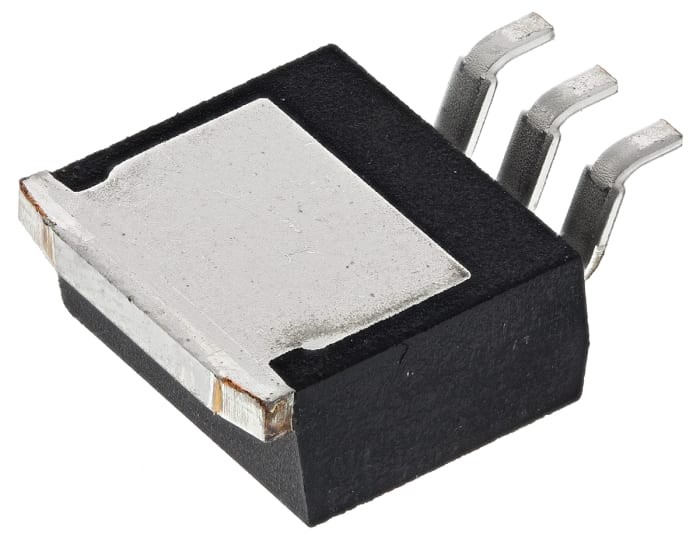

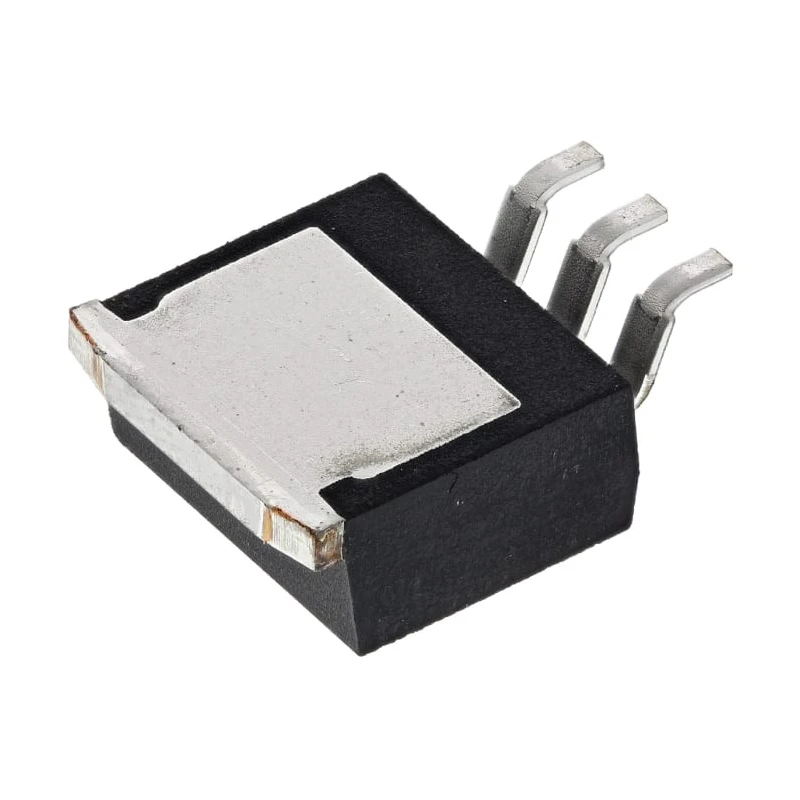

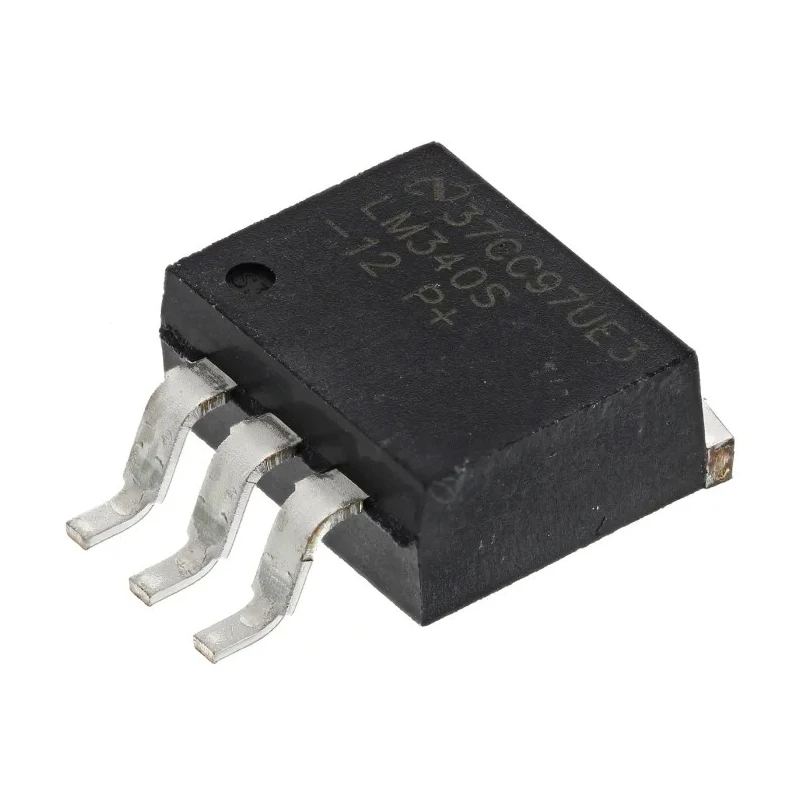

Texas Instruments Linear Voltage Regulator 35V 3-Pin Surface Mount Positive Polarity LM340S-12/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments, Voltage Regulator 35V 3-Pin RS Stock No |
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 10.16mm |
| Model | LM340S-12/NOPB |
| Width | 8.64mm |
| Mount Type | Surface |
| Series | LM340 |
| Output Current | 1 A LM340 Series |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 8mA |
| Minimum Input Voltage | 14.6V |
| Pin Count | 3 |
Key Features
- Three-terminal positive voltage regulator with fixed 12 V output.
- Designed with internal current limiting, thermal shutdown, and safe area compensation.
- Surface mount device with 3 pins, suitable for PCB integration.
- Operates reliably within maximum input voltage of 35 V and minimum input of 14.6 V.
- Capable of operating at a maximum temperature of 125°C for robust industrial use.
- Quiescent current is low at 8 mA to ensure efficient performance.
- Positive polarity design suitable for a wide range of electronic components and circuits.
- Compliant with no specific external parts required unless output adjustment needed.
Product Description
Texas Instruments LM340S-12/NOPB is a linear voltage regulator designed for fixed voltage regulation applications. This 3-pin surface mount device operates with a positive polarity and provides a fixed output voltage of 12 V with a maximum input voltage of 35 V. It features internal current limiting, thermal shutdown, and safe area compensation for reliable operation under demanding conditions.
The LM340S-12/NOPB requires no external components unless output adjustment is desired, making it a compact and efficient solution for power regulation in electronic circuits. It has a quiescent current of 8 mA, ensuring efficient power consumption and heat dissipation.
This surface mount voltage regulator is sized with compact dimensions (10.16 mm length, 8.64 mm width, and 4.57 mm height), facilitating integration into PCB layouts. It is rated for a maximum operating temperature of 125°C, suitable for industrial and commercial applications where reliable voltage regulation is necessary.
The device can deliver a maximum output current of 1 A, making it suitable for a wide range of power management needs in electronics manufacturing, testing, and design. It is ideal for use in fixed voltage power supplies, embedded systems, consumer electronics, and instrumentation.
Three-terminal positive voltage regulator offering fixed 12 V output. Internal protections including current limiting and thermal shutdown. Compact surface mount package for easy PCB integration. Wide operating temperature range up to 125°C for durability.
Automotive standard not applicable, designed primarily for industrial and commercial electronics. Efficient quiescent current of 8 mA for low power consumption. Input voltage range of 14.6 V minimum to 35 V maximum. Robust design eliminating the need for external components under standard conditions.
Supports stable power regulation for industrial, commercial, laboratory, and manufacturing electronics use. Set contains single LM340S-12/NOPB voltage regulator device in tube packaging ready for production insertion. Explore a wide range of voltage regulators and power management solutions at EnvMart to enhance your electronics design and manufacturing capabilities.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 35 V.
It provides a fixed output voltage of 12 V.
This model can deliver a maximum output current of 1 A.
The dimensions are 10.16 mm in length, 8.64 mm in width, and 4.57 mm in height.
The quiescent current is low at 8 mA, ensuring efficient performance.
It operates reliably at a maximum temperature of 125°C.
No external components are required unless output adjustment is needed.
It has a positive polarity design suitable for various electronic components and circuits.
The minimum input voltage is 14.6 V.
Key features include internal current limiting, thermal shutdown, and safe area compensation.
It is a surface mount device with 3 pins, suitable for PCB integration.
The country of origin for this model is India.
