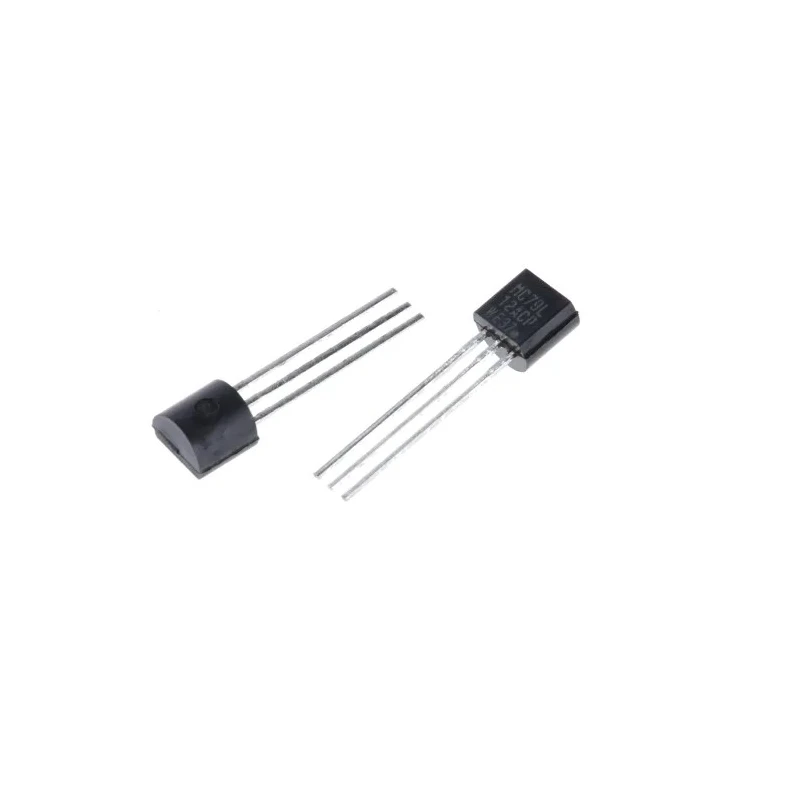

onsemi Negative Voltage Regulator MC79L12ACPG, TO-92 3-Pin, -35V Max Input Voltage, 6mA Quiescent Current MC79L12ACPG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi MC79L12ACPG, Voltage Regulator -35V TO-92 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 5.33mm |
| Length | 5.2mm |
| Model | MC79L12ACPG |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Series | MC79LxxA |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Negative |
| Maximum Input Voltage | -35V |
| Quiescent Current | 6mA |
| Minimum Input Voltage | -13.7V |
| Pin Count | 3 |
Key Features
- Linear negative voltage regulator suitable for up to 100 mA output current applications.
- Packaged in compact TO-92 through-hole mount with 3 pins.
- Includes internal short circuit current limiting for robust operation.
- Thermal overload protection enhances device reliability.
- Operating temperature up to 125°C suitable for industrial environments.
- Fixed output voltage of -12 V supports negative voltage regulation needs.
- No external components required simplifying circuit design.
- Polarity is negative, ideal for applications needing negative voltage rails.
Product Description
onsemi MC79L12ACPG is a negative linear voltage regulator integrated circuit housed in a TO-92 3-pin through-hole package. It provides a fixed output voltage of -12 V with a maximum input voltage rating of -35 V and supports output currents up to 100 mA. This regulator features internal short circuit current limiting and thermal overload protection to ensure durable and reliable operation in various electronic applications.
The device’s quiescent current of 6 mA allows for efficient operation with minimal power loss. Its compact TO-92 package, measuring approximately 5.2 mm in length, 4.19 mm in width, and 5.33 mm in height, facilitates easy through-hole mounting in circuit boards.
This regulator is suitable for use in industrial, laboratory, and electronic instrumentation applications requiring a negative fixed voltage rail. Typical uses include on-card regulation and small current output negative voltage supplies, eliminating the need for additional external components.
The device operates reliably over a temperature range up to 125°C, ensuring performance in demanding environments. It adheres to Pb-Free packaging protocols, supporting environmentally conscious manufacturing processes.
Linear negative voltage regulator up to 100 mA output current. TO-92 package with through-hole mount. Internal short circuit current limiting for protection. Thermal overload protection for durability. Fixed output voltage of -12 V for negative voltage applications.
Quiescent current of 6 mA minimizes power consumption. Operating temperature range up to 125°C for industrial use. No external components required for operation. Compact dimensions suitable for PCB integration. Pb-Free package for environmental compliance.
This product is essential for semiconductor and power management IC applications, suitable for electronics manufacturers, designers, and engineers. Explore further voltage regulator solutions on EnvMart for your electronics components needs.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is -35V.
It provides a fixed output voltage of -12 V.
This unit supports output currents up to 100 mA.
The quiescent current for this model is 6 mA.
The dimensions are approximately 5.2 mm in length, 4.19 mm in width, and 5.33 mm in height.
This model uses a through-hole mounting type.
The maximum operating temperature is 125°C.
No, it does not require any external components for operation.
It features internal short circuit current limiting and thermal overload protection for enhanced reliability.
The output voltage polarity is negative, suitable for applications needing negative voltage rails.
It is typically used in industrial, laboratory, and electronic instrumentation applications requiring a negative fixed voltage rail.
This model belongs to the MC79LxxA series.
