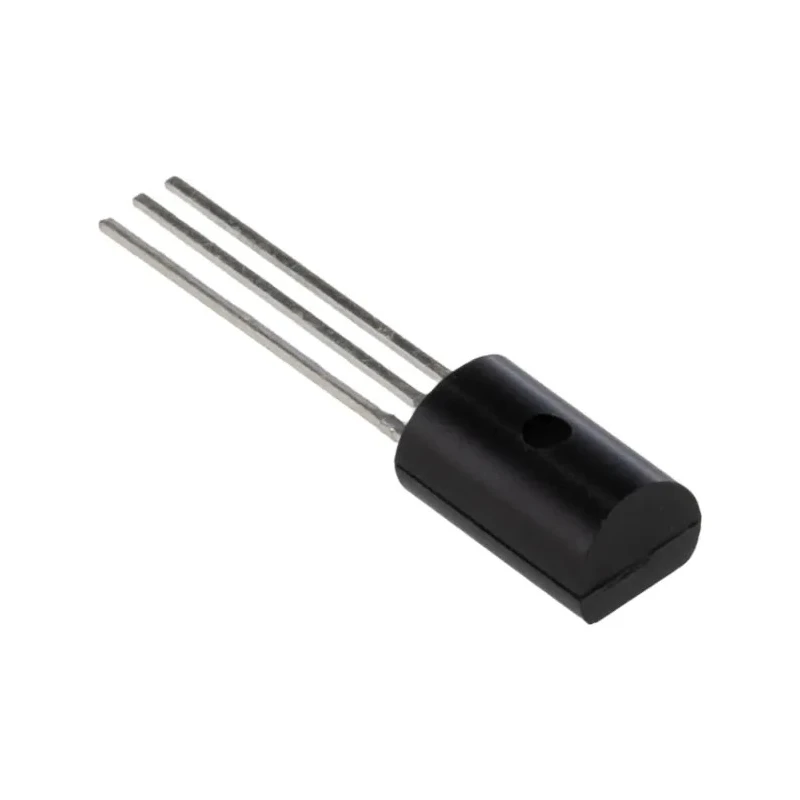

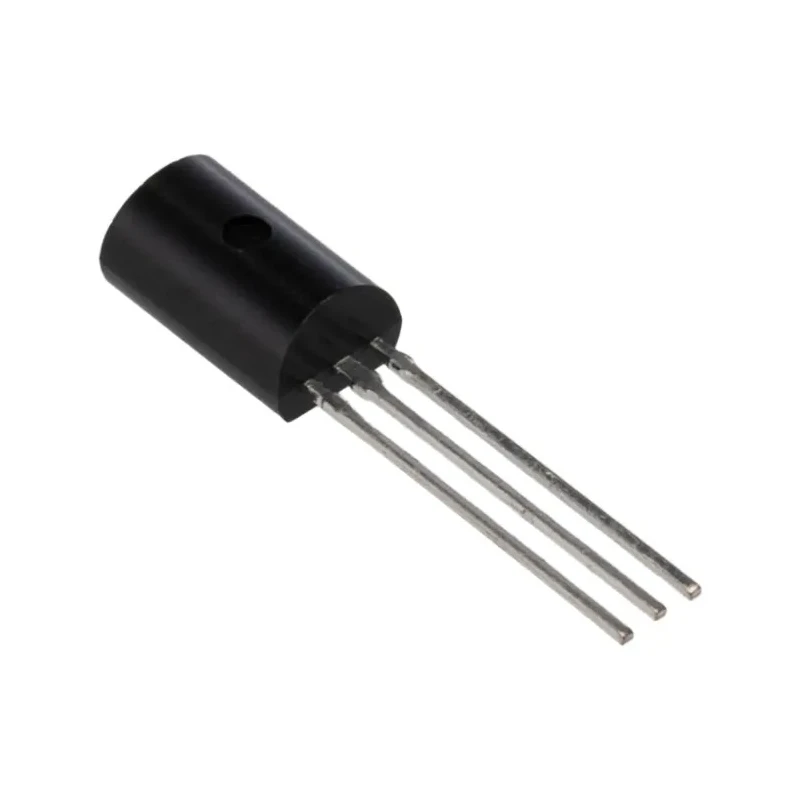

onsemi 5V Linear Voltage Regulator MC78L05ACPG, Positive Polarity, TO-92 Package, 3-Pin, 30V Max Input Voltage MC78L05ACPG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi MC78L05ACPG, Voltage Regulator 30V TO-92 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 5.33mm |
| Length | 5.2mm |
| Model | MC78L05ACPG |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Series | MC78Lxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 3mA |
| Minimum Input Voltage | 6.7V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Provides fixed 5V output voltage with internal thermal overload protection.
- Operates with a maximum input voltage of 30V and minimum input voltage of 6.7V.
- Features low quiescent current of 3 mA for energy-efficient operation.
- Compact TO-92 package with 5.2mm length, 4.19mm width, and 5.33mm height.
- Meets AEC-Q100 automotive quality standards, ensuring reliability in harsh environments.
- Suitable for local and on-card voltage regulation in electronic circuits.
- Requires no external components, simplifying design and reducing system cost.
- Incorporates built-in current limiting and safe area compensation.
Product Description
This fixed-voltage regulator is designed for positive polarity and supplied in a compact TO-92 three-pin package suitable for through-hole mounting.
It can handle a maximum input voltage of 30V and operates with a low quiescent current of 3mA, making it energy efficient for a wide range of electronic applications. The regulator includes internal thermal overload protection, current limiting, and safe area compensation, ensuring robust performance and long-term reliability.
The device's compact dimensions - 5.2mm length, 4.19mm width, and 5.33mm height - allow easy integration into various electronic assemblies. It conforms to the automotive standard AEC-Q100, making it viable for automotive electronic systems and other demanding industrial applications.
This linear voltage regulator is typically used for local regulation on PCB cards without the requirement for external components, simplifying circuit designs and reducing additional component costs.
Fixed +5V voltage output with positive polarity. Maximum input voltage rating up to 30 volts. Low quiescent current of 3 milliamps. TO-92 package type suitable for through-hole mount. Meets AEC-Q100 automotive quality standards.
Includes internal thermal, overload, and current limiting protections. Compact physical dimensions for versatile design integration.
This Voltage Regulator IC suits industrial electronics, automotive electronics, power management circuits, and general electronic device applications that require stable 5V supply with minimal external components.
Explore more voltage regulation solutions and related semiconductor components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this voltage regulator is 30V.
It provides a fixed output voltage of 5V with positive polarity.
The dimensions of the TO-92 package are 5.2mm in length, 4.19mm in width, and 5.33mm in height.
The quiescent current is 3mA, which contributes to its energy-efficient operation.
No, it requires no external components, simplifying design and reducing system costs.
It meets the AEC-Q100 automotive quality standards, ensuring reliability in harsh environments.
The minimum input voltage is 6.7V.
This model supports through-hole mounting.
It includes internal thermal overload protection, current limiting, and safe area compensation.
The maximum operating temperature is 125°C.
It belongs to the MC78Lxx series.
The country of origin for this voltage regulator is India.
