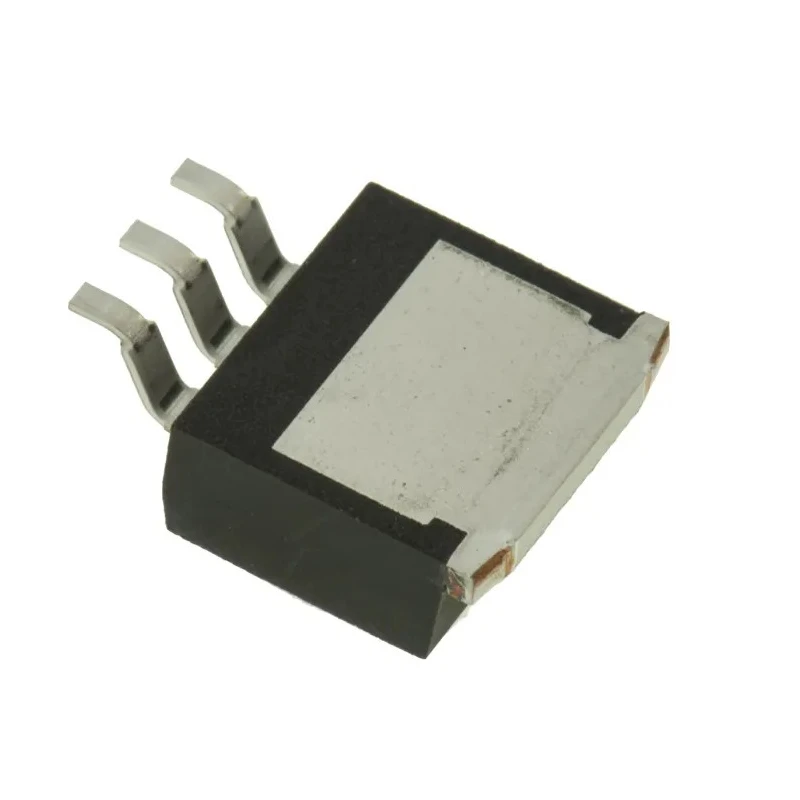

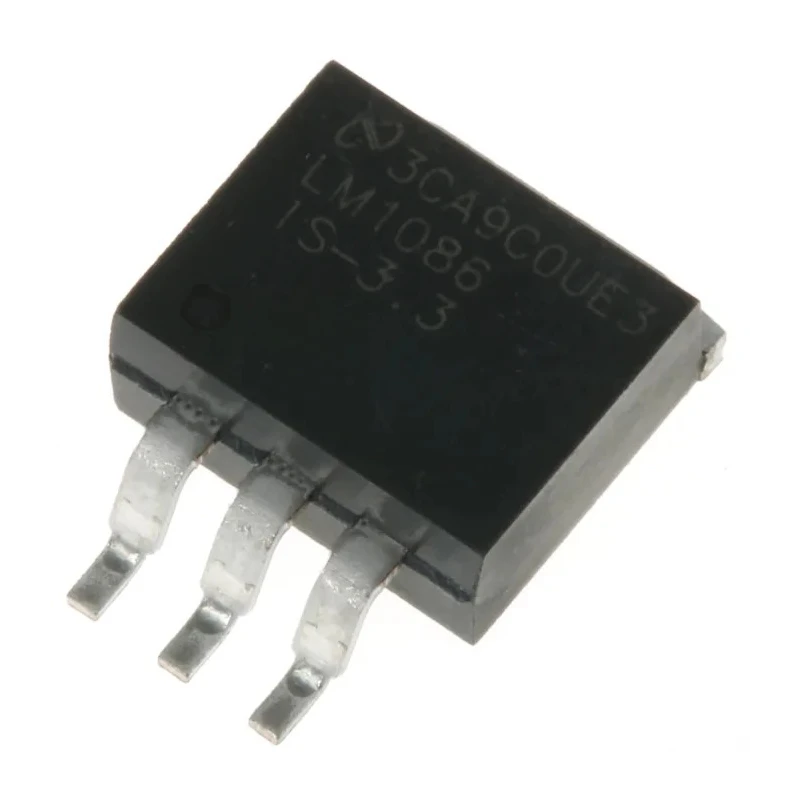

Texas Instruments Voltage Regulator Surface Mount Positive Polarity 3-Pin 30V LM1086IS-3.3/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments, Voltage Regulator 30V 3-Pin RS Stock No |
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 10.16mm |
| Model | LM1086IS-3.3/NOPB |
| Width | 8.64mm |
| Mount Type | Surface |
| Series | LM1086 |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 5mA |
| Minimum Input Voltage | 2.6V |
| Pin Count | 3 |
Key Features
- Low dropout linear voltage regulator suitable for precise voltage regulation.
- Designed for 1.5A output current with thermal and current limiting protection.
- Compact surface mount package measuring 10.16mm length by 8.64mm width by 4.57mm height.
- Operating temperature range up to 125°C ensuring reliable performance.
- Ideal for applications requiring stable low noise power supply regulation.
- Offers excellent line regulation and high power supply ripple rejection (PSRR).
- Complies with RoHS directives and available in a Pb-free packaging variant.
Product Description
Texas Instruments LM1086IS-3.3/NOPB is a low dropout (LDO) linear voltage regulator designed as a 3-pin surface mount positive polarity device. It operates over a maximum input voltage of 30V with a quiescent current of 5mA and maximum operating temperature of 125°C, suitable for a wide range of electronic power management applications.
This voltage regulator is part of the LM1086 series, delivering 1.5A output current with internal current limiting and thermal shutdown features to protect against overload conditions. Its low dropout voltage allows efficient voltage regulation even when input voltage is close to output voltage.
The compact package dimensions (10.16 mm length, 8.64 mm width, and 4.57 mm height) facilitate integration into dense PCB designs, contributing to cost-effective and reliable power supply solutions.
Applications include power management in consumer electronics, automotive equipment (non-automotive standard), industrial machinery, and laboratory equipment requiring stable voltage regulation. Its low quiescent current and reduced output noise make it particularly suitable for noise-sensitive circuits.
Key features include excellent line voltage regulation, high power supply ripple rejection (PSRR), and compliance with environmental safety standards such as RoHS. Low dropout linear voltage regulator for precise voltage control.
Thermal and current protection for reliable operation. Compact surface mount package for efficient PCB layout. Wide input voltage range from 2.6V minimum to 30V maximum. Maximum operating temperature rating of 125°C. Positive polarity with 3-pin connection.
RoHS compliant and nickel-free, lead-free packaging option.
Choose Texas Instruments LM1086IS-3.3/NOPB for dependable, high-performance voltage regulation in industrial, electronic, and power supply applications. Browse similar Voltage Regulator ICs at EnvMart for diverse power management devices from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the LM1086IS-3.3/NOPB is 30V.
This voltage regulator is designed to deliver an output current of 1.5A.
The compact surface mount package measures 10.16 mm in length, 8.64 mm in width, and 4.57 mm in height.
It operates within a temperature range up to 125°C.
The quiescent current for the LM1086IS-3.3/NOPB is 5mA.
Yes, the LM1086IS-3.3/NOPB complies with RoHS directives and is available in a Pb-free packaging variant.
This voltage regulator uses a surface mount configuration.
The minimum input voltage for the LM1086IS-3.3/NOPB is 2.6V.
It includes internal current limiting and thermal shutdown features for protection against overload conditions.
It is suitable for power management in consumer electronics, automotive equipment, industrial machinery, and laboratory equipment requiring stable voltage regulation.
The LM1086IS-3.3/NOPB is part of the LM1086 series of voltage regulators.
The LM1086IS-3.3/NOPB has a positive polarity.
