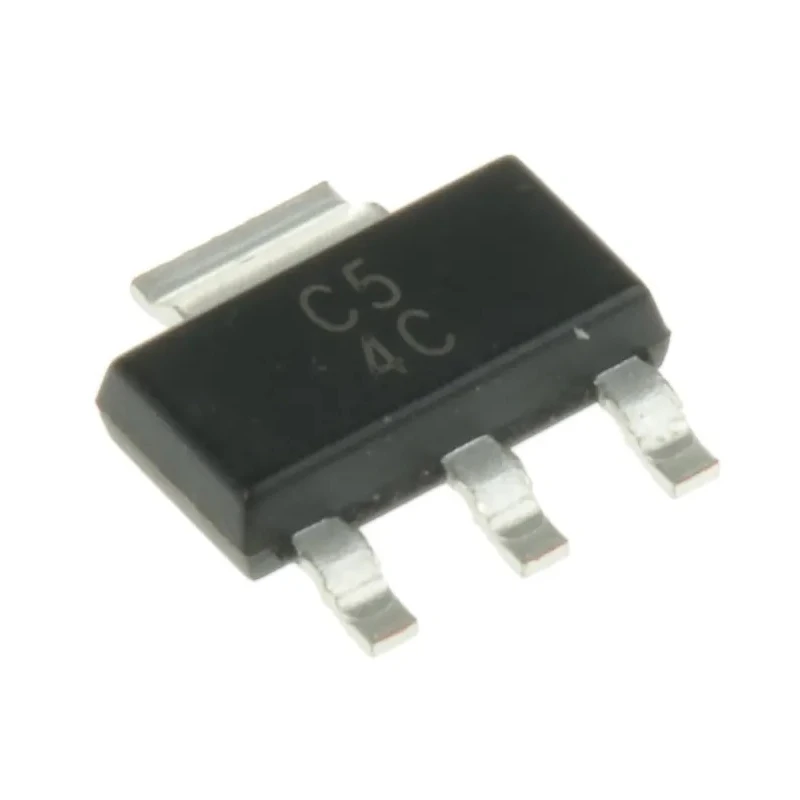

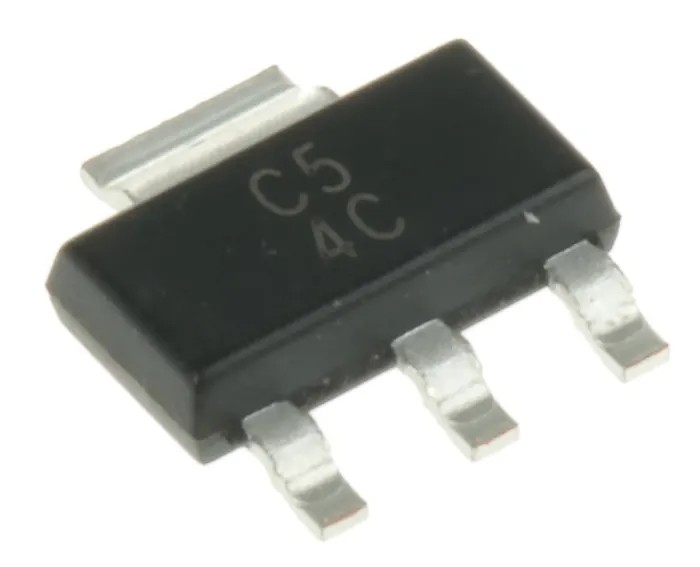

Texas Instruments Linear Voltage Regulator 25V SOT-223 4-Pin UA78M05CDCY
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments, Voltage Regulator 25V SOT-223 4-Pin RS Stock No |
| Brand | Texas Instruments |
| Height | 1.6mm |
| Length | 6.5mm |
| Model | UA78M05CDCY |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | UA78Mxx |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Polarity | Positive |
| Maximum Input Voltage | 25V |
| Quiescent Current | 4.5mA |
| Minimum Input Voltage | 7V |
| Pin Count | 4 |
Key Features
- Offers 0.5A output current with internal short-circuit and thermal overload protection.
- Operating voltage range is 7V minimum to 25V maximum input.
- Designed for on-card regulation in telecommunication, computing, and portable devices.
- Surface mount SOT-223 package type supports efficient thermal dissipation.
- Low quiescent current of 4.5mA ensures efficient operation.
- Maximum operating temperature rated up to 125 degrees Celsius.
Product Description
Texas Instruments UA78M05CDCY linear voltage regulator is a fixed positive voltage regulator providing a 25V output in a compact SOT-223 4-pin surface mount package. It delivers up to 0.5A output current with internal thermal overload shutdown and short-circuit current limiting, making it robust and reliable for various industrial and commercial electronic applications.
This regulator is suitable for a wide range of applications including telecommunications, computing equipment, and portable electronic devices where on-card regulation is essential to maintain stable voltage supply and prevent issues related to single point regulation.
The SOT-223 package features dimensions of 6.5mm in length, 3.5mm in width, and 1.6mm in height, providing a compact footprint while supporting efficient heat dissipation. The device operates over an input voltage range from 7V to 25V, with a maximum operating temperature of 125°C, making it appropriate for demanding industrial environments.
Key technical attributes include a low quiescent current of 4.5mA and compliance with no specific automotive standard. The internal circuitry ensures output transistor safe-area compensation for linear power dissipation under varying load conditions.
Offers 0.5A output current with internal short-circuit and thermal overload protection. Operating voltage range is 7V minimum to 25V maximum input. Compact SOT-223 4-pin surface mount package with dimensions 6.5 x 3.5 x 1.6 mm.
Suitable for telecommunication, computing, and portable device power management. Low quiescent current of 4.5mA for efficient power use. Maximum operating temperature of 125°C for industrial reliability.
This voltage regulator is a reliable component choice for designers requiring fixed output Voltage Regulators with robust protections and compact footprint. Explore more Texas Instruments power management ICs and regulators in the EnvMart catalog for industrial and commercial electronic system design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a maximum output current of 0.5A.
It operates over an input voltage range from 7V to 25V.
The SOT-223 package has dimensions of 6.5mm in length, 3.5mm in width, and 1.6mm in height.
The quiescent current is 4.5mA, ensuring efficient operation.
The maximum operating temperature is rated at 125°C.
It uses a surface mount type for installation.
It includes internal short-circuit and thermal overload protection.
It is designed for applications in telecommunications, computing, and portable devices.
This model has a pin count of 4.
The output voltage is positive polarity.
It belongs to the UA78Mxx series of voltage regulators.
The country of origin is India.
