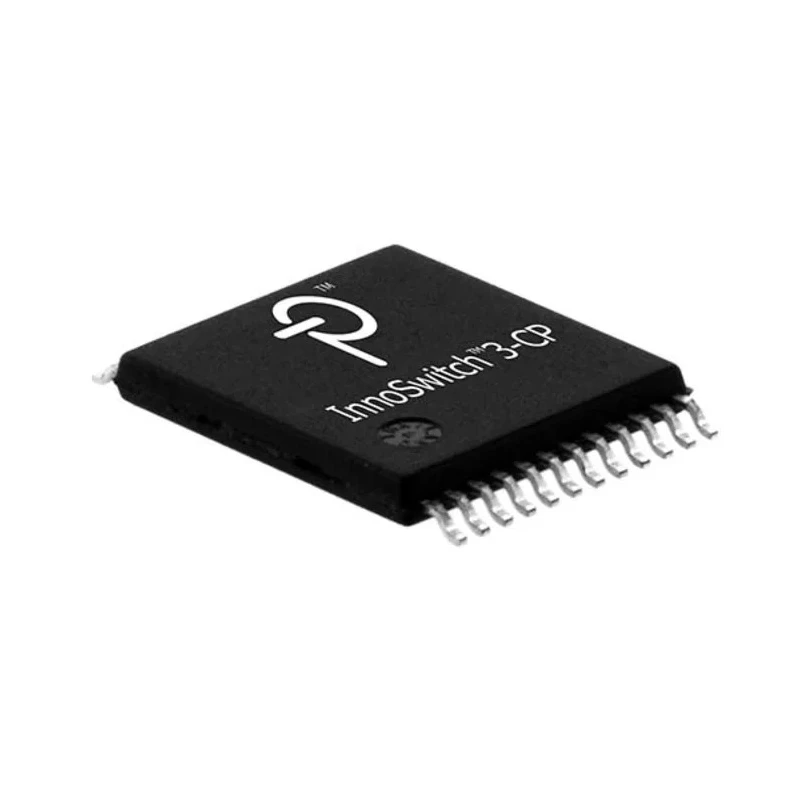

Power Integrations Voltage Controller 16-Pin 85 V to 265 V Surface Mount INN3268C-H202-TL
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Controllers Power Integrations INN3268C-H202-TL 16-Pin 85 V 265V RS Stock No |
| Brand | Power Integrations |
| Height | 1.45mm |
| Length | 9.4mm |
| Model | INN3268C-H202-TL |
| Mount Type | Surface |
| Series | InnoSwitch3-CP |
| Maximum Operating Temperature | 150°C |
| Interfaces | USB PD/QC 4 |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 265V |
| Minimum Supply Voltage | 85V |
Key Features
- Operates with a voltage range of 85 V minimum to 265 V maximum.
- Compact size with length of 9.4 mm and height of 1.45 mm.
- Incorporates primary and secondary controllers with safety-rated feedback.
- Features multiple protection functions including over-voltage, over-current, and over-temperature shutdown.
- Supports fast charge protocols such as USB PD and Quick Charge 4.0.
- Achieves up to 94% efficiency across full load range.
- Includes constant power profile to minimize charging time.
- Low heat dissipation with less than 15 mW no-load power consumption.
Product Description
Power Integrations INN3268C-H202-TL is a high-efficiency voltage controller IC featuring 16 pins and surface mount technology. It is designed specifically for flyback power converters, ensuring compact solution size with a length of 9.4 mm and height of 1.45 mm. Its operational voltage ranges from 85 V minimum to 265 V maximum, making it suitable for a wide range of power supply applications.
This controller integrates both primary and secondary controllers along with safety-rated feedback, simplifying the design and manufacture of power supplies. The INN3268C-H202-TL is part of the InnoSwitch3-CP series and supports advanced protection features such as line over and under-voltage protection, output over-voltage and over-current limiting, and thermal shutdown at maximum 150°C operating temperature.
With the ability to support fast charge protocols like USB PD and Quick Charge 4.0, this IC provides constant power profiles that reduce charging times significantly. It also offers instantaneous transient response to load changes from 0% to 100% and back, with highly efficient power conversion reaching up to 94% efficiency throughout the load range.
Additional features include an external current sense resistor for customized constant current programming and low power consumption during no-load conditions (under 15 mW including line sense). The device is RoHS compliant and suitable for use in industrial, electronic component manufacturing, commercial power supplies, and related applications.
The compact footprint and advanced protection features make the INN3268C-H202-TL a reliable choice for engineers designing efficient and safe power management solutions. Operates within a supply voltage range of 85 V to 265 V.
Surface mount type with 16 pins. Provides multiple integrated protection mechanisms for safety. Compatible with fast charge protocols including USB PD and QC 4.0. Low power consumption during no-load. Compact physical dimensions suitable for space-saving designs.
High efficiency up to 94% under full load. RoHS compliant for environmental safety. Explore a wide range of Power Management ICs and related semiconductor products available at EnvMart, optimized for various industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 85 V minimum to 265 V maximum.
The INN3268C-H202-TL has a length of 9.4 mm and a height of 1.45 mm, making it suitable for compact designs.
It features surface mount technology, allowing for efficient integration into various applications.
It incorporates multiple protection functions including over-voltage, over-current, and over-temperature shutdown.
This model supports fast charge protocols such as USB PD and Quick Charge 4.0.
The maximum operating temperature for the INN3268C-H202-TL is 150°C.
It achieves up to 94% efficiency across the full load range, optimizing power conversion.
This voltage controller features 16 pins, facilitating its surface mount application.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
The external current sense resistor allows for customized constant current programming, enhancing flexibility in applications.
It is part of the InnoSwitch3-CP series, designed for efficient power management solutions.
It is suitable for use in industrial, electronic component manufacturing, and commercial power supplies.
