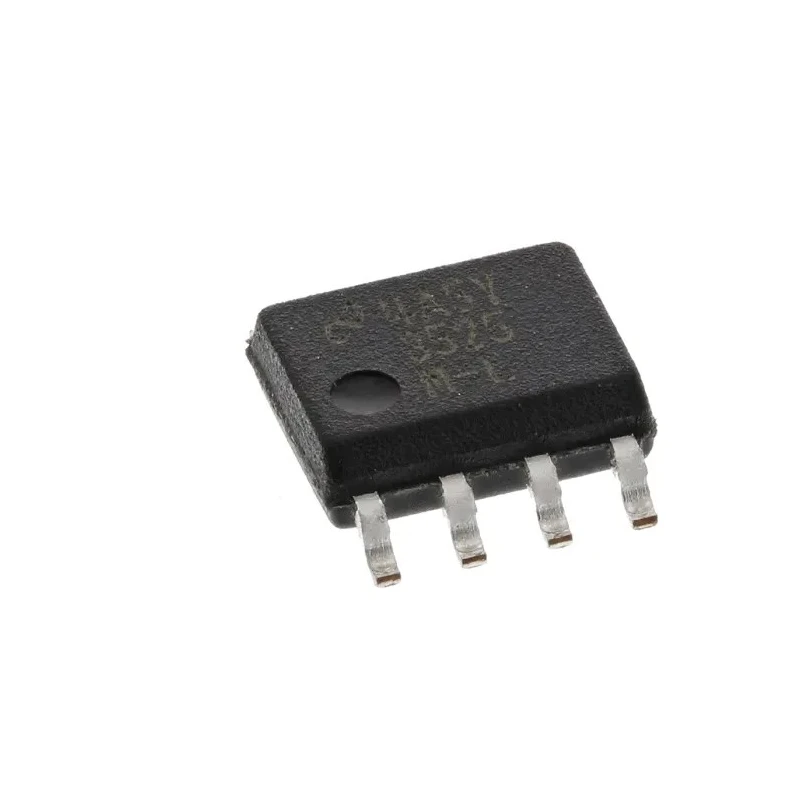

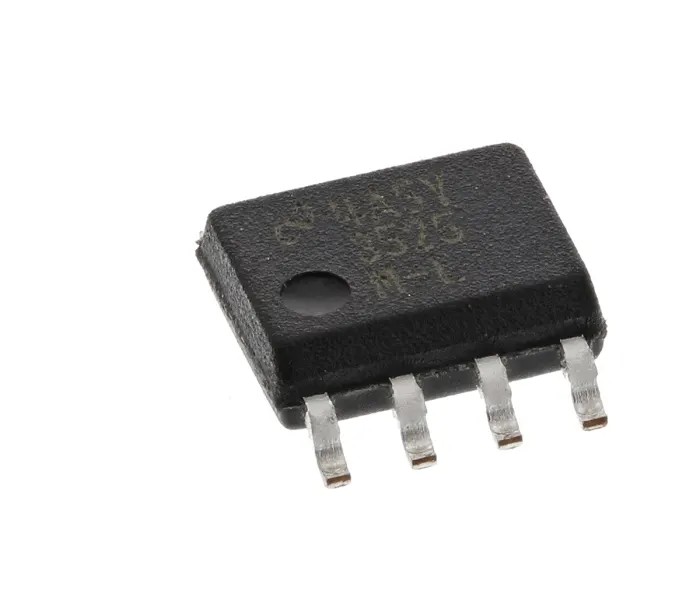

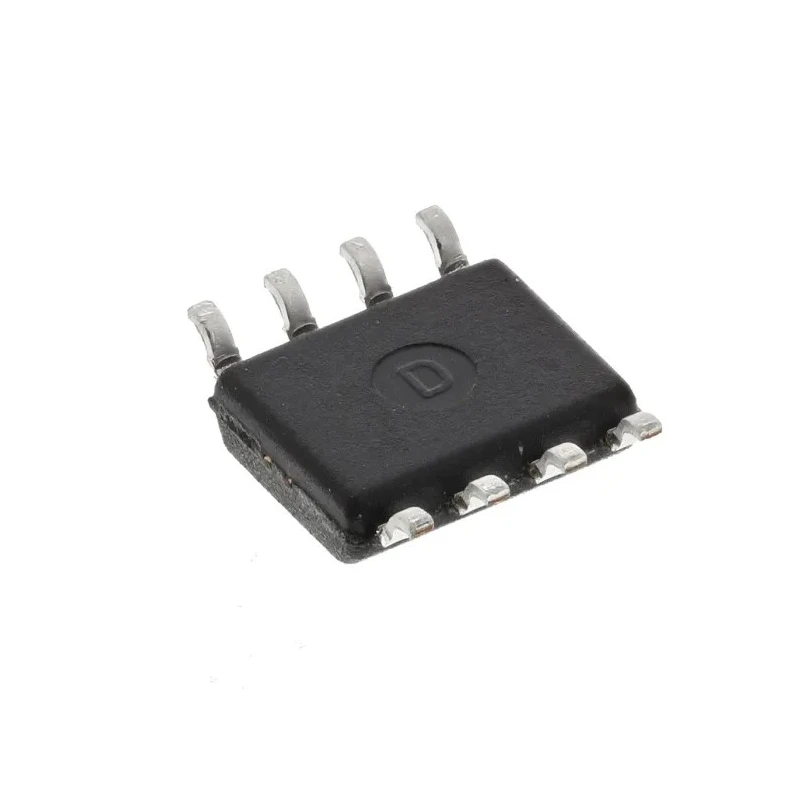

Texas Instruments High-Side Power Switch IC, SOIC, 8-Pin, 2.7 - 5.5V, 2.25A, 80mΩ, LM3525M-L/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LM3525M-L/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Operating Current | 2.25A |
| Number of outputs | 3 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Switch On Resistance RdsOn | 80mΩ |
Key Features
- Features high-side power switching with integrated current limiting.
- Offers low switch on resistance of 80mΩ for efficient performance.
- Supports up to 2.25A operation current for robust device powering.
- Wide supply voltage range from 2.7V to 5.5V for flexible use.
- Compact SOIC package with 8 pins, ideal for PCB integration.
- Provides fixed current-limited protection for USB power and charging ports.
- Surface mount design simplifies automated assembly in production.
- RoHS-compliant for environmental safety.
Product Description
Texas Instruments LM3525M-L/NOPB is a high-side power switch IC designed for demanding electronic circuit applications requiring efficient USB power control and current-limited protection. The IC integrates three high-side switches, optimized for managing multiple output ports with robust fault tolerance and low on-resistance.
With a switch on resistance of just 80mΩ, the part delivers reliable, low-loss operation up to 2.25A per output. Its wide supply voltage range of 2.7 - 5.5V ensures compatibility with varying power environments, making it suitable for USB charging applications, power management in embedded systems, and industrial devices.
The compact SOIC package (8-Pin footprint: 4.9mm × 3.9mm × 1.45mm) allows for streamlined integration into PCBs and rapid automated surface-mount assembly. Standard operating temperature ranges from -40°C to 85°C, supporting deployment in challenging environments.
Chip-level features include integrated current limiting for overcurrent protection, ensuring devices are safeguarded from faults. The fixed current-limited switch is especially suited for USB power and charging port control modules, and is compatible with USB Power and Charging Port Controllers used across diverse fields.
RoHS compliance guarantees environmental and health safety, while the automotive standard flag (No) confirms its focus on industrial and embedded applications rather than automotive deployment. The IC is extensively utilized in manufacturing, laboratory instrumentation, embedded electronics, and commercial hardware.
Features high-side power switching with integrated current limiting. Offers low switch on resistance of 80mΩ for efficient performance. Supports up to 2.25A operation current for robust device powering. Wide supply voltage range from 2.7V to 5.5V for flexible use.
Compact SOIC package with 8 pins, ideal for PCB integration. Provides fixed current-limited protection for USB power and charging ports. Surface mount design simplifies automated assembly in production. RoHS-compliant for environmental safety.
Explore more Texas Instruments power management ICs and Power Switch IC solutions in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM3525M-L/NOPB supports an operating current of up to 2.25A, making it suitable for robust device powering.
This power switch IC operates within a supply voltage range of 2.7V to 5.5V, allowing for flexible use in various applications.
The switch on resistance (RdsOn) of this model is 80mΩ, which contributes to its efficient performance.
The LM3525M-L/NOPB features three outputs, allowing it to manage multiple output ports effectively.
The compact SOIC package measures 4.9mm in length, 3.9mm in width, and 1.45mm in height, making it ideal for PCB integration.
This model utilizes a surface mount design, which simplifies automated assembly in production.
The LM3525M-L/NOPB operates within a temperature range of -40°C to 85°C, suitable for deployment in challenging environments.
Yes, the LM3525M-L/NOPB is RoHS-compliant, ensuring it meets environmental and health safety standards.
This model is particularly suited for USB power control and current-limited protection in embedded systems and industrial devices.
The integrated current limiting feature provides fixed current-limited protection, safeguarding devices from overcurrent faults.
This power switch IC has a pin count of 8, facilitating its integration into various electronic circuits.
The LM3525M-L/NOPB is manufactured in India.
