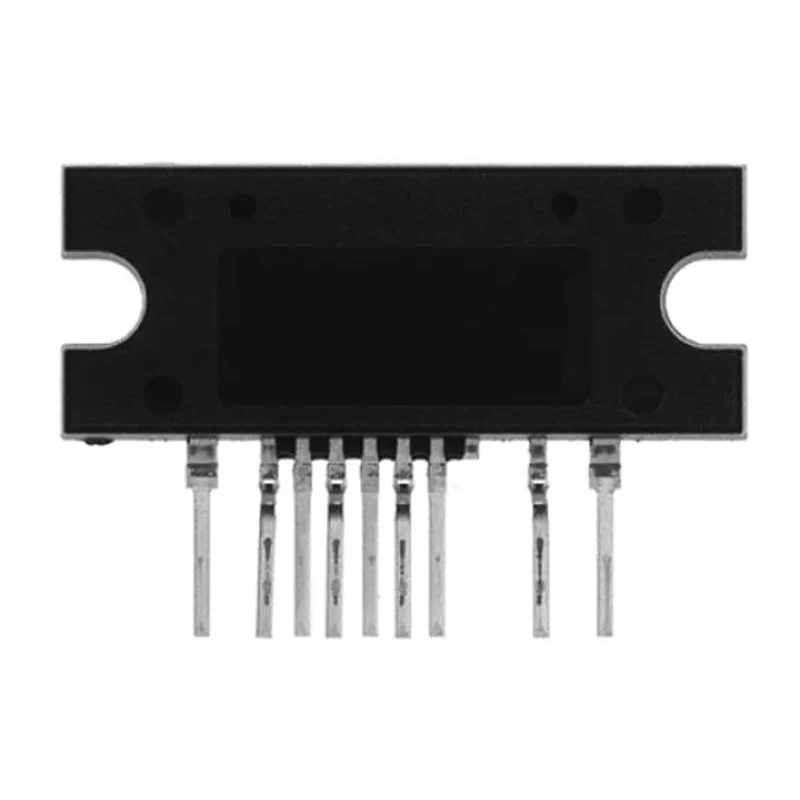

onsemi Half Bridge 1 Resonant Converter Power Switch IC 10-Pin SIP, 0.3-400V, 100W FSFR1700XS
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.4mm |
| Length | 26.2mm |
| Model | FSFR1700XS |
| Width | 10.7mm |
| Mount Type | Through Hole |
| Number of inputs | 1 |
| Series | FSFR-XS |
| Power Rating | 100W |
| Maximum Operating Temperature | 130°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Pin Count | 10 |
| Maximum Supply Voltage | 400V |
| Minimum Supply Voltage | 0.3V |
| Switch On Resistance RdsOn | 1.25Ω |
Key Features
- Operates with a supply voltage range from 0.3V to 400V.
- Power rating of 100 watts for robust performance.
- Features a low switch on resistance RdsOn of 1.25 ohms.
- Includes 1 input and 1 output control switching element.
- Package type is SIP with 10 pins for through-hole mounting.
- Wide operating temperature range between -40°C and 130°C.
- Incorporates integrated protections such as soft-start, over-voltage, overload, short-circuit, overcurrent, brownout, and undervoltage lockout.
- Suitable for LLC resonant and asymmetric half-bridge PWM controller applications.
Product Description
onsemi FSFR1700XS Half Bridge Resonant Converter Power Switch IC in a 10-Pin SIP package is engineered to provide efficient power switching performance in switch mode power supplies (SMPS).
This power management IC features a switch on resistance RdsOn of 1.25 ohms, supporting a power rating of 100 watts with supply voltages ranging from 0.3V to a maximum of 400V.
The device includes a single input and single output configuration, suitable for half-bridge resonant converter topologies, including LLC resonant and asymmetric half-bridge PWM controllers.
With through-hole mounting compatibility and physical dimensions of 26.2mm length, 10.7mm width, and 3.4mm height, this SIP package component provides robust thermal performance and wide operating temperature ranges from -40°C to 130°C.
onsemi incorporates integrated protection features such as soft-start, over-voltage protection, open-feedback protection, overload protection, output short circuit protection, overcurrent protection, voltage brownout protection, and undervoltage lockout to ensure operational reliability.
This Power Switch IC is ideal for industrial, commercial, and laboratory use in power supply design, manufacturing, and energy management systems where efficient DC-DC conversion and switch mode power control are critical.
Operates with supply voltage from 0.3V to 400V. Power rating of 100W for demanding power management applications. Low on resistance of 1.25Ω enables efficient switching. Compact 10-pin SIP package for through-hole mounting.
Wide operational temperature range from -40°C to 130°C supports harsh environments. Integrated protective features ensure device and circuit safety. Designed for use in LLC resonant and asymmetric half-bridge PWM controllers.
Supports isolated DC-DC power converters and SMPS architectures. Explore more power management ICs and solutions by onsemi and browse related products for power switching and conversion in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FSFR1700XS operates with a supply voltage range from 0.3V to 400V.
This model has a power rating of 100 watts, suitable for demanding power management applications.
It features a low switch on resistance RdsOn of 1.25 ohms, which enables efficient switching performance.
The SIP package dimensions are 26.2mm in length, 10.7mm in width, and 3.4mm in height.
This unit is designed for through-hole mounting, making it compatible with various circuit board configurations.
This power switch IC is suitable for LLC resonant and asymmetric half-bridge PWM controller applications.
The FSFR1700XS includes one input and one output control switching element.
It incorporates protections such as soft-start, over-voltage, overload, short-circuit, overcurrent, brownout, and undervoltage lockout.
This model is part of the FSFR-XS series of power management ICs.
The country of origin for this power switch IC is India.
It is ideal for industrial, commercial, and laboratory use in power supply design, manufacturing, and energy management systems.
