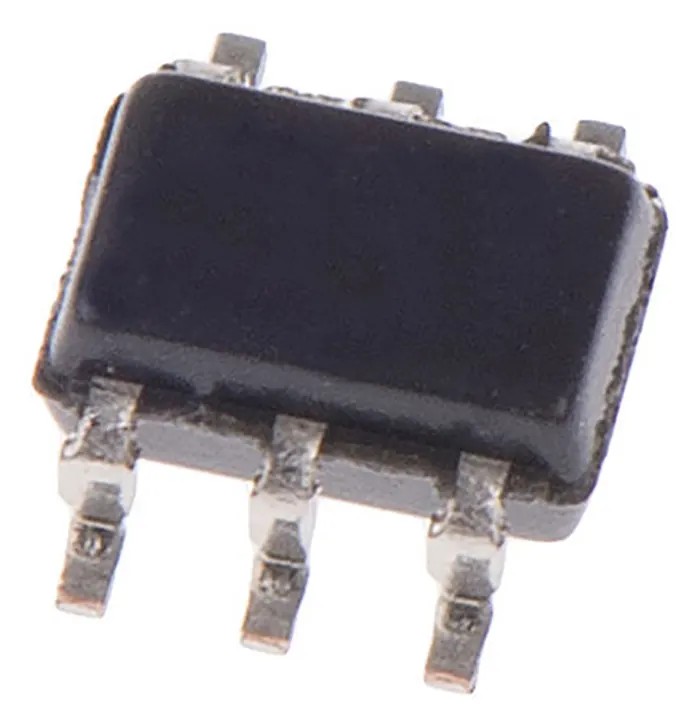

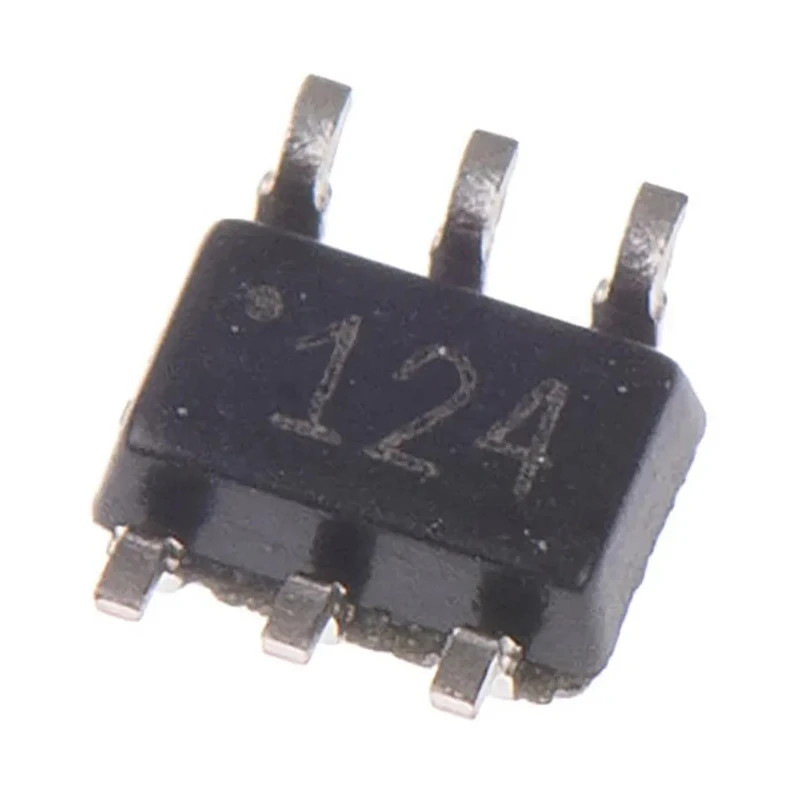

Texas Instruments Non-Inverting CMOS Bus Transceiver, 6-Pin SC-70 Package, 1 Channel, 1.2V to 3.6V Operating SN74AVC1T45DCKT

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Non-Inverting CMOS Bus Transceiver, 6-Pin SC-70 Package, 1 Channel, 1.2V to 3.6V Operating SN74AVC1T45DCKT

Name: Texas Instruments Non-Inverting CMOS Bus Transceiver, 6-Pin SC-70 Package, 1 Channel, 1.2V to 3.6V Operating SN74AVC1T45DCKT
Brand: Texas Instruments
SKU: 202654
Price: 20.22 USD
Availability: InStock



Category Bus Transceivers Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	900μm
Length	2mm
Model	SN74AVC1T45DCKT
Mount Type	Surface
Compatibility	Input LVCMOS, Output LVCMOS
Output type	3 State
Series	SN74AVC1T45
Maximum Operating Temperature	85°C
Package Type	SC-70
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	1
Pin Count	6
Maximum Supply Voltage	3.6V
Logic Family	AVC
Logic Function	Bus Transceiver
Minimum Supply Voltage	1.2V
Maximum High Level Output Current	-12mA
Maximum Propagation Delay Time @ CL	2.7ns
Maximum Low Level Output Current	12mA
Output Level	CMOS
Input Level	CMOS

Key Features

Operates over a wide supply voltage range from 1.2V to 3.6V.
Provides compatibility with input and output LVCMOS logic levels.
Features a maximum propagation delay time of 2.7ns at typical load.
Designed for surface mount with a compact 6-pin SC-70 package.
Maintains robust latch-up performance exceeding 100 mA per JESD 78 Class II standards.
Offers ESD protection exceeding JESD 227 requirements, enhancing device reliability.
Operating temperature range spans from -40°C to 85°C for industrial applications.
Supports 3-state output for versatile bus control and isolation.

Product Description

Texas Instruments SN74AVC1T45DCKT is a high-performance non-inverting CMOS bus transceiver designed for electronic applications requiring reliable data transmission with low power consumption. Encapsulated within a 6-pin SC-70 surface mount package, this device presents a compact footprint ideal for space-constrained designs.

Operating within a supply voltage range of 1.2V to 3.6V, the SN74AVC1T45DCKT is fully compatible with input and output LVCMOS logic levels, providing seamless integration into low-voltage digital systems. Its single channel operation and 3-state output capability enable effective bus arbitration and signal isolation.

The device features an impressive maximum propagation delay time of 2.7 ns at typical load conditions, ensuring high-speed data transfer. Its robust latch-up immunity of over 100 mA following JESD 78 Class II standards and stringent ESD protection exceeding JESD 227 enhance reliability in harsh electrical environments.

With an operational temperature range from -40°C to 85°C, the transceiver is well-suited for industrial and commercial electronic designs. The SC-70 package dimensions of 2 mm length and 900 μm height facilitate high-density printed circuit board configurations.

Wide operating voltage range from 1.2V to 3.6V. Input and output compatible with LVCMOS signal levels. Single channel bus transceiver with 3-state outputs. Low maximum propagation delay of 2.7 ns. Strong latch-up immunity and ESD protection.

Industrial temperature range of -40°C to 85°C. Compact 6-pin SC-70 surface mount package. Dimensions suitable for dense PCB layouts.

This bus transceiver is ideal for use in digital communication systems, embedded electronics, and industrial control applications. Explore more semiconductor components and logic ICs in our Electronics & Electricals category at EnvMart.

Explore more products in our Bus Transceivers category.
