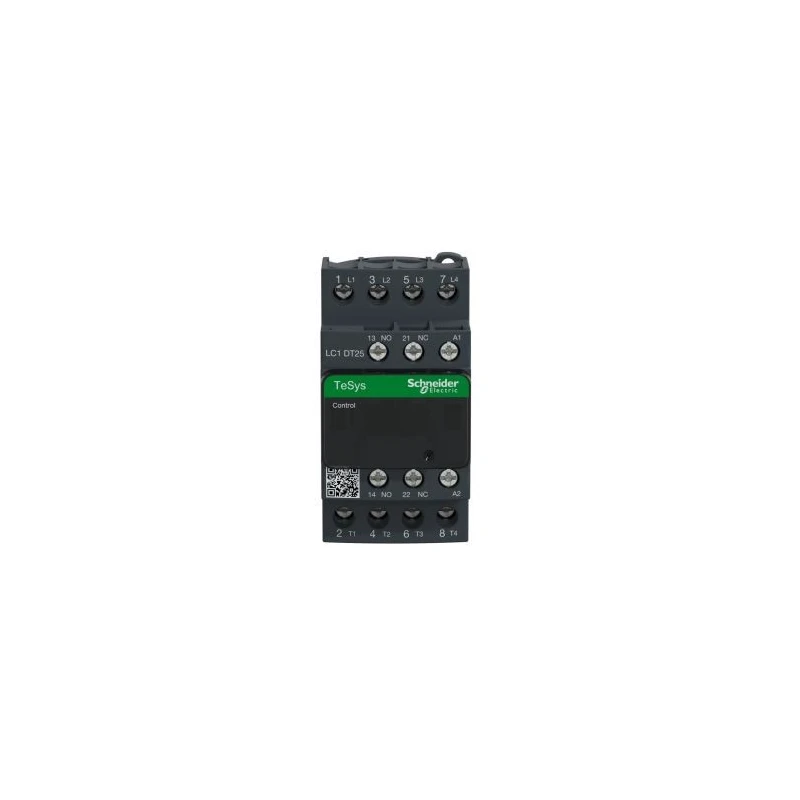

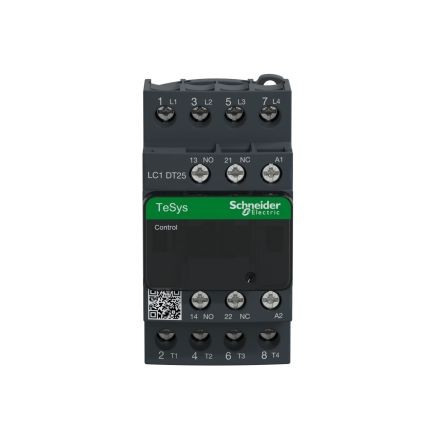

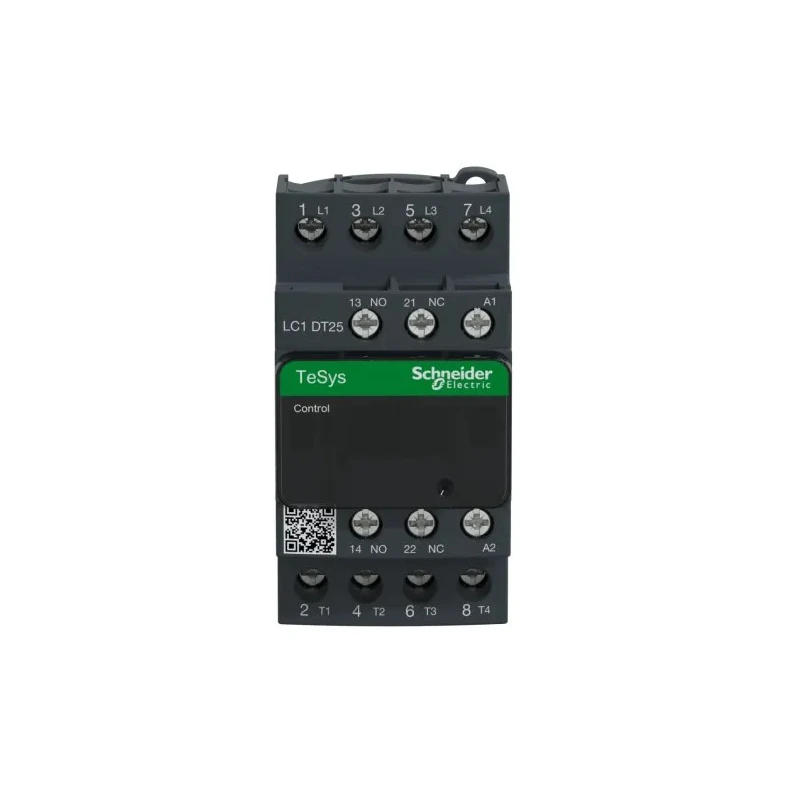

Schneider Electric LC1DT25E7 LC1D Contactor 48V AC Coil 4-Pole 25A 1.56W, 4 NO, 690V AC

Schneider Electric LC1DT25E7 is a 4-pole electromechanical contactor designed for industrial motor control and resistive load applications. It features a 48V AC coil and is capable of managing currents up to 25A with a contact voltage rating of 690V AC, making it ideal for integration into control panels and automation systems.

This compact device supports AC-1 duty with electrical durability rated at 0.8 million cycles at 25A and includes 4 normally open contacts for simultaneous multi-phase switching. The contactor also provides 1 normally open and 1 normally closed auxiliary contacts to accommodate signaling and control versatility.

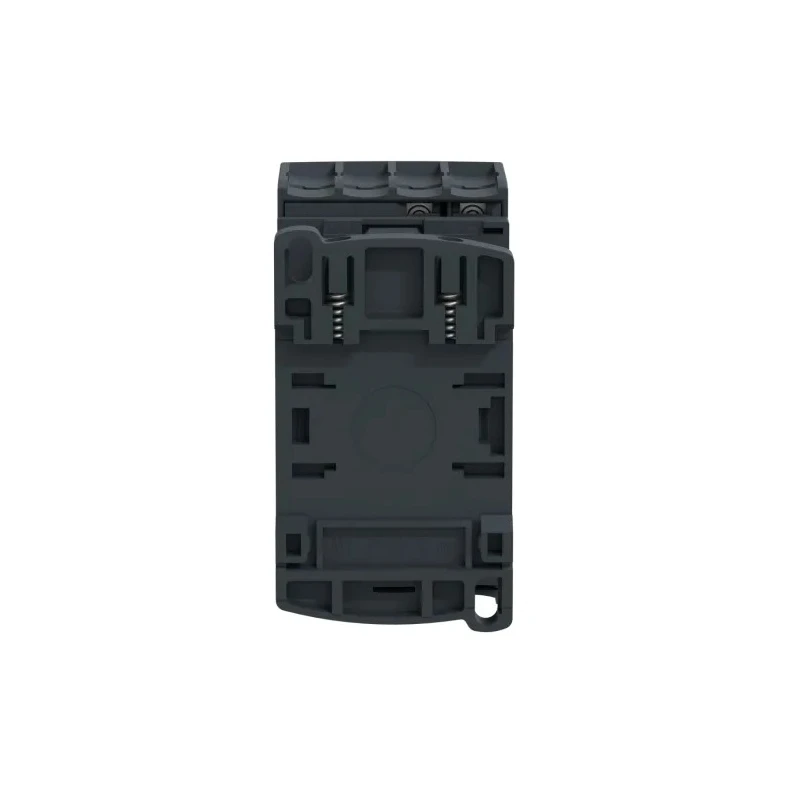

The contactor is designed for flexible installation using plate or rail mounting with screw clamp terminals that ensure secure and reliable conductor connections. The device operates efficiently with a coil power consumption of 1.56W at 48V AC and supports a control circuit voltage of 48V AC.

Its mechanical dimensions of 85mm length, 45mm width, and 90mm depth allow for compact mounting in panels, while its operating temperature range from -5°C to 60°C ensures reliable operation in various industrial environments. The contactor also exhibits tolerance to transient fault currents with a short-time withstand rating from 30A for 10 minutes up to 210A for 1 second.

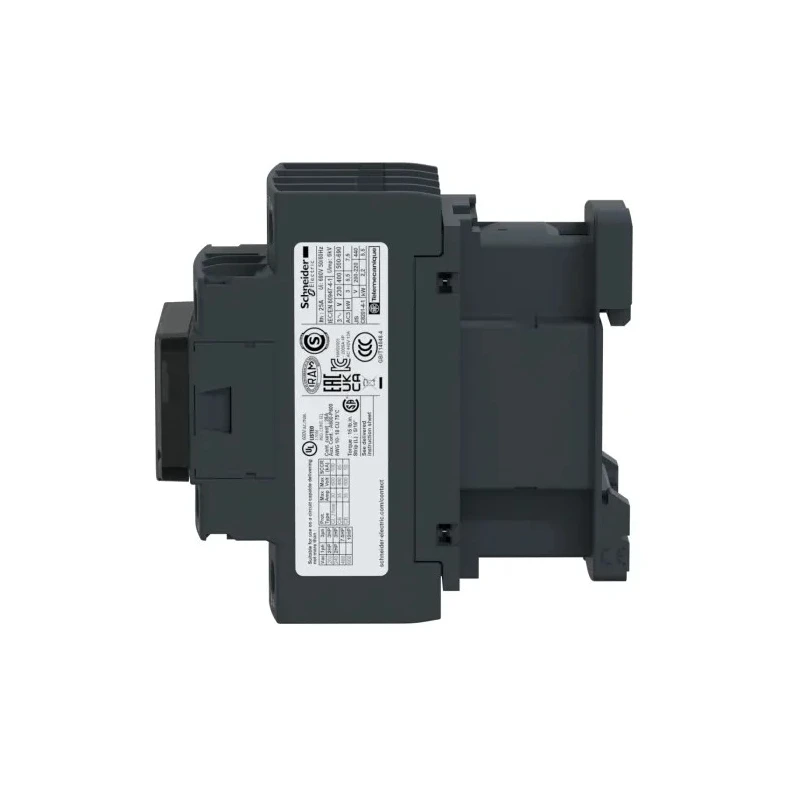

Schneider Electric LC1DT25E7 meets major international standards including IEC, EAC, CCC, CSA, UL, and RoHS, endorsing both quality and sustainability. It is part of the LC1D series designed for easy disassembly and energy-efficient operation as part of Schneider Electric's Better World initiative.

Equipped with a 48V AC coil suitable for common control voltages. Features 4 normally open (NO) power poles for multi-phase switching. Capable of handling an operational current of 25 amperes. Includes 1 NO and 1 NC auxiliary contact for signaling versatility.

Mounts on plate or rail offering flexible panel installation options. Designed with screw clamp terminals for secure conductor connections. Compact dimensions measure 85mm length, 45mm width, and 90mm depth. Operational temperature range from -5°C to 60°C ensuring reliable performance.

Complies with IEC, EAC, CCC, CSA, UL, and RoHS standards. Energy-efficient coil power rating of 1.56 watts at 48V AC coil voltage.

This contactor is suitable for industrial motor starters, heater control systems, and automation logic circuits requiring reliable 4-pole switching. It supports resistive loads and motor control functions across a variety of manufacturing, industrial automation, and electrical system applications. Discover more Contactors and automation gear at EnvMart.
