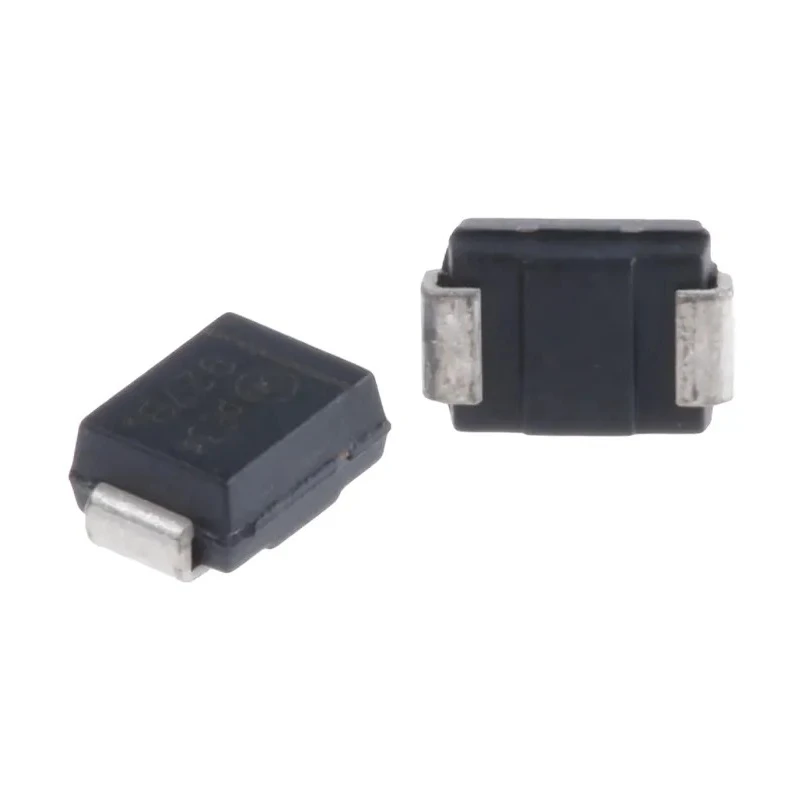

onsemi 12 V Zener Diode Single 550 mW 5% Surface Mount DO-214AA 1SMB5927BT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.47mm |
| Length | 5.6mm |
| Model | 1SMB5927BT3G |
| Mount Type | Surface |
| Series | 1SMB59 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 550mW |
| Diode Configuration | Single |
| Test Current It | 31.2mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 12V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 6.5Ω |
Key Features
- Diode configuration is single element.
- Nominal Zener voltage is 12 volts with ±5% tolerance.
- Maximum power dissipation is 550 milliwatts.
- Surface mount package type DO-214AA ensures easy PCB assembly.
- Test current for Zener operation is 31.2 mA.
- Maximum Zener impedance is 6.5 ohms for stable voltage regulation.
- Maximum reverse leakage current is very low at 1 microampere.
- Operating temperature range is -65°C to 150°C suitable for harsh environments.
Product Description
onsemi 1SMB5927BT3G is a surface mount Zener Diode designed as a voltage regulator with a nominal Zener voltage of 12 V and a maximum power dissipation of 550 mW.
This device features a single diode configuration packaged in the DO-214AA surface mount footprint, ideal for compact electronic assemblies requiring stable voltage reference or regulation functions.
It operates reliably over a wide temperature range from -65°C to 150°C, making it suitable for industrial, automotive, and consumer electronics applications.
The 1SMB5927BT3G has a low maximum reverse leakage current of 1 microampere and Zener impedance of 6.5 ohms at a test current of 31.2 mA, ensuring efficient voltage regulation with minimal power loss.
This diode conforms to RoHS guidelines and meets the AEC-Q101 automotive standard, highlighting its suitability for high reliability applications in automotive electronics. Single-element diode configuration for voltage regulation.
Standard 2-pin DO-214AA surface mount package for efficient PCB layout. Nominal Zener voltage of 12 V with ±5% tolerance ensures precise voltage clamping. Maximum power dissipation of 550 mW supports moderate load conditions.
Wide operating temperature range suited for harsh environmental conditions. Certified to RoHS for environmental compliance. Meets Automotive AEC-Q101 standard for automotive-grade reliability.
This product is ideal for use in industrial electronics, power management circuits, automotive electronic control units, and consumer devices requiring voltage stabilization and transient voltage suppression.
Explore a wide range of semiconductor components at EnvMart for your next electronic design and maintenance projects.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 12 volts with a tolerance of ±5%.
This diode has a maximum power dissipation of 550 milliwatts.
It operates within a temperature range of -65°C to 150°C, making it suitable for harsh environments.
The maximum reverse leakage current is very low at 1 microampere.
The maximum Zener impedance is 6.5 ohms at a test current of 31.2 mA.
It is packaged in a standard DO-214AA surface mount package, which is suitable for efficient PCB layout.
This model features a single-element diode configuration.
It meets the AEC-Q101 automotive standard, indicating its reliability for automotive applications.
Yes, it conforms to RoHS guidelines for environmental compliance.
The height of this diode is 2.47 mm and the length is 5.6 mm.
It is ideal for use in voltage stabilization, transient voltage suppression, and power management circuits in various electronic devices.
The test current for Zener operation is 31.2 mA.
