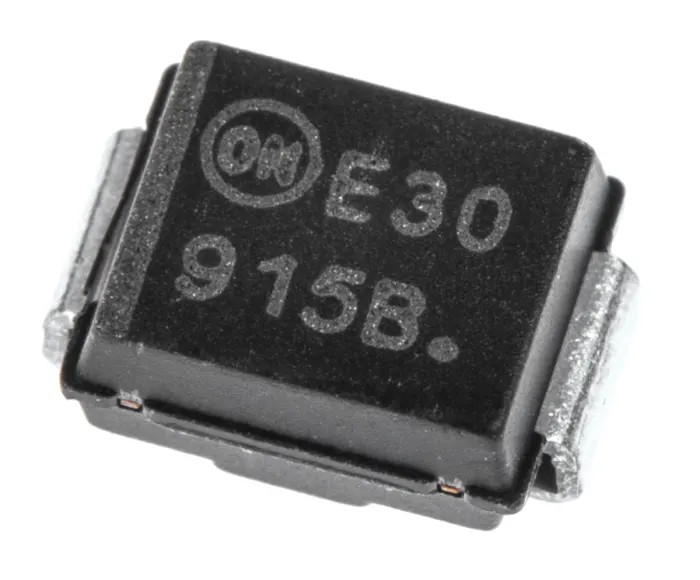

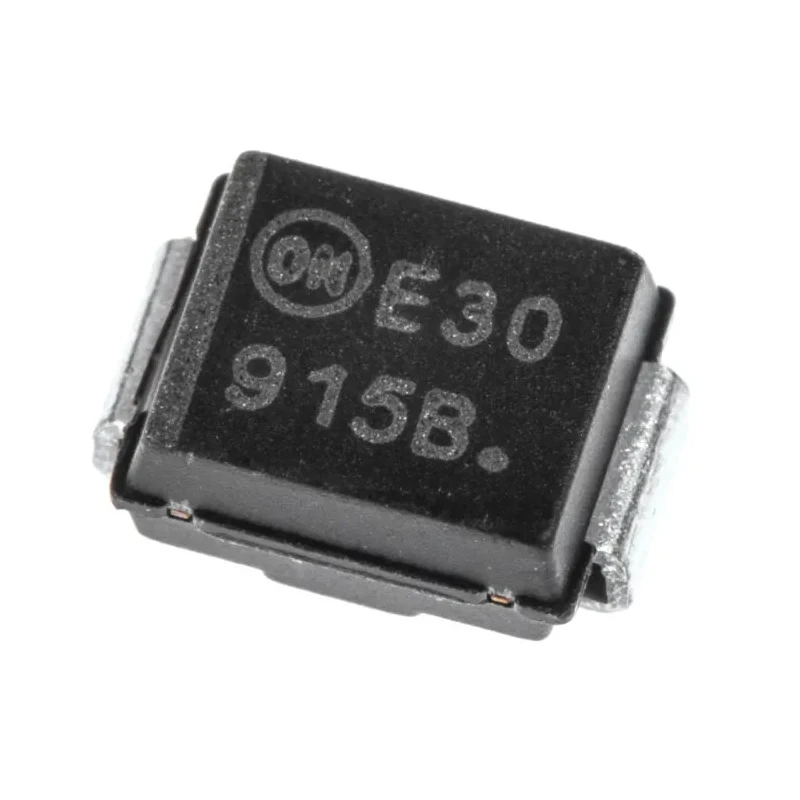

onsemi 3.9 V Zener Diode, Single, 550 mW Power Dissipation, Surface Mount, 2-Pin DO-214AA Package 1SMB5915BT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.47mm |
| Length | 5.6mm |
| Model | 1SMB5915BT3G |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 550mW |
| Diode Configuration | Single |
| Test Current It | 96.1mA |
| Maximum Reverse Leakage Current | 25μA |
| Nominal Zener Voltage Vz | 3.9V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 7.5Ω |
Key Features
- Nominal Zener voltage of 3.9 V ensuring stable voltage regulation.
- Maximum power dissipation of 550 mW supports reliable operation under load.
- Surface mount package type DO-214AA with 2 pins for compact PCB integration.
- Operating temperature range from -65°C to 150°C for versatile industrial use.
- Maximum reverse leakage current of 25 μA enhances diode efficiency and reliability.
- Test current is 96.1 mA providing reference operating condition.
- Maximum Zener impedance of 7.5 Ω ensures minimal voltage variation under load changes.
- Compliance with RoHS and automotive standard AEC-Q101 guarantees quality and environmental adherence.
Product Description
onsemi 1SMB5915BT3G is a new single Zener diode designed for voltage regulation within electronic and industrial circuits. It features a nominal Zener voltage of 3.9 V and is capable of dissipating up to 550 mW of power. This diode is surface-mounted with a TO-214AA package offering compactness and ease of PCB integration. It has 2 pins suitable for automated assembly.
It operates reliably over a wide temperature range from -65°C up to 150°C, making it suitable for use in harsh automotive and industrial environments. The diode has a maximum reverse leakage current rated at 25 μA, helping to ensure minimal power loss and enhanced performance. With a Zener impedance of 7.5 Ω max and a test current of 96.1 mA, it delivers stable voltage regulation suitable for sensitive electronics.
The package dimensions of 2.47 mm height and 5.6 mm length provide precise mechanical specifications for integration into compact boards. This diode complies with RoHS directives and meets the automotive standard AEC-Q101 for high reliability in automotive applications.
Nominal Zener voltage: 3.9 V for precise voltage regulation. Maximum power dissipation: 550 mW for continuous operation. Surface mount DO-214AA package with 2-pin configuration. Extended operating temperature range of -65°C to 150°C for demanding environments.
Low maximum reverse leakage current of 25 μA reduces power loss. Test current rating of 96.1 mA ensures proper functionality. Maximum Zener impedance of 7.5 Ω for stable voltage performance. Meets RoHS and AEC-Q101 automotive quality standards.
Dimensions: 2.47 mm height, 5.6 mm length for compact designs.
This Zener diode is ideal for industrial, automotive, laboratory, and electronics manufacturing applications requiring reliable voltage regulation and protection. It is suitable for use in power supplies, electronic instrumentation, and embedded circuits.
Explore more Zener Diodes and electronic components within the Electronics & Electricals category at EnvMart for your technical and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 3.9 V, ensuring stable voltage regulation.
This model has a maximum power dissipation of 550 mW, supporting reliable operation under load.
It comes in a surface mount DO-214AA package with a 2-pin configuration for compact PCB integration.
The operating temperature range is from -65°C to 150°C, making it suitable for harsh environments.
The maximum reverse leakage current is rated at 25 μA, which enhances diode efficiency and reliability.
The test current for this Zener diode is 96.1 mA, providing a reference operating condition.
The maximum Zener impedance is 7.5 Ω, ensuring minimal voltage variation under load changes.
It complies with RoHS directives and meets the automotive standard AEC-Q101, ensuring quality and environmental adherence.
The dimensions of this model are 2.47 mm in height and 5.6 mm in length, suitable for compact designs.
This diode is suitable for industrial, automotive, laboratory, and electronics manufacturing applications requiring reliable voltage regulation.
This model has a single element per chip, designed for voltage regulation.
The configuration of this diode is single, specifically designed for voltage regulation purposes.
