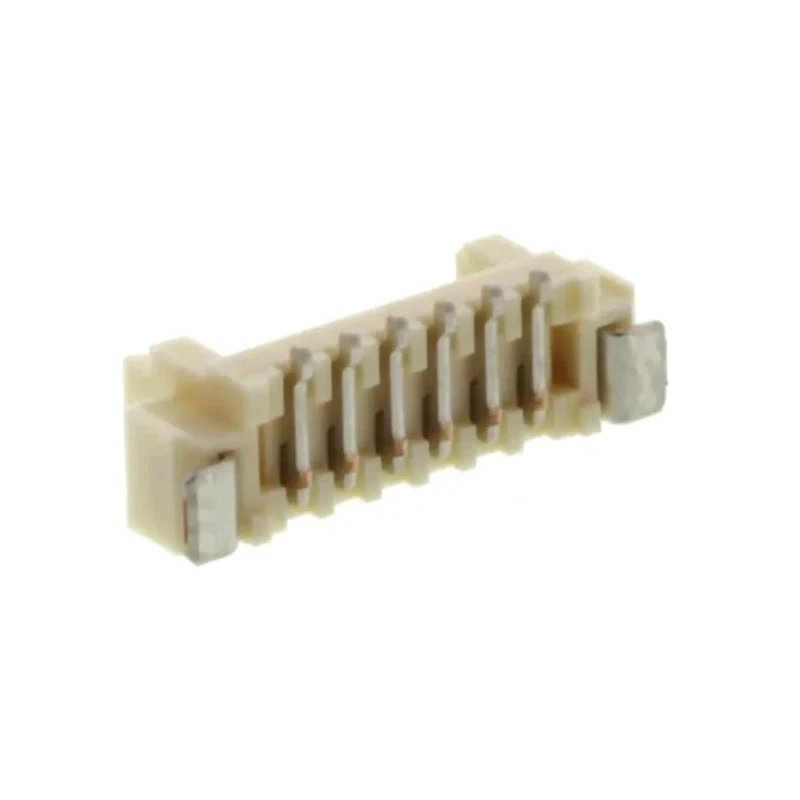

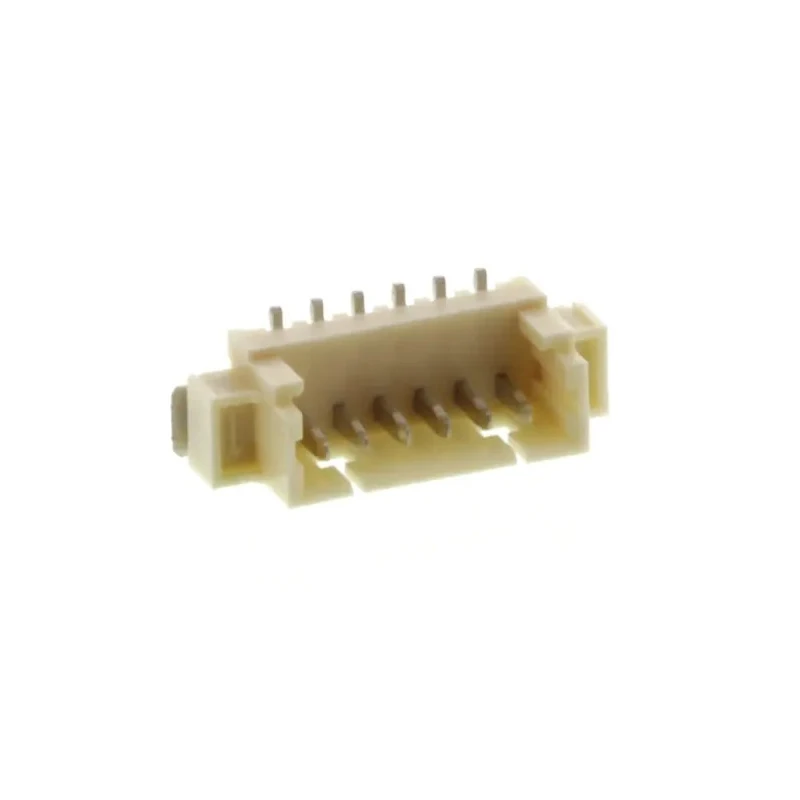

Molex 53398 Series Straight Surface PCB Header 6 Contact(s) 1.25 mm Pitch 1 Row Shrouded 53398-0671

Molex 53398-0671 is a straight surface mount PCB header featuring 6 male contacts arranged in a single row with a 1.25 mm pitch. Constructed with a nylon housing and phosphor bronze contacts plated with tin, this shrouded header offers reliable and durable electrical connections for demanding industrial and commercial applications.

Operating across a temperature range from -40°C up to 105°C, it supports a current rating of 1 Amp per contact and a maximum voltage of 125 V, making it ideal for signaling networks, telecommunications infrastructure, and process control devices. The compact pitch design reduces PCB footprint, delivering up to 45% space savings compared to standard 2.00 mm pitch connectors.

The PicoBlade system of the header uses dual contact points to ensure a firm, vibration-resistant connection. The solder termination and tail pin length of 0.6 mm ensure strong retention and strain relief on the PCB. This connector is rated for a minimum of 30 mating cycles, providing durability and long service life.

The shrouded housing prevents misalignment and protects contacts from mechanical damage. Its ultra-lightweight profile (~214.7 mg) reduces mechanical strain on connected circuitry. This header is widely used in industrial electronics, laboratory instrumentation, telecommunications, and other commercial electronics requiring compact and robust interconnect solutions.

Compact 1.25 mm pitch with 6 contacts in one row for PCB space efficiency. Phosphor bronze male contacts with tin plating for reliable signal integrity. Nylon shrouded housing for contact protection and alignment. Surface mounting type suitable for modern PCB assembly.

Operating temperature from -40°C to 105°C supports harsh conditions. Rated for 1 Amp current per contact and 125 V maximum voltage. Durable design with 30+ mating cycles capability. Lightweight design to minimize mechanical stress on circuitry.

Ideal for use in telecommunications, signaling networks, and process control.
