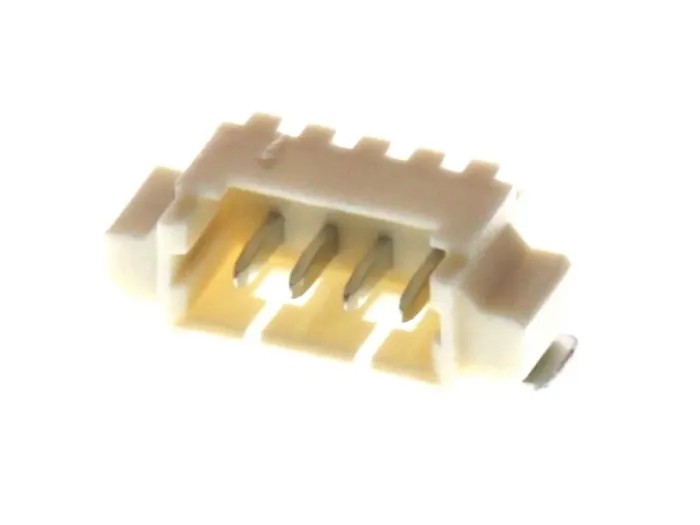

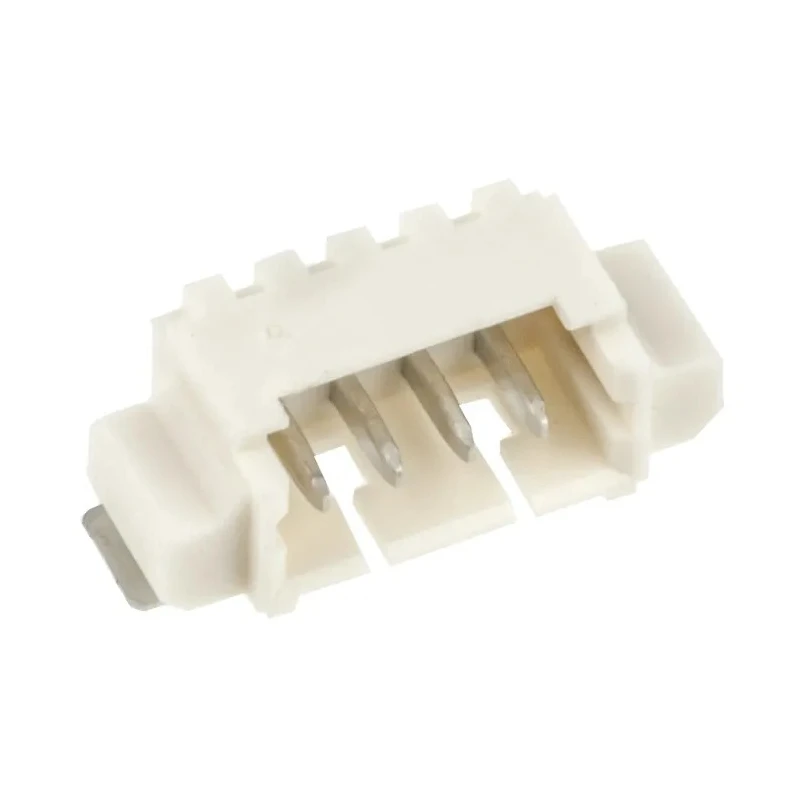

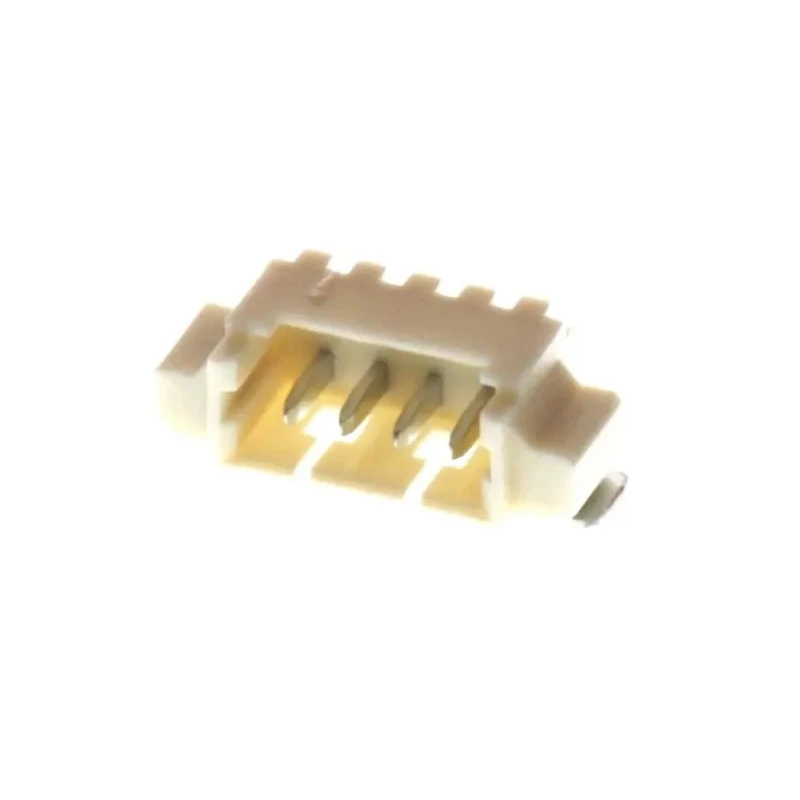

Molex PicoBlade Series Right Angle Surface PCB Header, 4 Contact 1 Row 1.25 mm Pitch 125V 1A Shrouded 53261-0471
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a compact 1.25 mm pitch design optimized for PCB space savings.
- Right angle orientation enables fitting in tight or awkward spaces efficiently.
- Shrouded thermoplastic housing protects contacts and reduces interference.
- Corrosion-resistant tin-plated phosphor bronze contacts ensure durability.
- Supports up to 1A current and 125V voltage for low power electronic devices.
- Solder termination ensures secure mounting and reliable electrical connection.
- Thermoplastic housing withstands operating temperatures from -40°C to 105°C.
- Friction locking mechanism prevents disconnection from vibration or mishandling.
Product Description
Molex 53261-0471 PicoBlade Series Right Angle Surface PCB Header is designed for efficient wire-to-board connections with a compact 1.25 mm pitch, 4 contacts in a single row. This shrouded header features a right angle orientation, allowing it to fit comfortably in tight spaces on printed circuit boards, ideal for modern compact electronic designs.
The header uses corrosion-resistant tin-plated phosphor bronze contacts ensuring long-lasting conductivity and resistance to environmental wear. The thermoplastic housing material excels in high-temperature environments withstanding up to 105°C and as low as -40°C, making it suitable for extreme temperature applications.
This PCB header provides a current rating of 1A per contact and supports voltages up to 125V, suitable for low power electronic circuits requiring reliable connections. The friction locking mechanism offers secure mating and prevents accidental disconnections caused by vibration or mishandling, enhancing connection stability in demanding environments.
Its solder termination style ensures secure and robust mounting on PCBs, improving mechanical strength and electrical performance. The shrouded housing protects the contacts from physical damage and interference, supporting high-quality signal transmission.
Common industrial use cases for this connector include security systems, telecommunication equipment, medical device manufacturing, and automotive electronics where reliable and compact connectors are critical.
Compact 1.25 mm pitch for PCB space savings. Right-angle design for spatial efficiency. Corrosion-resistant tin-plated phosphor bronze contacts. Thermoplastic housing supports wide temperature range (-40°C to 105°C). Friction locking mechanism prevents accidental disconnects.
Solder termination for strong PCB mounting. Shrouded design protects contacts and reduces interference. Supports 1A current and 125V voltage rating. Applications include security, medical, telecom, and automotive industries.
Explore the Molex brand collection and other PCB Header products at EnvMart to meet your electronic connectivity needs.
