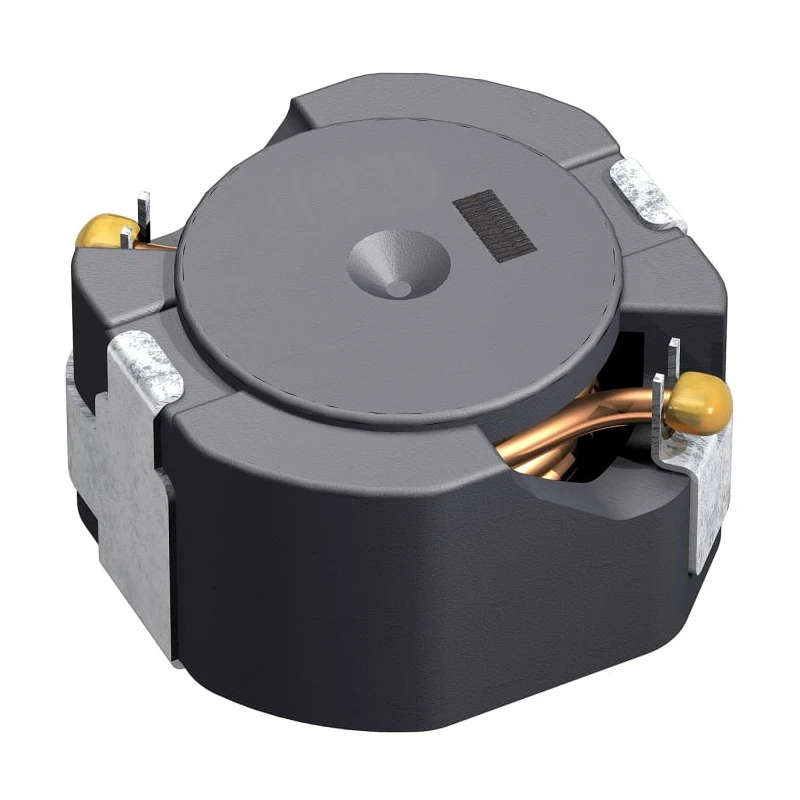

TDK Wirewound Surface Mount Inductor CLF7045NIT-4R7N-D, 4.7 μH ±30%, 4.1 A Idc, Ferrite Core, Shielded, 7045 Package
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 4.5mm |
| Length | 7.4mm |
| Model | CLF7045NIT-4R7N-D |
| Depth | 7mm |
| Packaging | Tape & Reel |
| Series | CLF-NI-D |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 7045 |
| Maximum DC Current | 4.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 18mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded design reduces electromagnetic interference.
- Rated for operation from -55°C to 150°C including self-temperature rise.
- Complies with AEC-Q200 automotive standard for reliability.
- Compact 7045 package dimensions of 7.4 mm length, 7 mm depth, and 4.5 mm height.
- Constructed with wirewound inductors and solder termination style.
- Halogen-free and lead-free solder compatible for environmental compliance.
- Maximum DC resistance of 18mΩ ensures low power loss.
- Suitable for automotive and industrial power circuits such as ABS, electronic power steering, and engine control modules.
Product Description
TDK CLF7045NIT-4R7N-D is a wirewound surface mount inductor with a ferrite core designed for efficient power management in automotive and industrial applications. This magnetically shielded inductor offers an inductance of 4.7 μH with a tolerance of ±30%, supporting a maximum DC current of 4.1 A. It operates reliably over a wide temperature range from -55°C to 150°C, including thermal self-rise.
The component features a compact 7045 package measuring 7.4 mm in length, 7 mm in depth, and 4.5 mm in height, with a 2-pin solder termination style that facilitates mounting on surface mount technology (SMT) circuits. Constructed from high-quality wirewound inductors with a ferrite core, it is shielded to reduce electromagnetic interference and is halogen-free and compatible with lead-free solder processes, meeting modern environmental standards.
Qualified under AEC-Q200 automotive standards, this inductor is suitable for rigorous power circuits in ABS systems, electronic power steering, engine control modules, automotive meters, and headlight modules. The low maximum DC resistance of 18 milliohms provides efficient power usage with minimal losses.
This surface mount inductor is essential for designs requiring high current handling and robustness in harsh temperature environments. Its reliable construction ensures excellent performance in industrial manufacturing, automotive electronics, and power supply regulation.
Magnetically shielded design reduces electromagnetic interference. Rated for operation from -55°C to 150°C including self-temperature rise. Complies with AEC-Q200 automotive standard for reliability. Compact 7045 package with precise dimensional specs for SMT assembly.
Constructed with wirewound inductors and solder termination style. Halogen-free and lead-free solder compatible for environmental compliance. Maximum DC resistance of 18 milliohms ensures low power loss. Applications include automotive ABS, power steering, engine control, and lighting systems.
Explore more Surface Mount Inductors and passive components at EnvMart for your next industrial and automotive project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 4.7 μH with a tolerance of ±30%.
The maximum DC current rating for this surface mount inductor is 4.1 A.
The dimensions of the 7045 package are 7.4 mm in length, 7 mm in depth, and 4.5 mm in height.
It operates reliably over a temperature range from -55°C to 150°C, including self-temperature rise.
This inductor uses a ferrite core material, which contributes to its performance characteristics.
Yes, it complies with the AEC-Q200 automotive standard for reliability.
The maximum DC resistance is 18 mΩ, ensuring low power loss during operation.
It features a solder termination style, suitable for surface mount technology (SMT) circuits.
The inductor is packaged in tape and reel format, facilitating easy handling and assembly.
It is suitable for automotive and industrial power circuits, including ABS, electronic power steering, and engine control modules.
Yes, it is halogen-free and compatible with lead-free solder processes, meeting modern environmental standards.
This model is constructed as a wirewound inductor, which enhances its performance in power management applications.
